Triconex 8312 Programmable Safety Controller Function

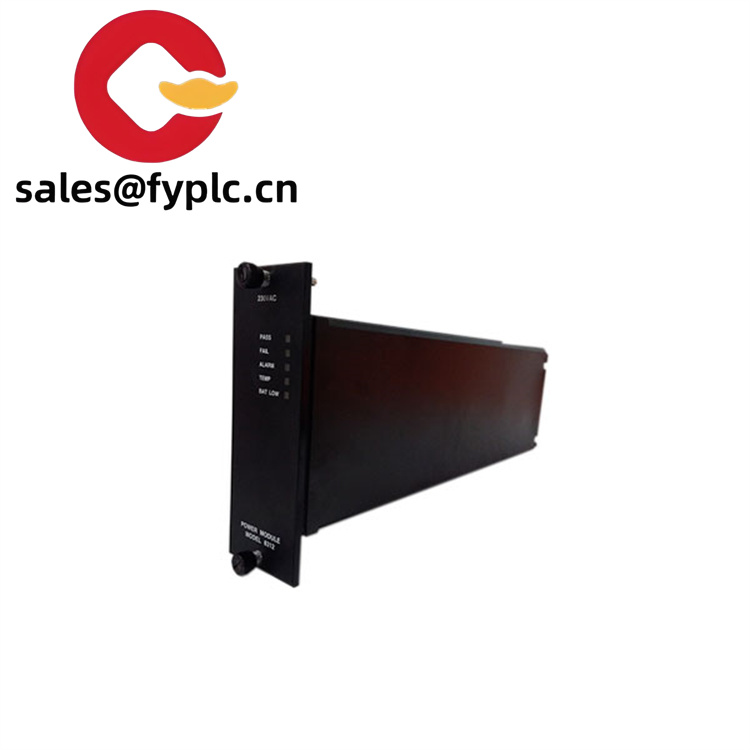

8312
Engineered to meet the most demanding requirements of industries where failure is not an option—such as oil & gas, chemical processing, and power generation—the 8312 is a triple modular redundant (TMR) controller designed to safeguard personnel, assets, and processes from catastrophic failures. As a cornerstone of Triconex’s safety instrumented systems (SIS), this controller combines cutting-edge hardware with advanced software to deliver unmatched fault tolerance and real-time control capabilities.
| Label |
Specification |
| Model Number |
8312 |
| Brand |
Triconex |
| Type |
Triple Modular Redundant (TMR) Safety Controller |
| Processor |
32-bit RISC microprocessor (triple-core architecture) |
| Memory |
8 MB RAM, 64 MB Flash |
| I/O Capacity |
Up to 384 DI/DO, 64 AI/AO |
| Communication Protocols |
Modbus RTU/TCP, Profibus DP, HART, Ethernet/IP |
| Power Supply |
24 V DC (dual redundant inputs) |
| Operating Temperature |
-40°C to 70°C (extended range for harsh environments) |
| Certifications |
IEC 61508 (SIL 3), IEC 61511 (SIS), ATEX, CSA, CE |
| Dimensions |
220 mm (H) × 150 mm (W) × 100 mm (D) |
| Weight |
2.5 kg |
| Redundancy |
Hot-swappable modules, dual power supplies |
The
Triconex 8312 incorporates advanced self-diagnostic features that continuously monitor each core and I/O channel for anomalies. Its built-in watchdog timers and parity checking detect hardware failures, while software diagnostics identify logic errors or communication disruptions. In a nuclear power plant, these features ensure that the controller can autonomously detect and isolate faulty components—such as a malfunctioning temperature sensor—before they compromise reactor safety, adhering to the strictest regulatory standards.

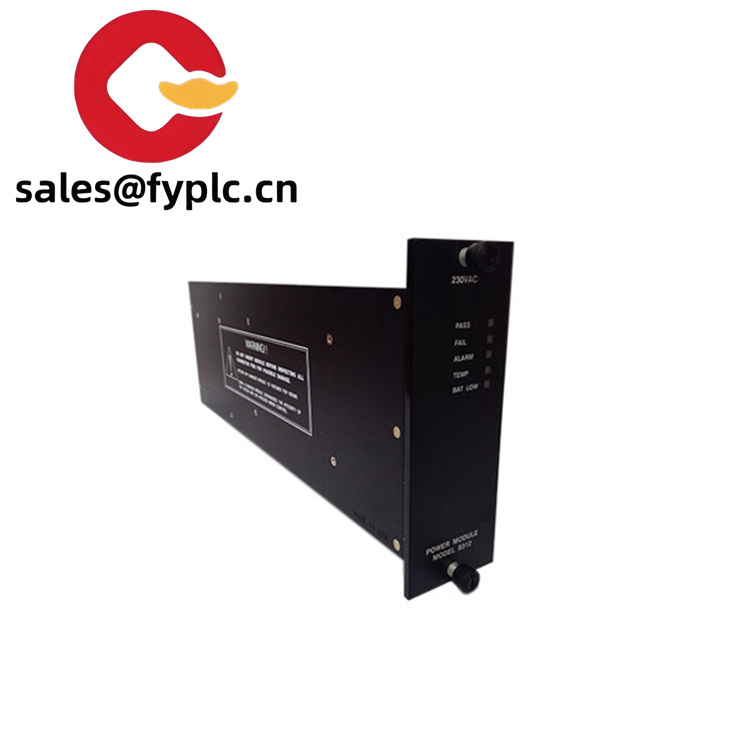

8312-2
With a deterministic execution cycle time of less than 10 ms, the 8312 ensures that safety-critical actions—like closing a valve or shutting down a compressor—are executed with precision and consistency. This is critical in high-speed processes, such as paper manufacturing, where delays in controlling web tension could lead to material waste or machine damage. The controller’s real-time operating system (RTOS) further guarantees that tasks are processed in strict priority order, preventing race conditions or latency issues.
Designed with industrial cybersecurity in mind, the
8312 supports encrypted communication protocols and secure firmware updates to protect against cyber threats. Its compliance with IEC 61508 (SIL 3) and IEC 61511 standards makes it suitable for safety instrumented systems in industries with stringent regulatory requirements, such as offshore oil platforms or chemical plants producing hazardous materials.
8312
In upstream oil production, the Triconex 8312 is deployed in wellhead control panels to monitor pressure, flow, and gas composition. Its TMR architecture ensures that even in the harsh offshore environment—characterized by saltwater corrosion, high vibrations, and extreme temperatures—the controller can reliably trigger blowout preventers (BOPs) or emergency shutdowns in the event of a well 失控 (well 失控). This capability has been proven to mitigate risks during drilling operations, where a single fault could lead to environmental disasters or loss of life.
For combined-cycle power plants, the
8312 manages turbine control and generator synchronization, ensuring stable power output while adhering to grid regulations. Its ability to handle mixed I/O types allows it to interface with both the digital signals from protective relays and the analog signals from turbine speed sensors. During load shedding events, the controller’s rapid response time ensures that critical equipment remains operational, preventing cascading failures across the grid.
