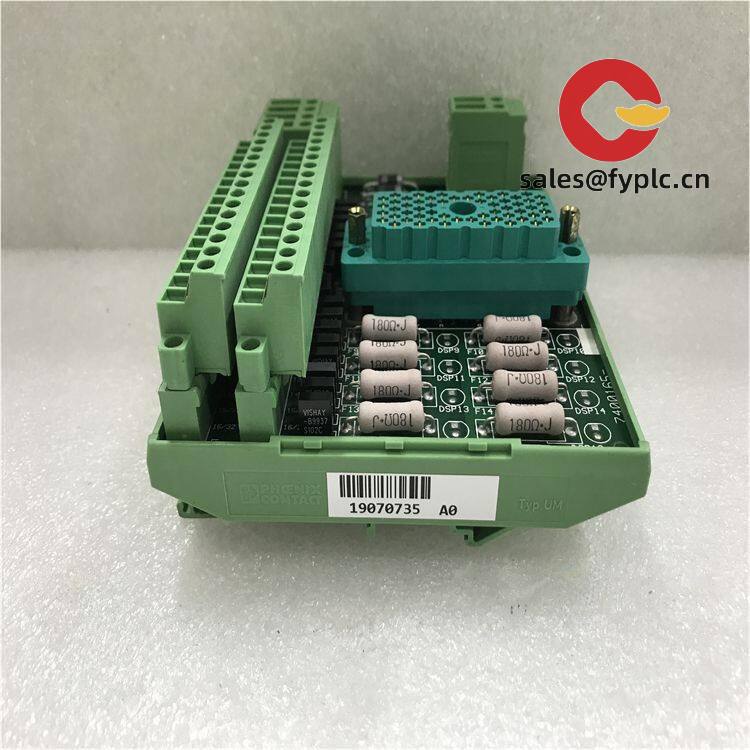

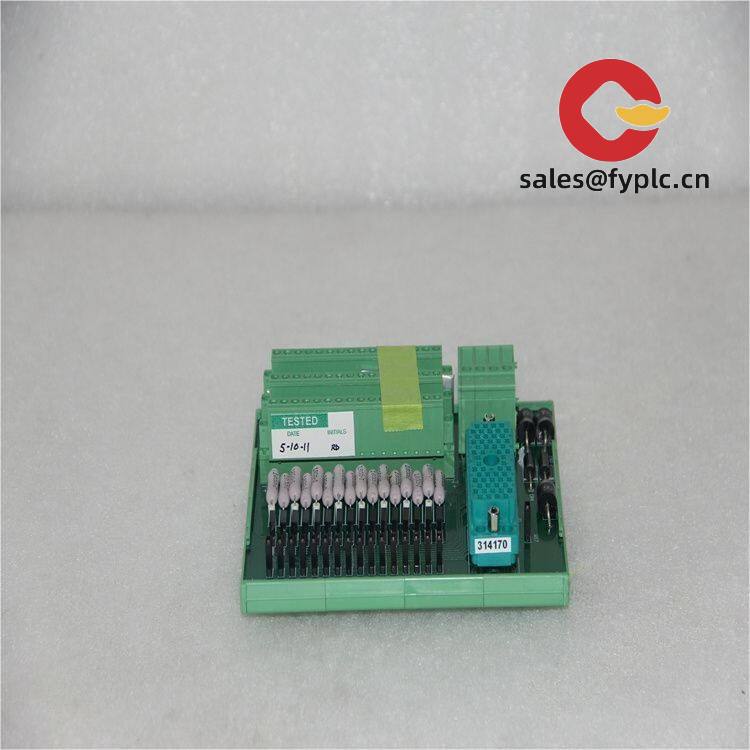

TRICONEX 9753-1 – TMR I/O Module for Tricon Safety Instrumented Systems
The TRICONEX 9753-1 sits within the Tricon triple-modular-redundant (TMR) safety platform, and it’s typically used as a high-integrity I/O module in process safety applications. From my experience, plants choose this series when they want deterministic behavior, continuous diagnostics, and the option to replace modules online without stopping the process. It seems to be a favorite in ESD/BMS cabinets where uptime and voting logic matter more than anything else.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days
- Delivery: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance payment; full payment before delivery
- Express Options: FedEx, UPS, DHL
One thing I appreciate is how straightforward the logistics are—most clients want a reliable lead time and a clear warranty, especially when the module will sit in a SIL-rated loop.
Key Features
- Triple-Modular Redundancy (TMR): Three parallel channels with voting help maintain safety integrity and availability.
- Online Replacement: In many cases, the module can be replaced under power following Tricon maintenance procedures, minimizing downtime.
- Comprehensive Diagnostics: Continuous self-checking typically detects latent faults and isolates failing paths quickly.
- System-Integrated: Works within the Tricon chassis and backplane; engineered via TriStation software at the controller level.
- Deterministic Response: Designed for safety-critical logic where predictable scan behavior matters.
- Field Termination Assemblies (TA): Wiring is routed through dedicated termination assemblies matched to the channel type, which keeps cabinet wiring tidy and maintainable.
Technical Specifications
| Brand / Model | TRICONEX 9753-1 |
|---|---|
| HS Code | 8538.90 (Parts suitable for apparatus of heading 8537) |
| Power Requirements | Supplied via Tricon system backplane (no separate front-end power) |
| Operating Temperature | Typically 0 to 60°C (32 to 140°F), non-condensing environment recommended |
| Signal I/O Types | Module family used for Tricon TMR I/O; the 9753-1 variant is commonly deployed in digital signal applications within the Tricon system (final channel specifics depend on the matched termination assembly). |
| Communication Interfaces | Tricon backplane interface; configuration and logic executed at the controller via TriStation. No external front-port comms on the module. |
| Installation Method | Single-slot plug-in for Tricon chassis; field wiring routed to TA/FTA terminals matched to the I/O type. |
Note: Detailed channel counts and electrical levels vary by the TA and project configuration; if you share your exact application, we can validate the module–terminal pairing before shipment.
Application Fields
- ESD systems in oil & gas, petrochemicals, and refining
- Boiler and burner management (BMS) in power generation
- Compressor and turbine protection skids
- High-integrity interlocks in pharmaceuticals and specialty chemicals
- Interfaces with F&G panels and process trip logic where TMR voting is required
A maintenance manager told us they chose this module series because it “just survives” plant upsets and still gives diagnostic clues when a leg drifts. That kind of practical resilience saves callouts during nights and weekends.
Advantages & Value
- Reliability: TMR architecture and diagnostics reduce spurious trips and help maintain SIL targets.
- Compatibility: Fits established Tricon systems, engineered through TriStation—no surprises at commissioning.
- Lifecycle Savings: Online replacement and clear fault isolation typically lower MTTR and spare usage.
- Supportability: We can cross-check the exact TA and wiring kit before dispatch to avoid rework on site.
Installation & Maintenance
- Cabinet & Environment: Install in a clean, ventilated control cabinet. Keep ambient within the rated temperature; avoid condensation.
- Wiring: Route field signals through the specified termination assembly. Maintain separation between low-voltage I/O and higher energy circuits.
- ESD & Safety: Use ESD protection; follow Tricon procedures if performing online replacement. Lock-out/tag-out field circuits when necessary.
- Proof Testing: In most cases, schedule periodic proof tests aligned to your SIF intervals to sustain SIL claims.
- Preventive Care: Check terminal tightness, clean dust with dry air, and keep firmware and controller configuration backed up.
You might notice that pairing the 9753-1 with the correct TA and any intrinsic safety barriers (in hazardous areas) keeps commissioning smooth and documentation tidy.
Quality & Certifications
- System Certification: Tricon platform is IEC 61508 SIL3-capable when engineered and installed per manufacturer guidelines.
- Conformity: Typically CE-marked and UL/cUL recognized at the system level; ISO 9001 manufacturing environment.
- Warranty: 365 days replacement warranty from shipment.
