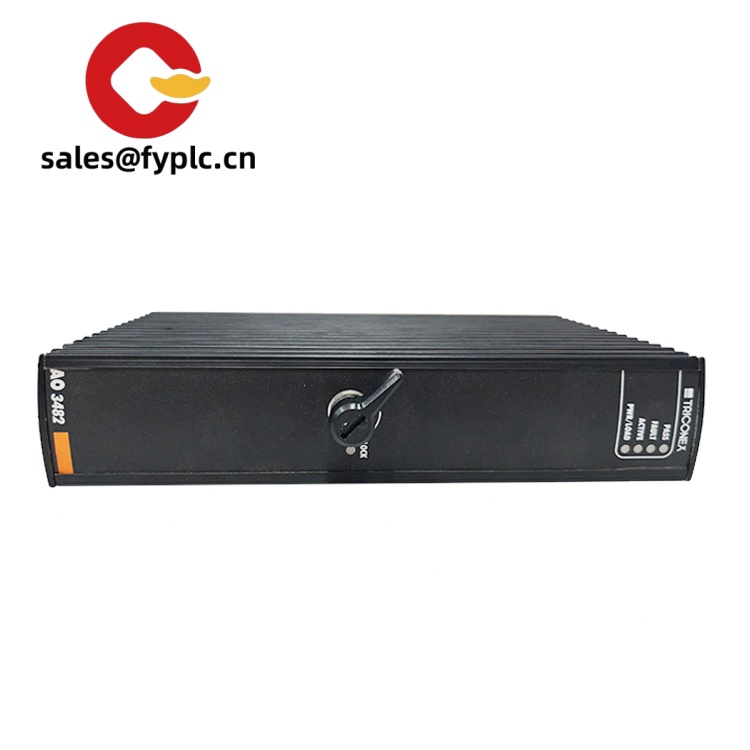

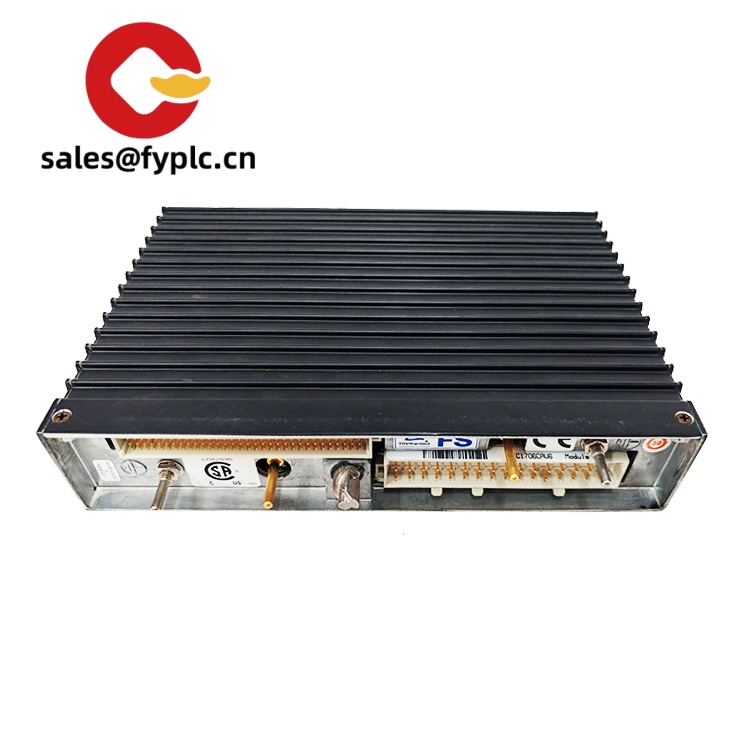

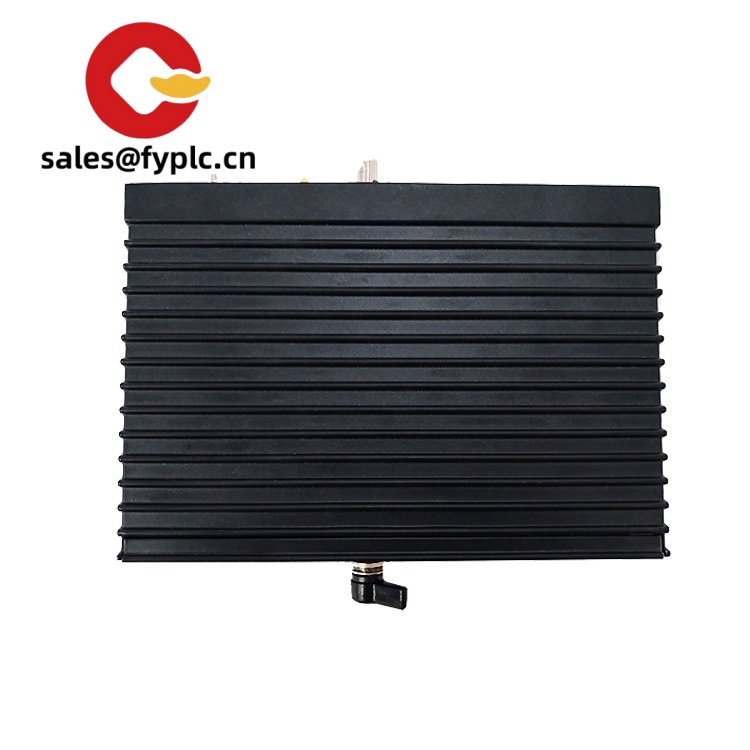

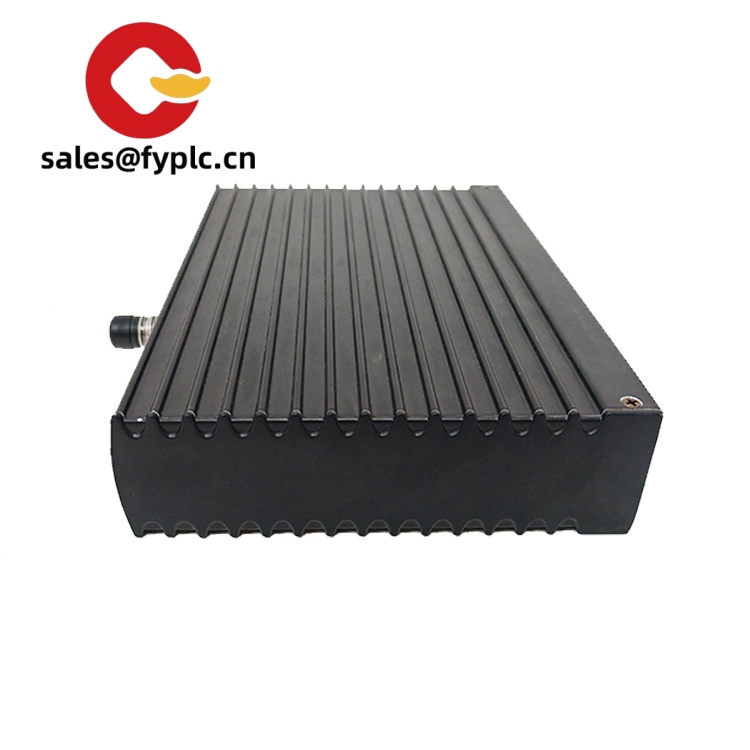

TRICONEX AO3482 – Safety‑grade Analog Output Module for Tricon Systems

The TRICONEX AO3482 is an analog output module designed for Tricon safety and control systems where deterministic performance and continuous diagnostics really matter. From my experience, it’s typically selected for 4–20 mA control of final elements—valves, dampers, variable‑speed drives—especially in ESD, BMS, and turbomachinery protection where you want clean current loops and predictable behavior under fault.

Company’s Order Placement Process and Guarantees

• – Warranty: 365 days

• – Delivery: 1 week if in stock; no more than one month latest

• – Payment: 50% advance; full payment prior to delivery

– Express options: FedEx, UPS, DHL

Key Features

• 4–20 mA analog outputs (sourcing) – Suited for control of valves, actuators, I/P converters and VFD analog references; stable current loops are the default choice in process safety.
• Tricon TMR backplane integration – Works within the Tricon fault‑tolerant architecture; you get continuous diagnostics and predictable voting behavior at the system level.
• Built‑in diagnostics – Open‑circuit/short‑circuit detection and loop health monitoring help maintenance teams find wiring issues faster.
• Isolation designed for industrial environments – Typically includes galvanic isolation between field channels and the backplane to reduce common‑mode noise and ground loops.
• No external power required – The module draws what it needs from the Tricon backplane, simplifying panel wiring and spares management.
• Field termination via dedicated TA – You can choose the appropriate Triconex termination assembly (TA) to match site wiring practices and any HART passthrough needs.
• Designed for continuous operation – In many cases, the AO3482 supports on‑line replacement under system procedures, minimizing downtime during maintenance.

Technical Specifications

Brand / Model	TRICONEX AO3482
HS Code	8538.90 (Parts for apparatus of 85.37; indicative, subject to destination customs)
Power Requirements	Via Tricon backplane; no external field supply to the module
Signal Output Types	Analog current outputs, typically 4–20 mA (sourcing); open/short detection; load range commonly specified for process loops
Communication Interfaces	Tricon TMR backplane interface; field I/O via dedicated termination assembly (TA)
Operating Temperature	Typically 0 to +60 °C (32 to 140 °F), depending on system configuration
Installation Method	Plug‑in I/O module for Tricon chassis; field wiring to the matched TA mounted at the cabinet side
Dimensions & Weight	Standard Triconex I/O card form factor; weight approx. 1.0 kg (indicative)

Application Fields

You’ll typically see the AO3482 in safety and critical control loops across:

• Emergency Shutdown (ESD) – Driving final elements and shutdown valves with verified 4–20 mA loops.
• Burner Management (BMS) – Modulating fuel valves and dampers with reliable current outputs.
• Compressor/Turbomachinery Control – Setpoint and demand signals to antisurge and speed controllers.
• HIPPS and SIS Loops – Where diagnostic coverage and predictable failure behavior are prioritized.
• Refining, Petrochemicals, LNG – General analog actuation in hazardous, high‑availability environments.

Advantages & Value

• Reliability first: Works within the Tricon TMR framework; faults are detected and handled gracefully in most cases.
• Compatibility: Matches Tricon termination assemblies and existing 4–20 mA infrastructure, so migrations are straightforward.
• Lifecycle cost savings: Fewer nuisance trips and faster loop troubleshooting thanks to onboard diagnostics.
• Flexible spares strategy: No external power feed, fewer part variants to hold, simpler logistics.
• Supportable in the field: Technicians can replace modules under controlled procedures with minimal outage windows.

One thing I appreciate is how consistent the loop behavior is across modules—commissioning teams usually report fewer re-calibrations after a swap. A refinery customer told us, “We replaced an AO card during running conditions; the diagnostics caught a miswired loop before startup, which saved a permit cycle.”

Installation & Maintenance

• Cabinet & environment: Install in a Tricon chassis within a clean, ventilated cabinet; maintain ambient temperature within the specified range.
• Wiring: Route 4–20 mA cables to the correct TA; use shielded twisted pairs; ground shields at one end to avoid ground loops.
• Segregation: Keep analog outputs away from high‑noise power cables; maintain separation from DO/DI bundles where possible.
• Safety: De-energize affected loops or follow hot‑swap procedures per plant MOC; verify loop polarity before re‑terming.
• Routine checks: Function‑test loops during planned outages; verify as‑found/as‑left values; clean dust from card guides and connectors.
• Firmware/config: Keep controller firmware and I/O configuration aligned with site standards; back up parameters after any change.
• Calibration: For analog endpoints (positioners, I/Ps), perform periodic calibration; the module output itself typically doesn’t require calibration.

Quality & Certifications

• CE and UL/CSA for industrial control equipment (module and/or system, depending on configuration)
• IEC 61508 SIL3 achievable as part of a certified Tricon system (TÜV certifications apply at system level)
• RoHS compliance for electronic components where applicable
• Manufacturer’s warranty: 12 months (365 days) from shipment

Supporting Components (Typical)

The AO3482 is used with compatible Tricon termination assemblies (TAs) for field wiring. Depending on your loop design, you may choose TA variants that support standard 4–20 mA or enable HART passthrough. We can help match the TA and any marshalling accessories to your cabinet layout.
