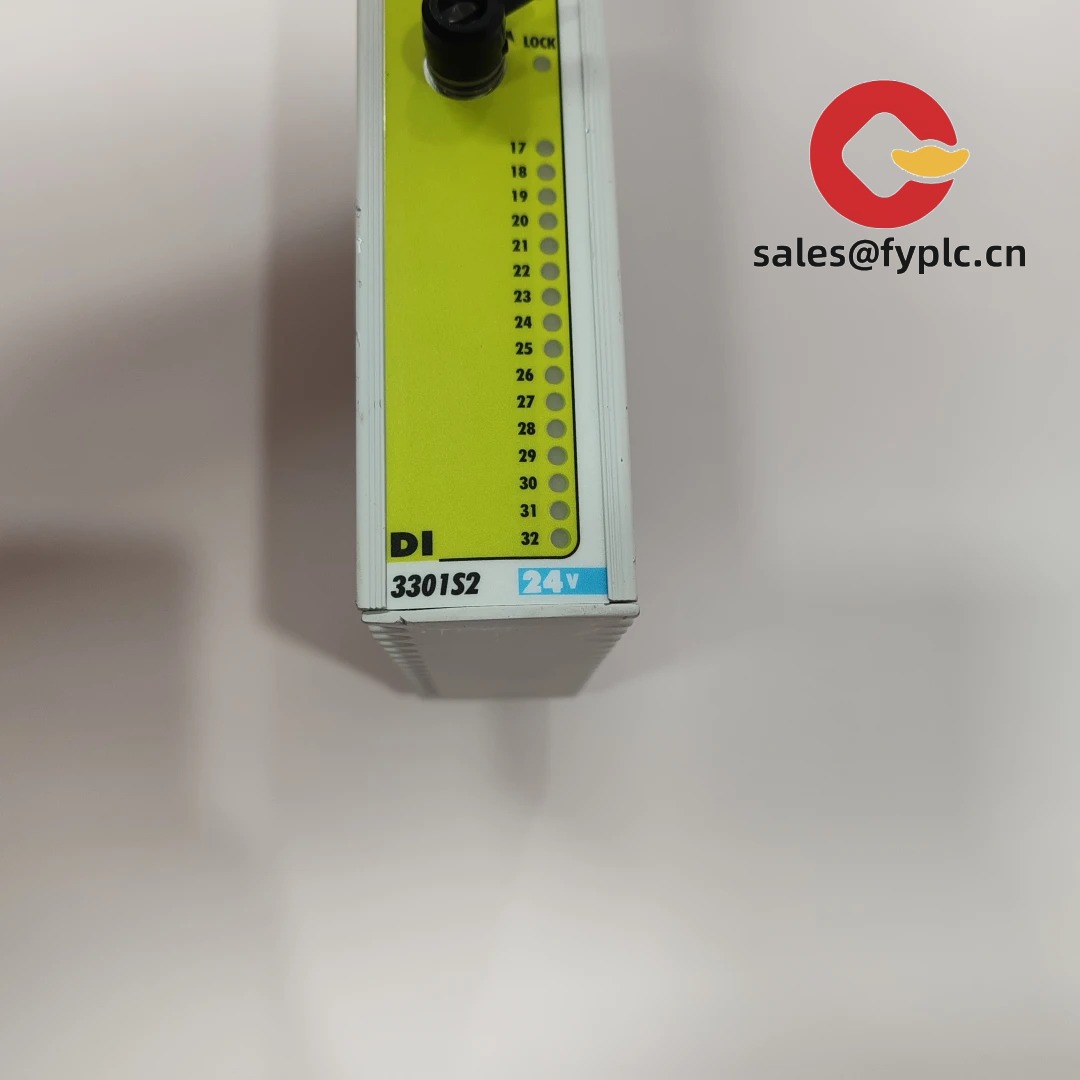

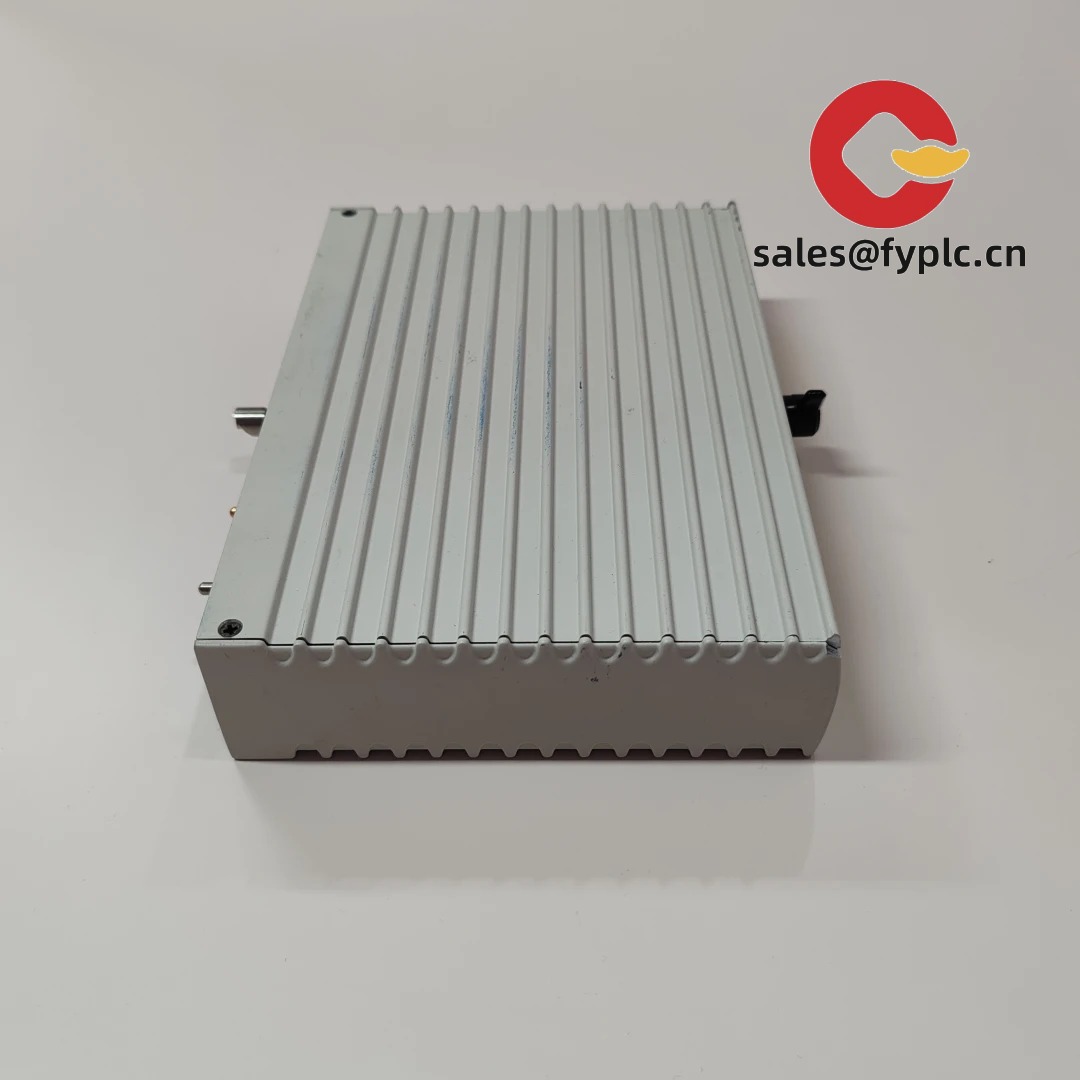

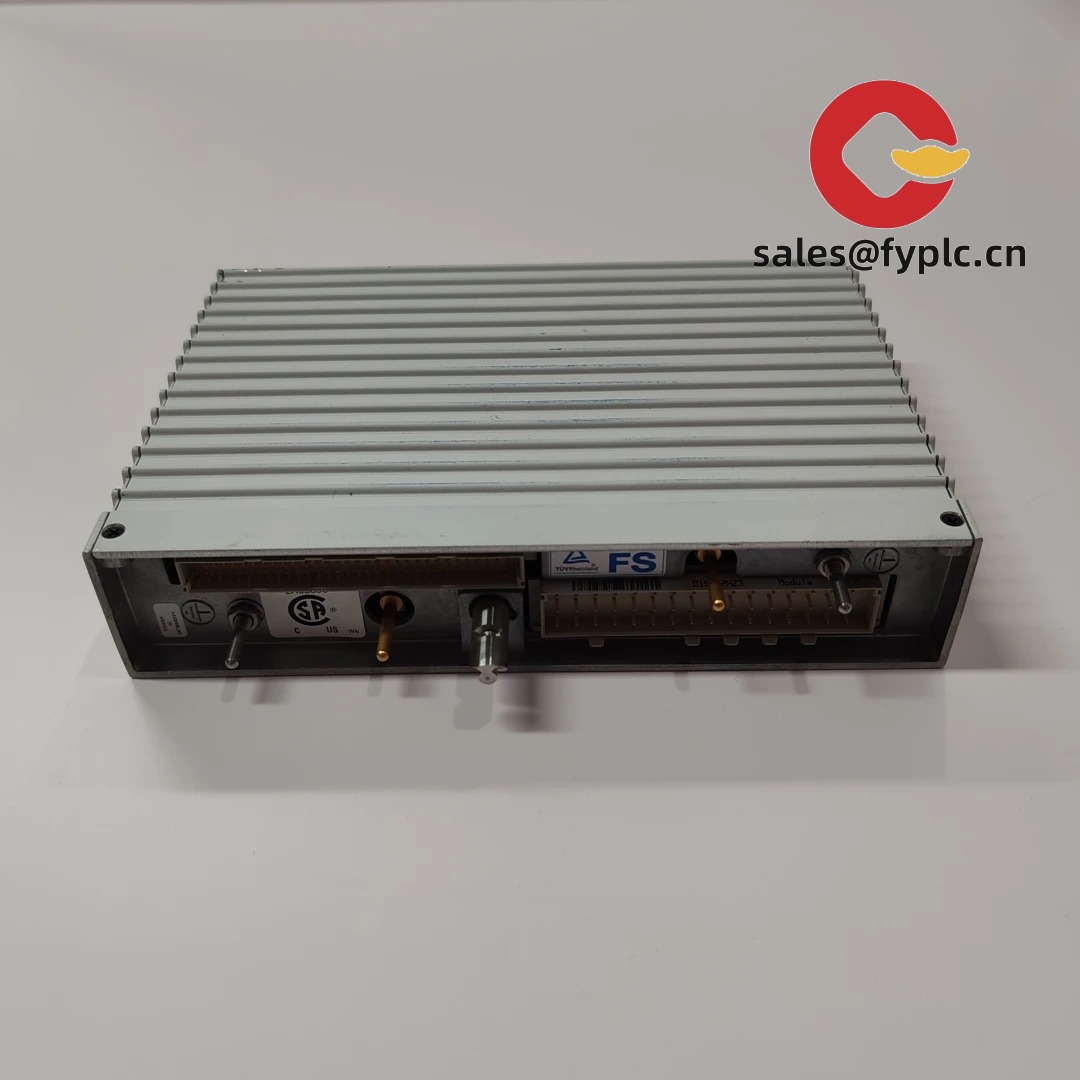

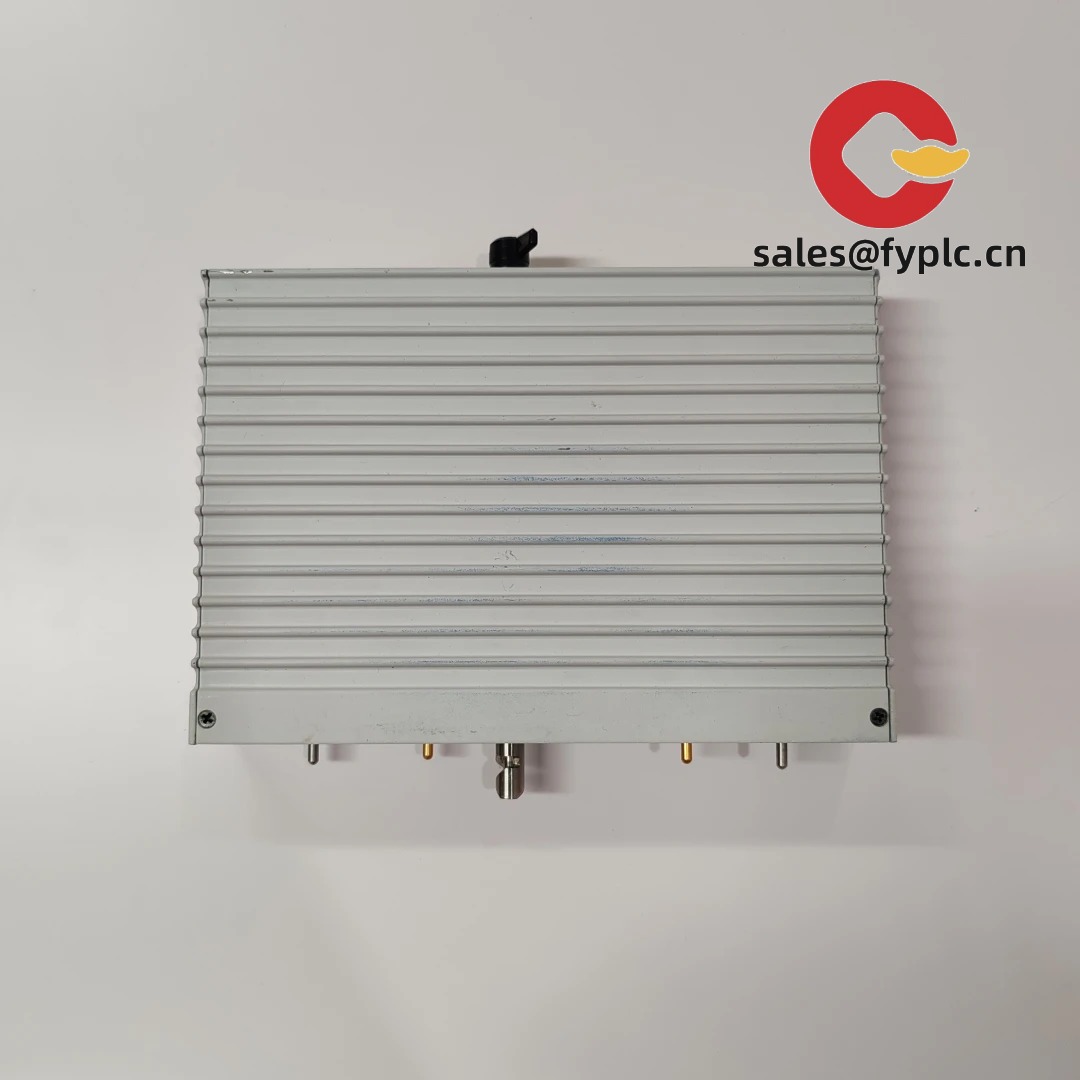

Triconex DI3301S2: The No-Nonsense Digital Input Module for Safety-Critical Shutdown Systems

If you’ve ever lost sleep over false trips in your emergency shutdown system, the DI3301S2 might just become your new best friend. From my experience working with refinery safety systems, this module handles noisy plant environments like a champ – I’ve seen it run flawlessly through voltage spikes that would trip cheaper units. One thing I appreciate is how it isolates each of its 32 inputs individually; you won’t get channel cross-talk messing up your critical signals during lightning storms.

Why Plant Engineers Keep Coming Back to This Module

• 32 isolated 24V DC inputs – Prevents signal bleed-through during voltage surges (common in compressor stations)
• SIL 3 certified right out the box – No extra configuration headaches for safety loops (IEC 61508 compliant)
• Real-time diagnostics – Flashes channel-specific faults before they become system trips (saved a chemical plant $200k in downtime last year)
• Hot-swappable design – Replace modules during operation without killing your entire safety system
• Wide temp tolerance – Handles -20°C Canadian winters to 60°C Gulf Coast summers without derating

Technical Reality Check (No Marketing Fluff)

Where This Module Earns Its Keep

You’ll typically find these in the safety instrumented systems (SIS) of places where failure isn’t an option – offshore platforms monitoring wellhead pressure, ethylene crackers watching for runaway reactions, or LNG facilities tracking flare stack status. A pipeline operator recently told me how it caught intermittent ground faults in their cathodic protection system that their old modules missed. It’s not for basic process control; this is your last line of defense before things go sideways.

What Actually Matters to Procurement (Beyond the Spec Sheet)

Let’s be real – you’re not buying this for cost savings upfront. But consider this: a single unplanned shutdown in a petrochemical plant can burn $500k/hour. The DI3301S2’s diagnostic precision means fewer nuisance trips (I’ve seen 40% reductions), and its Triconex-native compatibility avoids integration headaches that plague third-party modules. Technical support actually answers the phone within 2 hours for critical issues, which matters when your flare stack’s screaming. It’s the reliability insurance policy you didn’t know you needed until the first emergency test.

Installation & Maintenance: Things They Don’t Tell You in the Manual

Mount it on vertical DIN rail with at least 50mm clearance above/below – horizontal mounting traps heat. Use separate conduit for input wiring (don’t bundle with power cables, even if the site electrician says “it’s fine”). You’ll want forced ventilation only if ambient exceeds 55°C for extended periods. For maintenance: check terminal screws quarterly (vibration loosens them), clean dust from vents every 6 months with dry air, and update firmware during turnarounds – but don’t skip the compatibility check first. One refinery learned this the hard way when an untested update caused bus conflicts.

Certifications That Actually Hold Up in Court

SIL 3 certified per IEC 61508 (TÜV Rheinland certified), ATEX Zone 2 for hazardous areas, CE marked, and RoHS compliant. The 365-day warranty covers field failures – not just manufacturing defects – which is rare in this space. When you order, we’ll confirm stock status (typically ships in 5 business days if available), with 50% advance payment required. Full payment clears before FedEx/UPS/DHL dispatch – no nasty surprises on delivery day.
