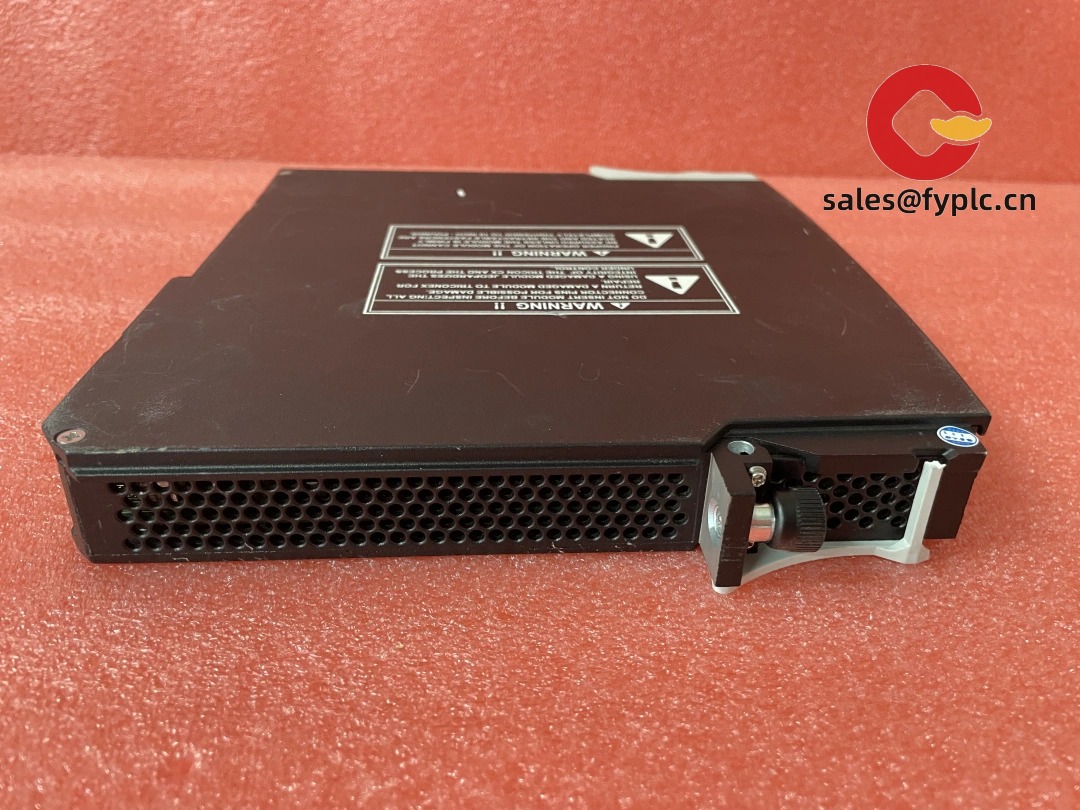

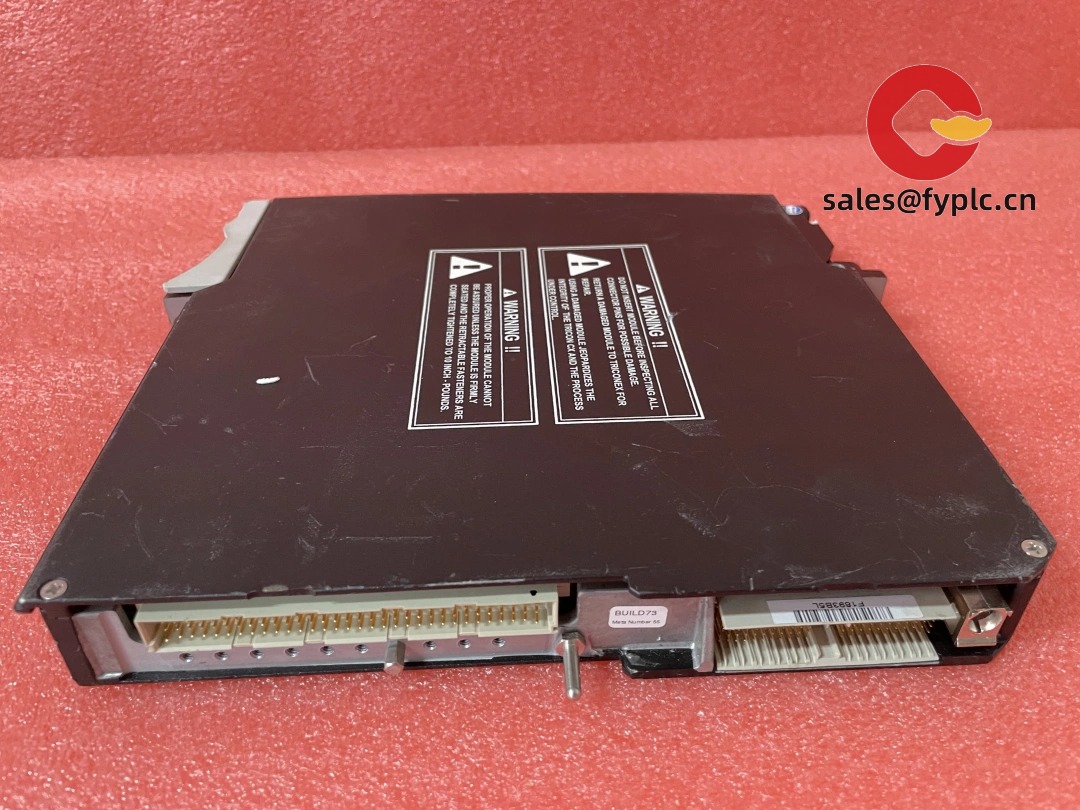

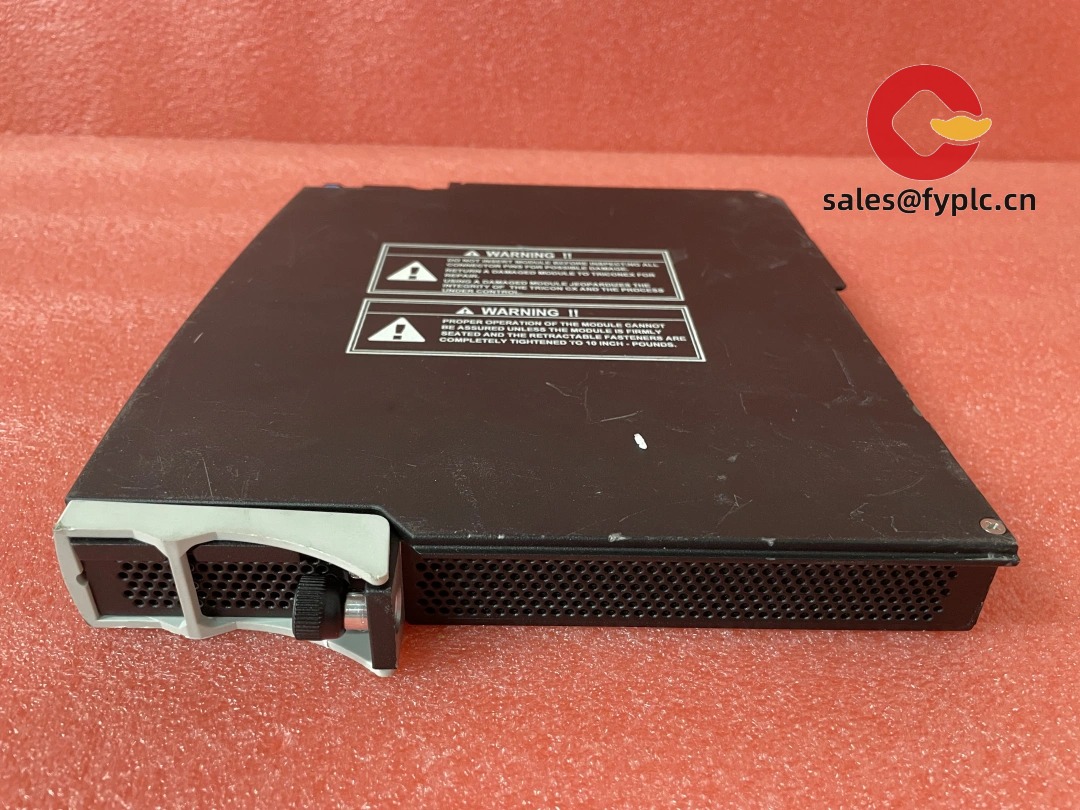

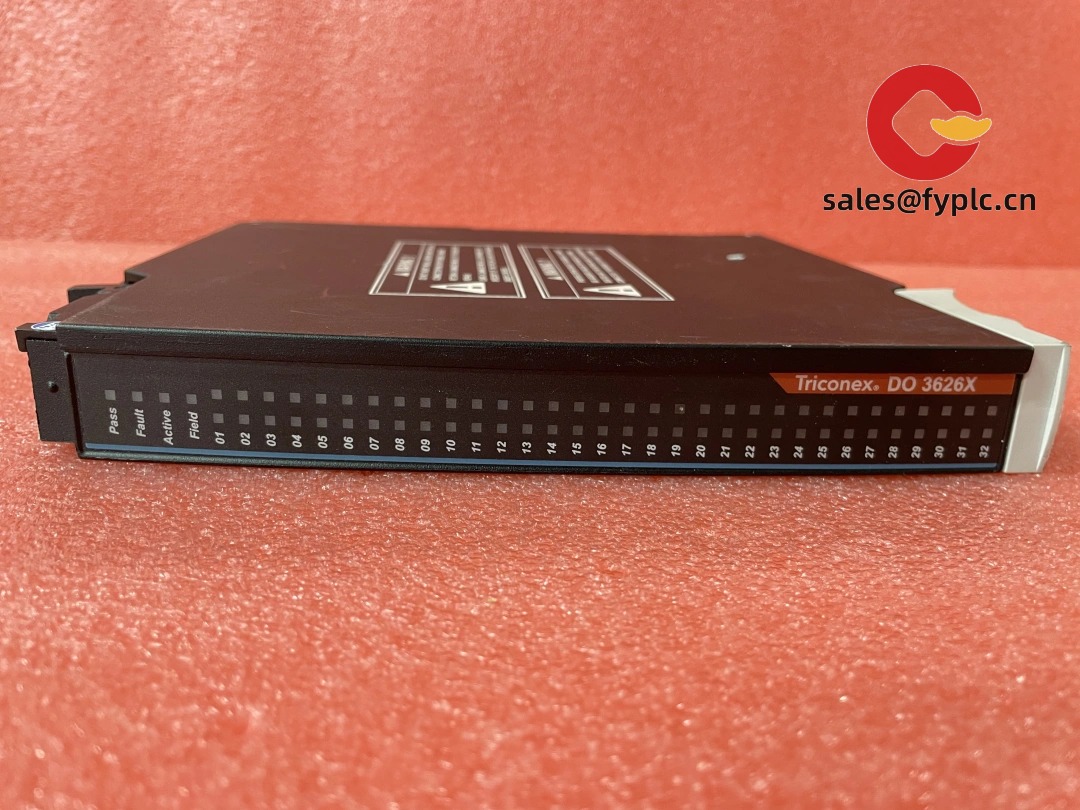

Triconex DO-3626X — High-Integrity Digital Output Module for Safety-Critical Shutdown Systems

One thing I appreciate is how the DO-3626X fits into Triconex’s legacy of triple-modular-redundant (TMR) architecture — not just as another output card, but as a hardened, field-proven component that’s been deployed in refineries, chemical plants, and offshore platforms for over a decade. It’s not flashy, but it’s the kind of module engineers quietly rely on when a valve actuation or emergency stop command must execute — every time.

Key Features

• True TMR digital output — Three independent channels vote on each output state, eliminating single-point failures. From my experience, this matters most during partial faults — say, when one channel drifts due to aging optocouplers while the other two maintain consensus.
• 24 VDC sink-type outputs (16 channels) — Rated for up to 100 mA per channel, with built-in short-circuit and overload protection. You might notice that many users pair these directly with solenoid valves or relay coils without external buffering — though we always recommend verifying coil inrush specs first.
• Integrated diagnostics & self-test — Continuously monitors open-circuit, short-to-ground, and cross-wire conditions. In practice, this cuts troubleshooting time significantly — especially during turnaround planning, where knowing whether a fault is in the module or field wiring changes your response entirely.
• Hot-swappable with firmware-aware replacement — Swapping a failed DO-3626X under power doesn’t require a full controller reboot. It appears that newer firmware versions (v5.2+) even retain last-known output states briefly during insertion — helpful in non-shutdown scenarios like maintenance mode.

Technical Specifications

Application Fields

This module shows up where failure isn’t an option — think burner management systems (BMS) in power plants, emergency shutdown (ESD) loops in LNG terminals, or fire & gas system outputs in petrochemical facilities. A customer in Rotterdam recently used 12 DO-3626X modules across two redundant Triconex controllers to drive isolation valves on a hydrogen compression skid. Their feedback? “No spurious trips in 22 months — and when a channel flagged ‘open load’, it was exactly the field connector we’d overlooked during commissioning.” That kind of diagnostic fidelity is why it still ships alongside newer models.

Advantages & Value

From a procurement standpoint, the DO-3626X delivers predictable value: compatibility with existing Triconex TMR infrastructure means no controller upgrades or revalidation overhead. Spare parts are widely available, and because it’s been around since ~2008, third-party calibration labs and certified integrators know its quirks — which translates to faster support resolution. While newer modules offer higher channel counts or integrated HART, the DO-3626X remains cost-effective for brownfield retrofits or smaller safety instrumented functions (SIFs) where simplicity and audit trail maturity matter more than bells and whistles.

Installation & Maintenance

Mount only in a Triconex-approved chassis with proper grounding (per ISA-RP12.6) and cabinet ventilation — ambient airflow should exceed 0.2 m/s near the module face. Avoid installing near high-EMI sources like VFDs unless shielded conduit is used for field wiring. For maintenance: inspect terminal screws annually (torque to 0.5 N·m), clean dust from heatsinks with dry air every 18 months, and update firmware only during scheduled outages — older versions (pre-v4.1) have known watchdog timing edge cases during cold starts. Calibration isn’t field-adjustable; it’s factory-set and verified at time of manufacture.

Quality & Certifications

The DO-3626X carries SIL 3 certification per IEC 61508:2010 (TÜV Rheinland Certificate No. 99 00 121 1215), plus UL 508, CE marking (2014/30/EU EMC Directive & 2011/65/EU RoHS), and compliance with ISO 9001:2015 manufacturing standards. Warranty is 365 days from shipment date — extended coverage is available upon request, but most customers find the module’s field longevity (typically 12–15 years) makes it a long-term asset rather than a consumable.
