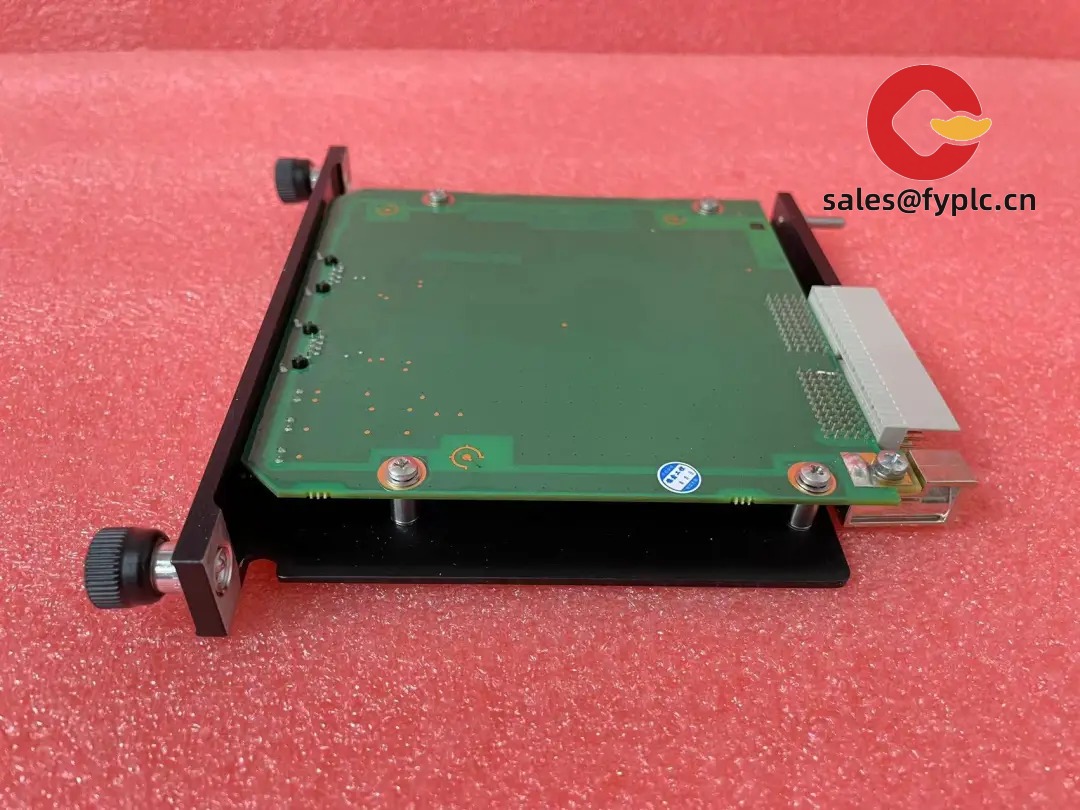

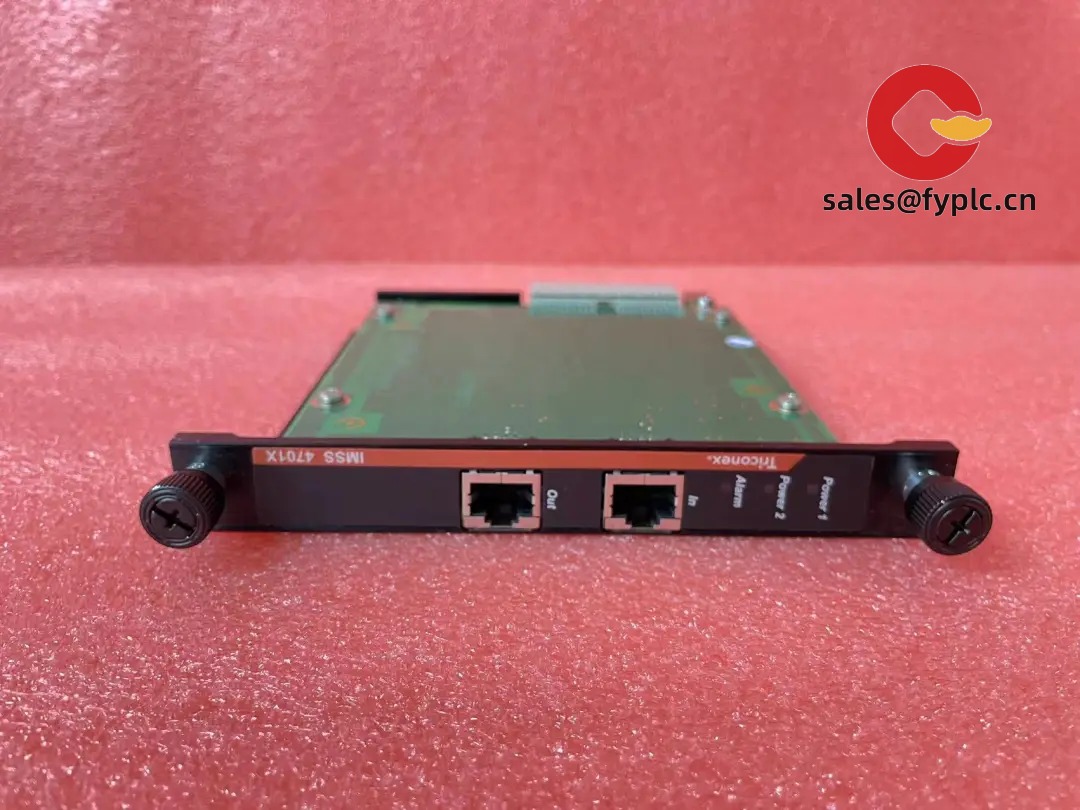

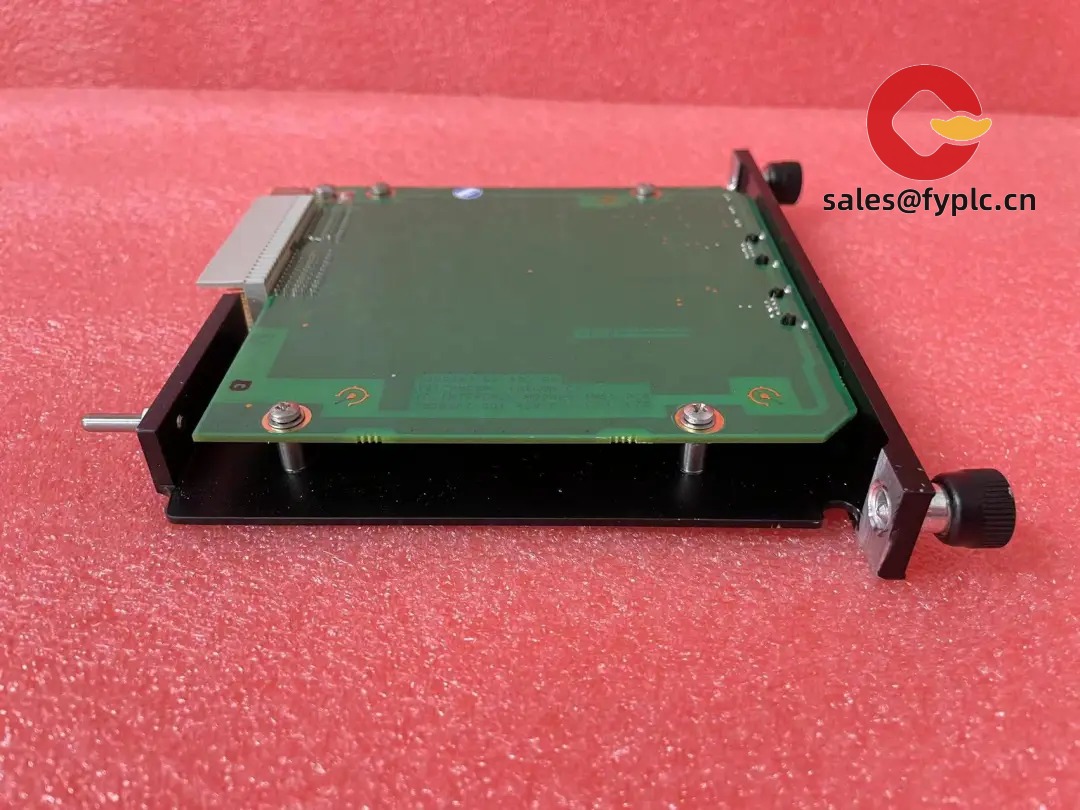

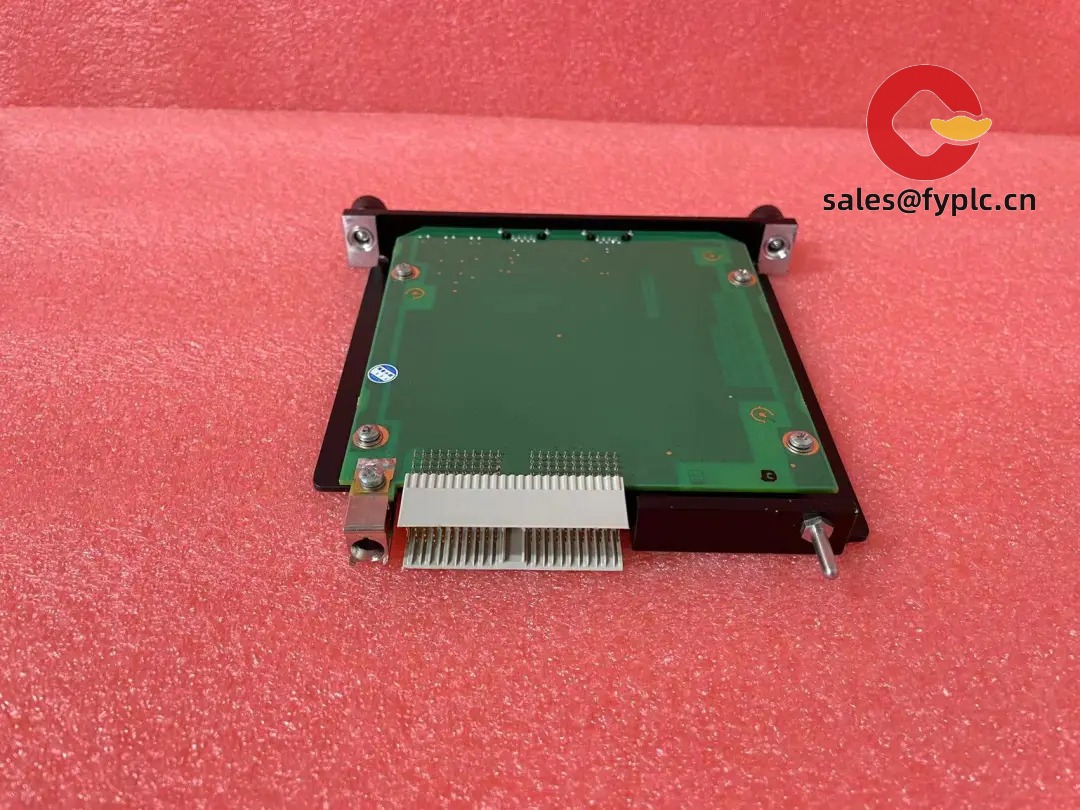

Triconex IMSS-4701X — High-Integrity Motor Starter Safety Module

It’s one of those modules that doesn’t grab headlines—but quietly keeps critical motor-driven processes online in oil & gas compressors, boiler feedwater pumps, and emergency diesel generator start circuits. The IMSS-4701X is Triconex’s dedicated safety-rated motor starter interface for TriStation-based SIS (Safety Instrumented Systems), designed to handle up to four independent motor starter circuits with SIL 3 capability per channel. From my experience supporting refinery retrofits, this module shows up most often where legacy hardwired starters needed a safer, more diagnosable upgrade—without sacrificing response time or mechanical interlock integrity.

Key Features

• Triple-modular redundant (TMR) architecture — Each output channel uses three independent voting channels, so single-point failures don’t trigger spurious trips. You might notice that during partial maintenance, the system stays online—no need to take the entire loop offline.
• Integrated diagnostics for contactor status, coil voltage, and auxiliary contacts — Not just “on/off” feedback: it monitors actual contactor health, including open-circuit detection on control coils. In many cases, this cuts down on manual loop checks by ~40% during turnaround planning.
• Direct connection to standard 120/240 VAC motor starter coils — No external relays required for typical NEMA-size starters. One thing I appreciate is how cleanly it interfaces with Allen-Bradley 509/592 or Siemens 3RT series—just wire the coil leads straight in.
• Configurable trip delay and restart inhibit timers — Adjustable per channel (0–60 sec), useful when dealing with momentary voltage sags or coordinated sequential starts. A customer in Alberta once used this to prevent cascading compressor shutdowns during grid fluctuations.
• Built-in hardware-enforced safe state logic — If communication drops or firmware faults, outputs de-energize *and lock* until manually reset via TriStation—no “fail-to-safe” ambiguity.

Technical Specifications

Application Fields

This module typically lands in high-consequence applications where motor failure could mean loss of containment, turbine overspeed, or fire pump downtime. Think offshore platform injection pumps, LNG train lube oil systems, or hydrogen compressor trains in refineries. It’s also seen in pharmaceutical clean utilities—especially where FDA 21 CFR Part 11 compliance pushes customers toward auditable, deterministic safety logic instead of PLC-based workarounds. One midwestern chemical site replaced six separate relay panels with two IMSS-4701X units—and cut their SIL verification effort by half, thanks to built-in diagnostic coverage metrics.

Advantages & Value

If you’re weighing this against custom-engineered relay solutions or third-party SIL-certified starters, the value isn’t just in the module itself—it’s in the ecosystem. Triconex’s validation packages (including FMEDA reports and systematic capability analysis) are pre-approved for most major certification bodies (exida, TÜV Rheinland), which shortens your SIS audit cycle. Spare parts logistics are predictable: no obscure contactor brands to track down, and firmware updates roll out through the same TriStation path you already use. And while it’s not the lowest-cost option upfront, total cost of ownership over 10 years tends to be lower—mainly because field calibration intervals stretch to 24 months (vs. 6–12 for comparable non-TMR devices), and spurious trip rates stay under 0.02% annually in well-maintained installations.

Installation & Maintenance

Mount only in cabinets meeting IEC 61511 Zone 2 / Class I Div 2 requirements (if used in hazardous areas), with minimum 100 mm clearance above/below for convection cooling. Avoid shared DIN rails with high-noise VFDs—use a dedicated ground bar and shielded twisted-pair wiring for all input signals. For safety, always isolate both 24 VDC backplane *and* AC coil supplies before servicing—even if the system appears de-energized. Routine maintenance is light: inspect terminal torque annually (2.5 N·m for M3.5 screws), verify contact resistance every 24 months (< 50 mΩ per pole), and apply firmware patches only during scheduled outages—never hot-swap versions across major TriStation releases (e.g., avoid jumping from v5.4 to v6.1 without full loop check).

Quality & Certifications

The IMSS-4701X carries TÜV Rheinland SIL 3 certification (Certificate No. 99 01 100 0042), UL 61010-1 (industrial control equipment), CE (EMC & LVD directives), and RoHS 2011/65/EU compliance. It’s manufactured under ISO 9001:2015 and IEC 61508 Part 2 quality management systems. Warranty is 365 days from shipment date—covers defects in materials and workmanship, but excludes damage from improper installation, voltage surges, or unauthorized firmware modification. Replacement units ship with factory-loaded firmware matching your TriStation version, and technical support includes remote diagnostics (with customer-provided TeamViewer access) at no extra charge during warranty period.
