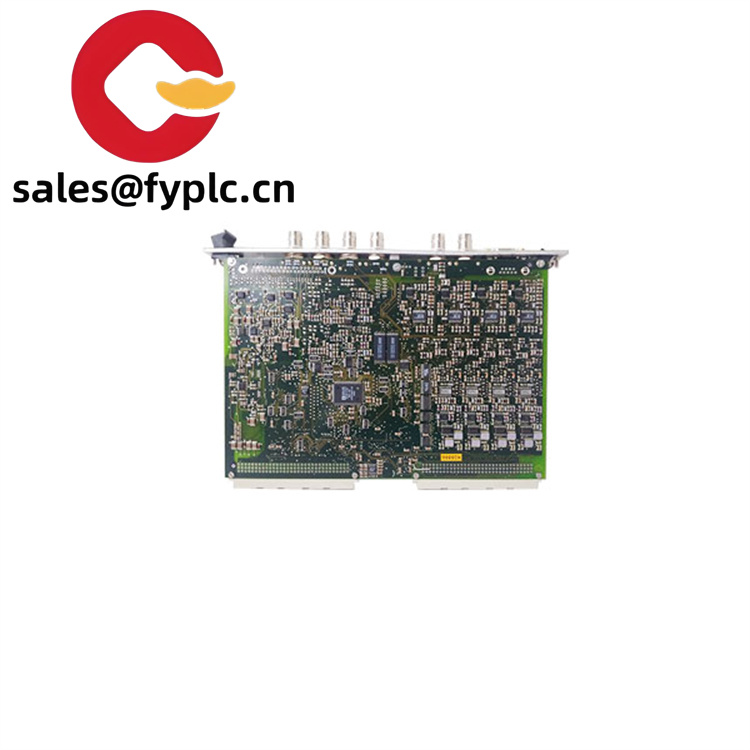

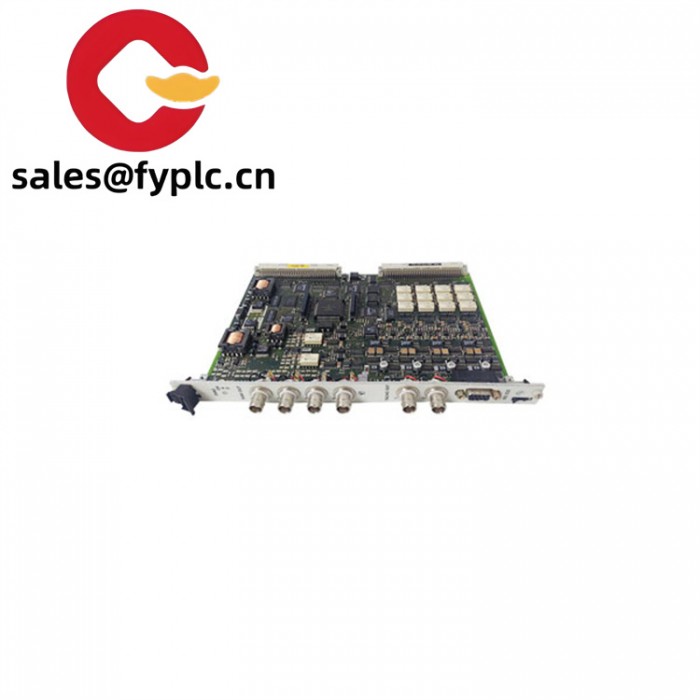

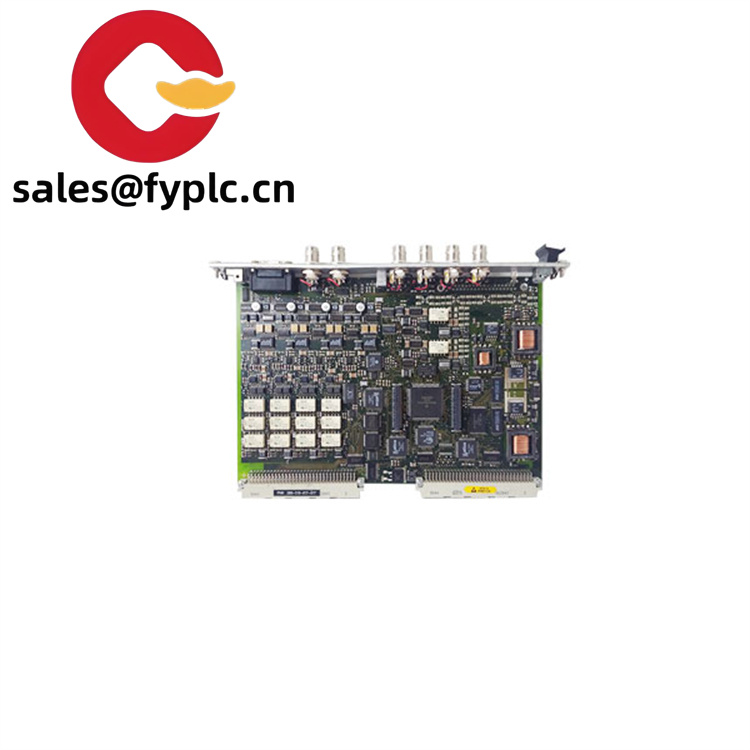

The VIBRO-METER 200-510-017-017 is a MPC4 machinery protection card designed for the VM600 modular monitoring system, engineered to provide real-time vibration analysis and critical machinery protection in industrial environments. As the core component of Vibro-Meter’s machinery protection system (MPS), this card ensures reliable operation of rotating equipment such as turbines, compressors, and pumps by detecting anomalies and triggering timely alarms or shutdowns.

Parameter	Specification
Model	200-510-017-017 (MPC4)
Brand	Vibro-Meter (a division of Meggitt)
Series	VM600
Input Channels	4 dynamic channels (vibration/displacement) + 2 tachometer channels (speed/phase)
Signal Processing	FPGA-based real-time analysis with digital filtering, integration, and amplitude/phase tracking
Frequency Range	0.1 Hz to 10 kHz
Output	0–10 VDC or 4–20 mA analog signals, 4 programmable relays
Operating Temperature	-20°C to +60°C
Certifications	CE, UL, IEC 61508 (SIL2 for safety-critical versions)
Weight	2.9 kg
Compatibility	VM600 ABE04x/ABE056 racks, IOC4T input/output card pair

• Dynamic and Tachometer Inputs: Supports simultaneous monitoring of vibration (relative/absolute), displacement, speed, and phase reference signals. For example, in a gas turbine, it tracks shaft vibration and rotational speed to detect imbalance or bearing wear .
• Adaptive Alarm Logic: Configurable thresholds with hysteresis and delay settings to reduce false alarms. In offshore compressors, it uses dynamic thresholds to differentiate between normal operational vibrations and critical faults .

2. High-Precision Signal Processing

• Digital Filtering: Built-in broadband/narrowband filters eliminate noise and isolate specific frequency components (e.g., gearmesh frequencies in gearboxes) .
• Synchronous Demodulation: Enables order tracking for rotating machinery, identifying issues like blade pass frequency anomalies in turbines .
