Description

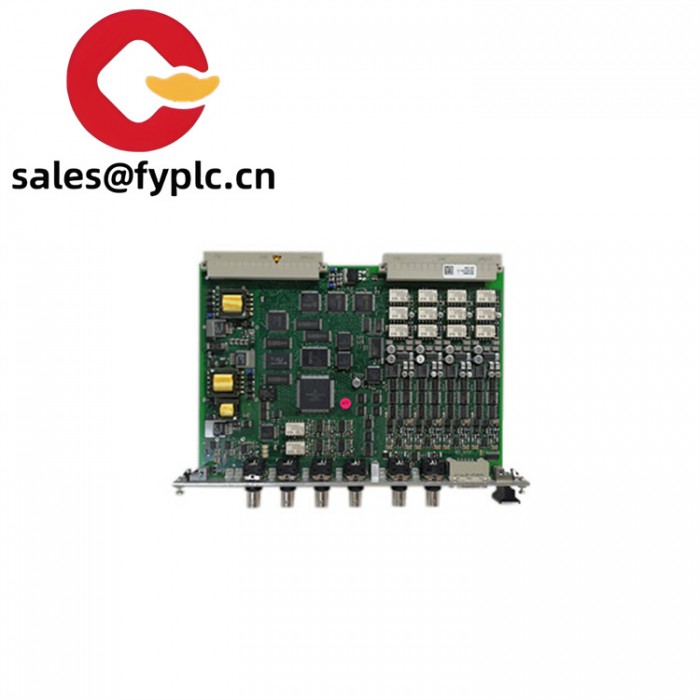

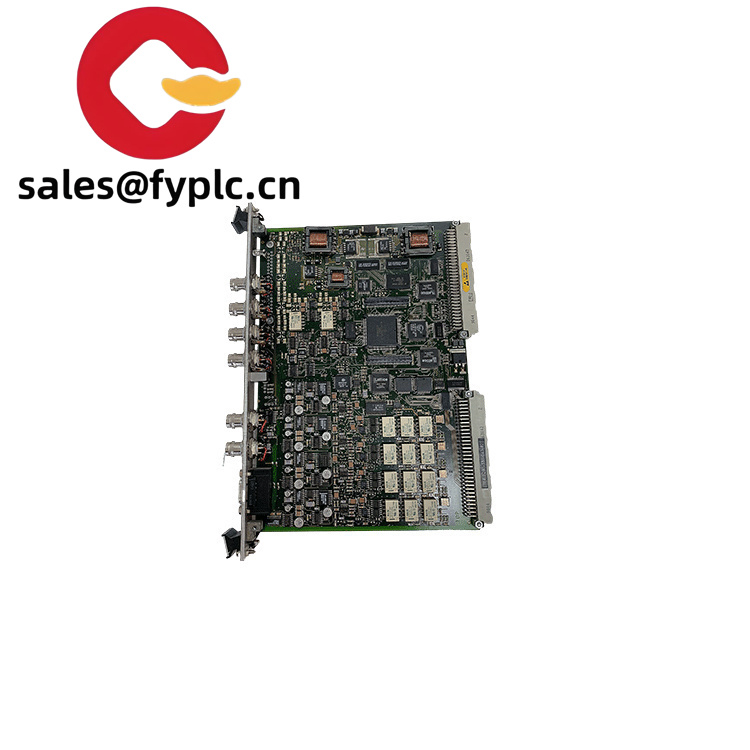

VM600 MPC4 Vibration Monitoring Instrument Mechanical Protection Card

The VM600 MPC4 sets itself apart with its remarkable capabilities. Equipped with 4 dynamic channels and 2 tachometer channels, each of these channels can be independently configured. This allows for highly customized monitoring based on the specific needs of different industrial equipment. For instance, in a high – speed rotating machinery scenario, the tachometer channels can precisely measure the rotational speed, while the dynamic channels are adept at capturing vibrations, providing a comprehensive view of the machine’s health.

Label	Specification
Model Number	VM600 MPC4
Brand	VIBRO – METER
Type	High – Performance Machinery Protection Card
Input Voltage	12VDC – 110VDC, 120VAC – 230VAC
Operating Temp	– 20°C to + 70°C
Communication Ports	Integrated communication for internal system use within VM600 (no external – facing ports specified)
Weight	Approximately 0.40 kg
Certifications	CE, SIL 2 (demonstrating high – level safety integrity)
Dimensions	Height: 6U (262 mm, 10.3 inches), Width: 20 mm (0.8 inches), Depth: 187 mm (7.4 inches)
IP Rating	Not specified (intended for indoor installation within VM600 system enclosures)
Protocols Supported	Operates within VM600 system’s internal communication protocols
Input Channels	4 dynamic channels, 2 tachometer (speed) channels
Output Channels	2 processed outputs per dynamic channel, 1 processed output per dual – channel (2 per MPC4), 1 processed output per tacho channel
Signal Processing	Utilizes advanced DSP technology for real – time signal analysis
Programmability	All channels are independently programmable
Filter Options	Programmable broadband and narrow – band filters
Alarm and Setpoints	Programmable alarm, danger, and determination setpoints with adaptive levels



The VM600 MPC4 sets itself apart with its remarkable capabilities. Equipped with 4 dynamic channels and 2 tachometer channels, each of these channels can be independently configured. This allows for highly customized monitoring based on the specific needs of different industrial equipment. For instance, in a high – speed rotating machinery scenario, the tachometer channels can precisely measure the rotational speed, while the dynamic channels are adept at capturing vibrations, providing a comprehensive view of the machine’s health.
Several related models work in tandem with the VM600 MPC4 or offer alternatives for different requirements. The VM600 MPC4 – S might be a more compact version, designed for applications where space is at a premium, such as in smaller industrial control cabinets.
