Description

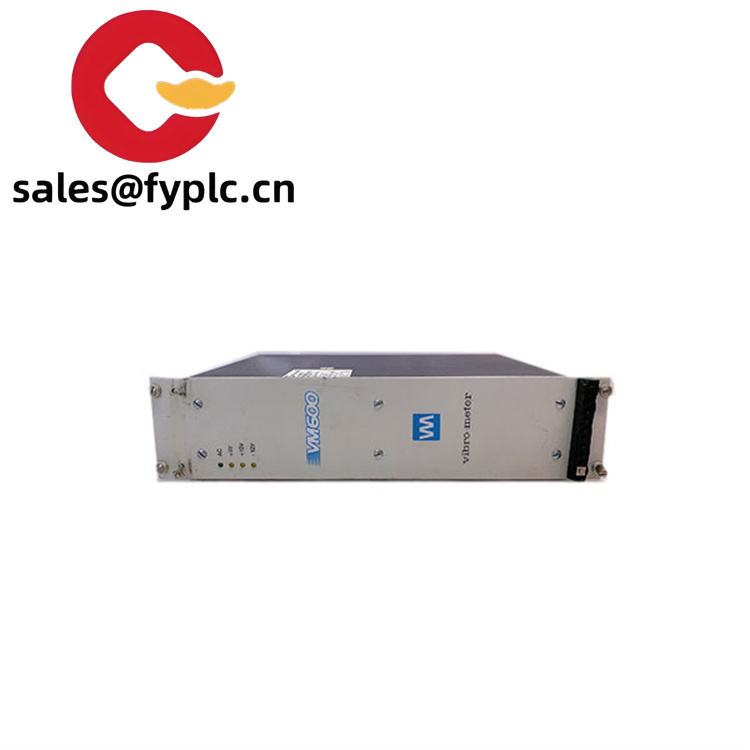

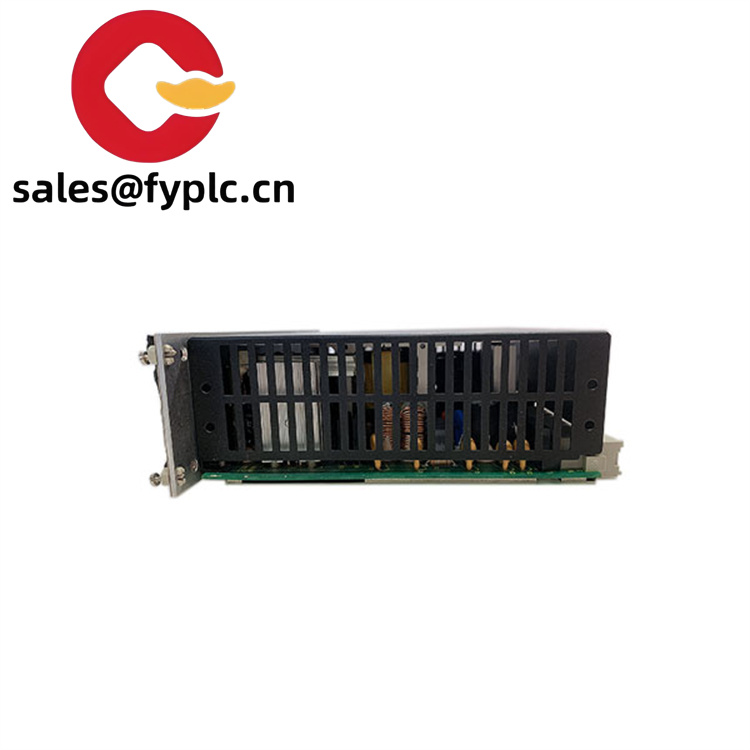

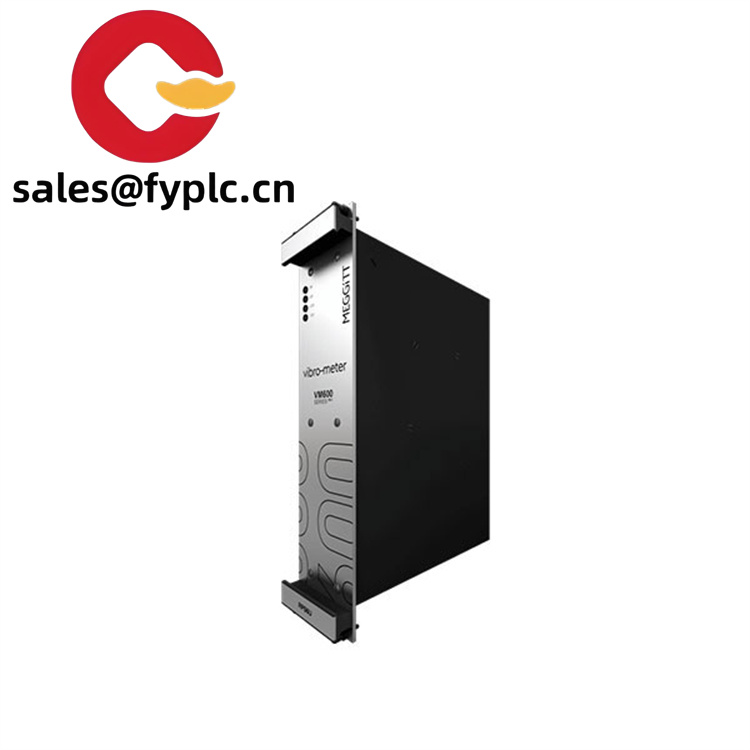

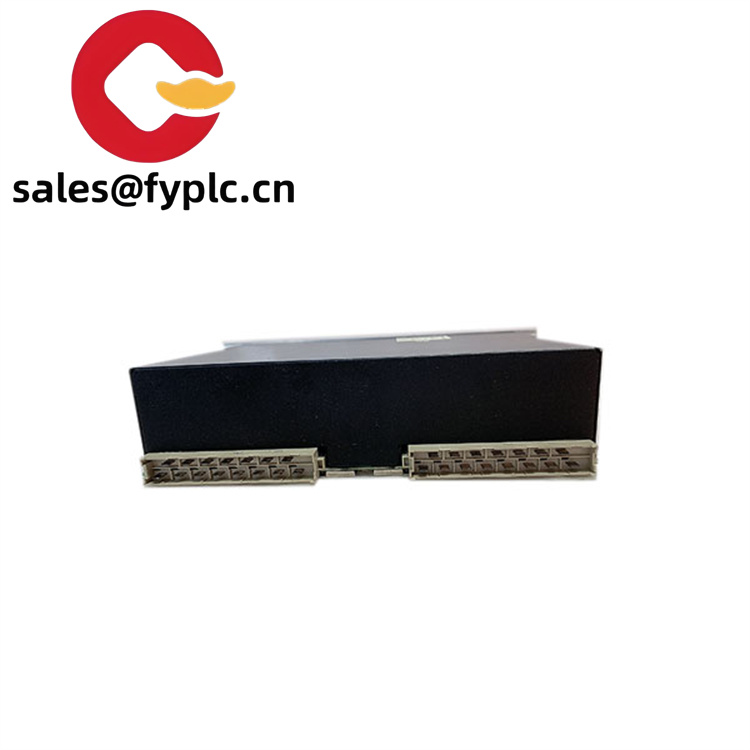

VM600 RPS6U thyristor communication module

The VM600 RPS6U stands out with its outstanding features. Its wide – range input voltage options, including both AC and DC variants, make it highly adaptable to different power sources in industrial settings. In terms of power redundancy, the ability to configure two VM600 RPS6U power supplies for a single rack is a significant advantage. In mission – critical industrial applications, such as power generation plants where continuous operation is essential, this redundancy feature ensures that even in the event of a power supply failure, the VM600 system can continue to function without interruption.

Label	Specification
Model Number	VM600 RPS6U
Brand	VIBRO – METER
Type	Rack Power Supply
Input Voltage	AC: 115/230 VAC; DC: 24 VDC, 110 VDC, 220 VDC
Operating Temp	0°C – 70°C (32°F – 158°F)
Communication Method	N/A (Internal power supply, no external communication)
Mounting	Designed for VM600 ABE04x rack
Weight	Approximately 0.6 kg
Certifications	CE and other relevant international standards
Dimensions	6U height (Detailed measurements available in official documentation)
IP Rating	Suitable for indoor use (No specific IP rating defined)
Protocols Supported	N/A
Output Voltage	+5 VDC, +12 VDC, – 12 VDC
Output Protection	Over – voltage, short – circuit, and overload protection
Status Indicator	LEDs for IN, +5V, +12V, – 12V status display
Power Redundancy	Dual VM600 RPS6U configuration for rack redundancy
Vibration & Shock Resistance	Complies with IEC 60068 – 2 – 6 and IEC 60068 – 2 – 27
MTBF	> 40,000 hours at 70°C (158°F)



The VM600 RPS6U showcases several features that make it a standout choice in industrial settings. Its wide – ranging input voltage capabilities are a game – changer, effortlessly adapting to different power sources found in diverse industrial locations.
The status indicator LEDs on the VM600 RPS6U provide instant visual feedback, allowing operators to quickly assess the power supply’s health. This real – time monitoring helps in early detection of issues, reducing the time spent on troubleshooting.
