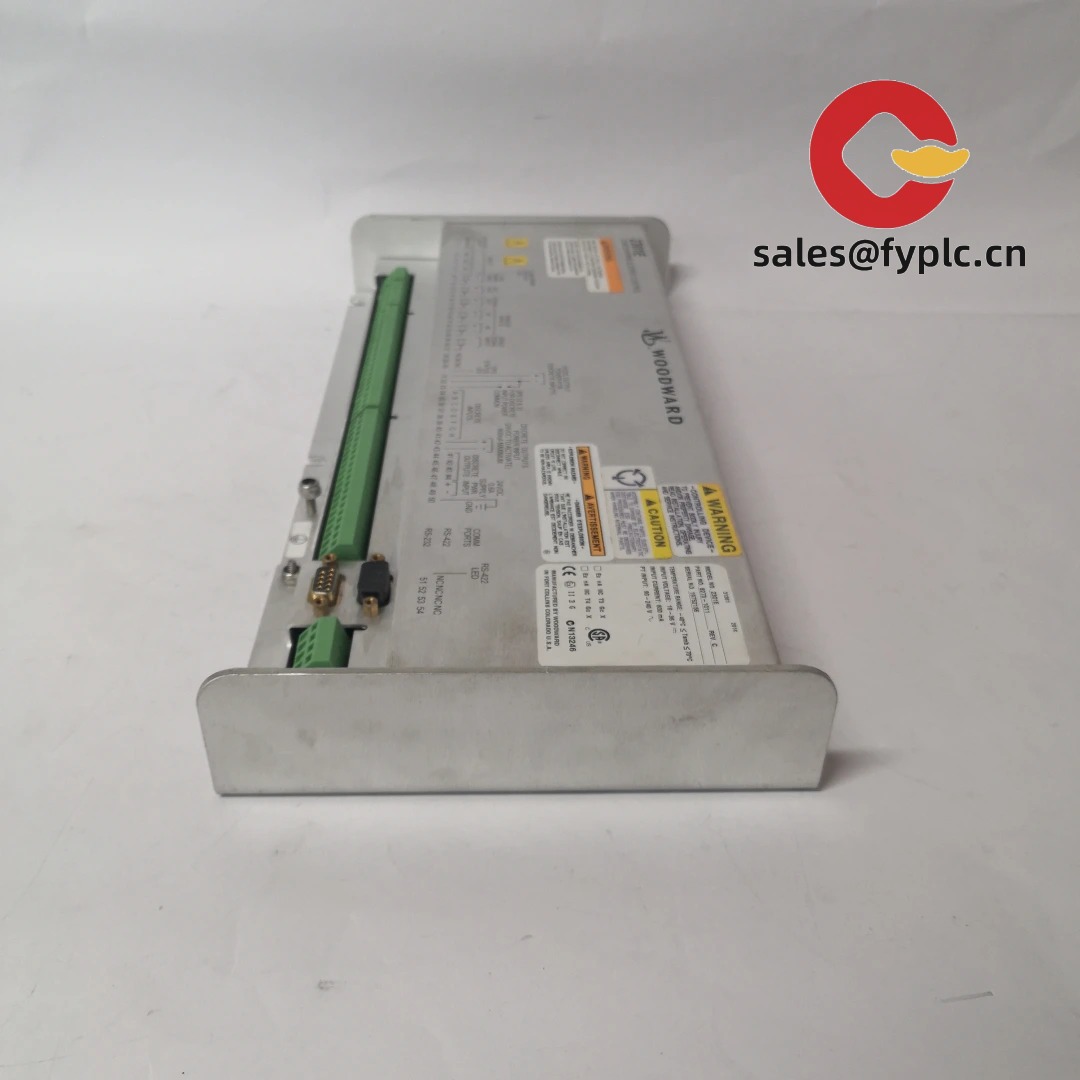

WOODWARD 2301E 8273-1011 – Digital Load Sharing & Speed Control for Generator and Engine Applications
The WOODWARD 2301E (model 8273-1011) is a digital speed and load-sharing controller designed for prime movers in generator, pump, and compressor service. From my experience, it’s chosen when you need stable isochronous control, smooth load sharing in parallel sets, and straightforward integration with standard 24 Vdc control cabinets. It typically replaces older analog governors with minimal wiring changes, and it seems to be a reliable option for fleet-standardization.
Order Placement Process and Guarantees
- Warranty: 365 days
- Lead Time: 1 week if in stock; no more than 1 month latest
- Payment: 50% advance payment; full payment before delivery
- Express Options: FedEx, UPS, DHL
Key Features
- Digital speed control – Isochronous or droop modes for stable frequency control across varying loads.
- Load sharing – Coordinates multiple gensets for proportional kW sharing, reducing circulating currents and hunting.
- Soft load/soft unload – Smooth transitions on and off the bus to protect mechanical systems and avoid breaker trips.
- Flexible I/O – MPU speed input, 4–20 mA/voltage bias, discrete raise/lower; current output for proportional actuators.
- Communications – RS‑485 (Modbus RTU) for configuration/monitoring; service access typically via serial.
- Protective functions – Configurable limits, alarms, and shutdown relays to help safeguard the prime mover.
- 24 Vdc cabinet integration – Runs on standard 24 Vdc supplies, easy to retrofit in existing panels.
Technical Specifications
| Brand / Model | WOODWARD 2301E – 8273-1011 |
| HS Code | 9032.89 (Automatic regulating or controlling instruments) |
| Power Requirements | 18–32 Vdc (nominal 24 Vdc), typical consumption < 20 W |
| Operating Temperature | -40 to +70 °C, non-condensing environment recommended |
| Signal Input / Output Types | MPU speed input (magnetic pickup); configurable analog bias (e.g., 4–20 mA / 0–5 or 0–10 V, model-dependent); discrete raise/lower/enable; actuator current output (typically 0–200 mA); form‑C relay outputs for alarms/shutdown. |
| Communication Interfaces | RS‑485 (Modbus RTU) for configuration/monitoring; local service via serial port (RS‑232) in many cases |
| Installation Method | Backplate/panel mounting inside control cabinet; shielded wiring to MPU and actuator; screw terminal connections |
| Dimensions & Weight | Compact controller form factor for cabinet mounting; typically under 300 × 200 × 70 mm and < 2 kg |
Application Fields
The 2301E 8273-1011 is commonly used on diesel or gas engines driving:
- Standby and prime-power generator sets (single or paralleled)
- Cogeneration/CHP sets with soft load transfer to facility bus
- Pumps and compressors where tight speed regulation reduces process variation
- Marine auxiliary gensets and industrial power modules
- Oil & gas skid packages, drilling auxiliaries, and remote power systems
One thing I appreciate is the way it handles soft loading—on sites with sensitive breakers, that feature alone has cut nuisance trips. A maintenance supervisor told us they swapped in the 2301E during a planned shutdown and were fully synchronized and sharing load within an hour.
Advantages & Value
- Reliability: Digital control with robust I/O filtering—stable frequency control even with noisy MPU signals.
- Compatibility: Works with common Woodward proportional actuators (0–200 mA) and standard 24 Vdc cabinets.
- Lower Retrofit Costs: In many cases, it replaces older 2301A/2301D units without major panel rework.
- Operational Efficiency: Soft load/unload and precise kW sharing reduce mechanical stress and fuel waste.
- Supportability: Modbus access simplifies commissioning, logging, and remote diagnostics.
Installation & Maintenance
- Cabinet & Environment: Mount on a grounded backplate in a ventilated cabinet (IP54 or better recommended). Keep away from high-EMI devices.
- Power & Wiring: Use a clean 24 Vdc supply with proper grounding. Route MPU and analog lines with shielded twisted pairs; segregate from high‑current conductors.
- Actuator & Relays: Verify actuator current limits and linkage travel; test alarm/shutdown relay logic before first start.
- Commissioning: Configure droop/isochronous mode, speed setpoints, ramp rates, and load-share parameters; confirm soft load timing on a test run.
- Routine Maintenance: Inspect connectors quarterly, clean dust, check MPU gap and signal level, back up configuration, and apply firmware updates when available.
- Safety: Lockout/tagout before wiring changes; validate fail-safe behavior and e-stop circuits after any update.
Quality & Certifications
- Manufacturer quality system: ISO 9001
- CE compliant; RoHS conformant
- UL/cUL applicability depends on specific installation and panel certification
- Warranty: 365 days from shipment
If you’re standardizing a multi‑genset site or planning a phased retrofit, this model typically hits the balance of capability, commissioning time, and lifecycle support.
