Description

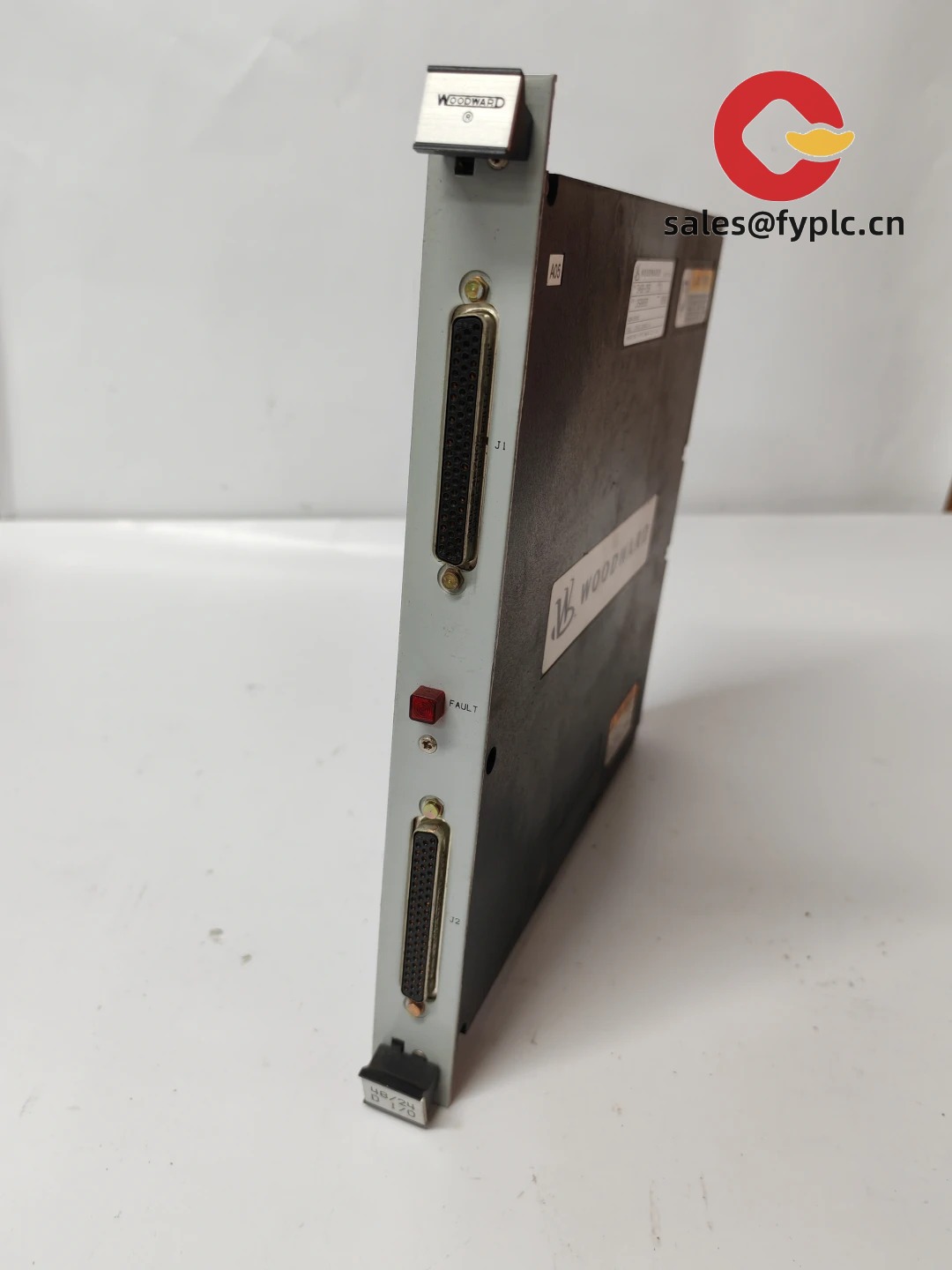

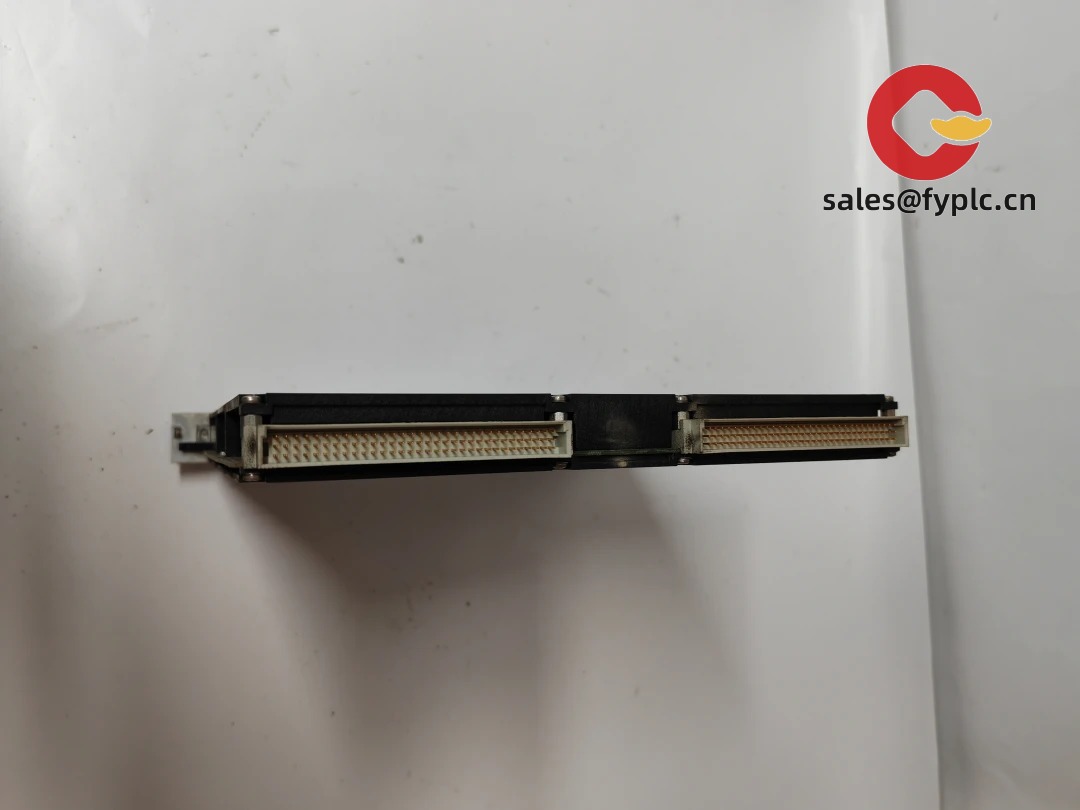

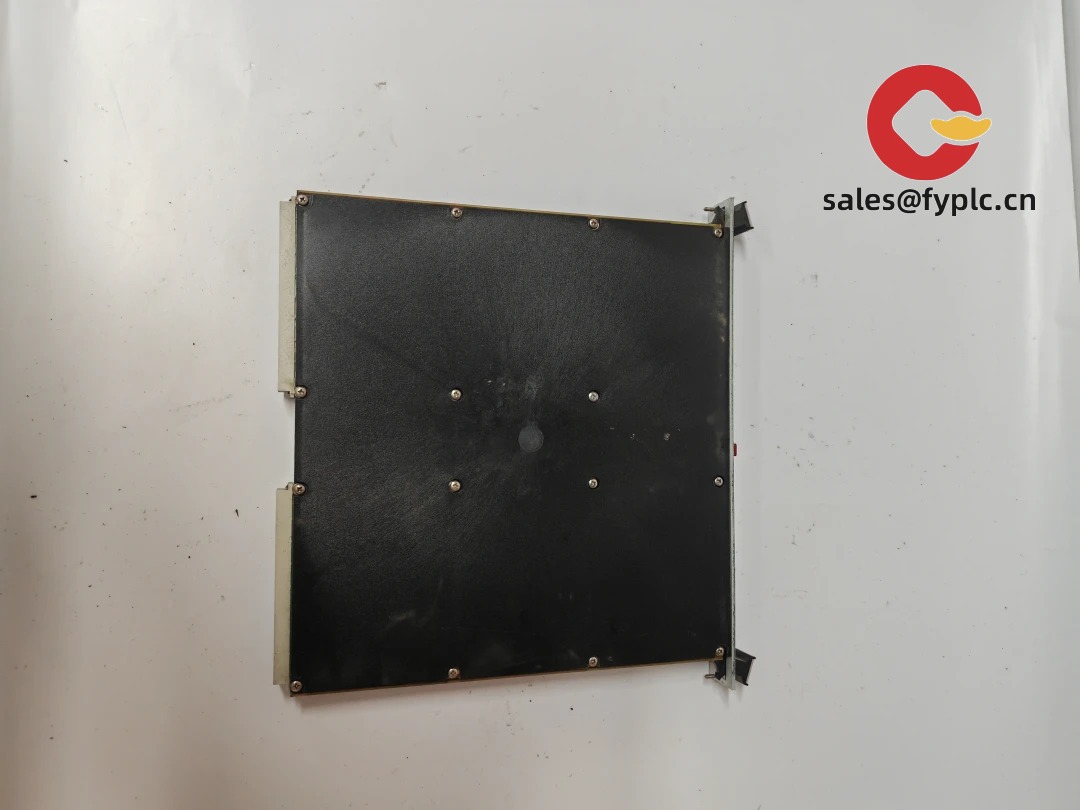

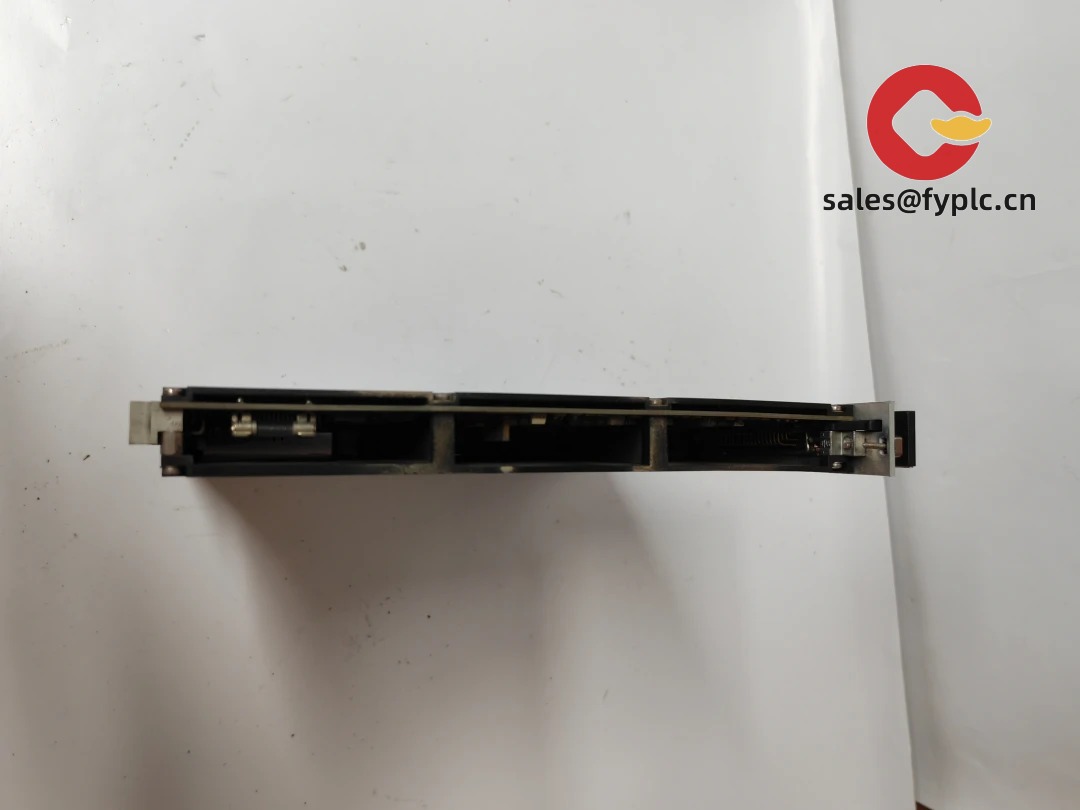

WOODWARD 5466-258 MicroNet Module – High-integrity controller/interface card for turbomachinery systems
The WOODWARD 5466-258 is part of the MicroNet series used on gas/steam turbines, compressors, and generator sets where deterministic control and protection are non‑negotiable. From my experience, this module sits in the MicroNet rack as a controller/interface element with backplane diagnostics and front‑panel status LEDs—exactly what maintenance teams want during proof tests and tight outage windows. One thing I appreciate is how MicroNet cards pair rugged construction with clean wiring through matched termination assemblies, which typically shortens commissioning and troubleshooting.
Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in‑stock; no more than one month at the latest
- Payment method: 50% advance payment; full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
Key Features
- MicroNet platform integration
– Works within Woodward’s rack‑based architecture for turbine and compressor control. - High availability design
– Typically used in redundant/TMR deployments with deterministic behavior under demand. - Backplane‑managed health
– Controller supervises module status and configuration over the MicroNet backplane. - Front‑panel status LEDs
– Clear indication helps technicians isolate issues quickly during start‑ups and proof tests. - Hot‑replaceable serviceability
– In most cases, cards can be swapped online following OEM procedures and site bypass rules. - Clean cabinet integration
– Compatible with matched termination assemblies for orderly wiring and labeling.
Technical Specifications
| Brand / Model | WOODWARD 5466-258 (MicroNet Module) |
|---|---|
| HS Code | 853890 (Parts for electrical control panels / programmable controllers) |
| Power Requirements | Backplane powered by MicroNet rack (typical 5 V / 24 V rails; see controller manual for current draw) |
| Operating Temperature | Typically 0 to +60 °C, non‑condensing cabinet environment |
| Signal Input/Output Types | Per module function within the 5466 family; field I/O via associated termination assemblies when applicable |
| Communication Interfaces | Proprietary MicroNet backplane; field wiring through Woodward terminal boards/cables (model dependent) |
| Installation Method | Plug‑in rack module with front‑access LEDs; hot‑swap per OEM procedure |
| Dimensions & Weight | Standard MicroNet card format suitable for Woodward racks |
Application Fields
Plants typically use the 5466‑258 as part of high‑integrity control where hardwired signals and deterministic logic matter more than bells and whistles. Common scenarios:
- Gas/steam turbine control – trip paths, speed/load control, and sequencing in TMR cabinets.
- Compressors – anti‑surge protection, permissives, and interlocks tied to process safety.
- Generator sets – breaker logic, status feedback, and balance‑of‑plant I/O.
- Refining, petrochemical, LNG – integration with DCS/SIS via clean, hardwired interfaces.
- Power & utilities – dependable control at the boundary between turbomachinery and plant systems.
Advantages & Value
- Reliability that reduces downtime – Stable operation in continuous service with clear status indication.
- Compatibility – Native fit with MicroNet racks and termination assemblies lowers integration risk.
- Maintainability – Hot‑replaceable design and backplane diagnostics speed fault isolation.
- Lifecycle efficiency – Standardized spares across MicroNet modules often cut inventory costs.
- Support ecosystem – Strong documentation and field support around Woodward turbomachinery controls.
Installation & Maintenance
- Cabinet environment – Mount the rack in a clean, ventilated enclosure; keep ambient within spec and allow front clearance for extraction.
- Wiring practices – Use the specified Woodward termination assemblies and shielded cabling; separate low‑level signals from power/VFD runs.
- Safety – Follow LOTO on field circuits; for hot‑swap, apply OEM steps and site bypass policy.
- Routine checks – Verify terminal torque, inspect connectors, clean dust, and proof‑test channels per the maintenance plan.
- Configuration control – Keep firmware and logic under MOC; back up before planned work. If you need exact channel counts or firmware matchups, share the rack BOM and we’ll verify compatibility.
Quality & Certifications
- Compliance – Typically CE for the system assembly; many projects also reference UL/CSA and RoHS at the panel level.
- Functional safety use – Deployed within MicroNet redundant/TMR architectures applied to SIL‑rated controls when engineered per the safety manual.
- Warranty – 365 days from delivery.
A turbine controls engineer mentioned after a shutdown, “Swapping the MicroNet card and re‑running proofs was quick—LEDs told us exactly where to look.” That seems to be the day‑to‑day value of the 5466‑series in most cabinets.
