Description

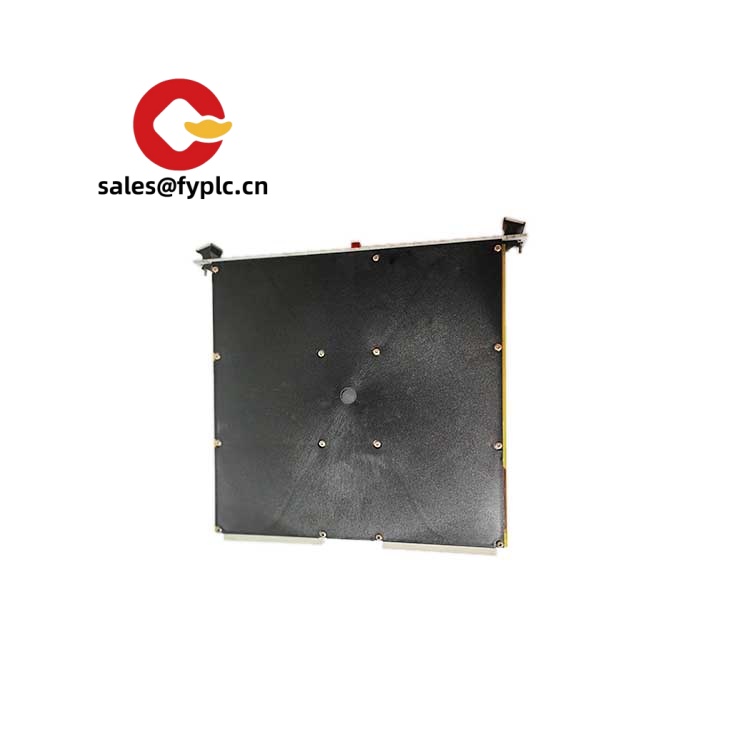

Woodward 5466-318 MicroNet Module – Reliable controller/interface card for turbine and compressor control
The Woodward 5466-318 sits within the MicroNet family used on critical rotating equipment—gas/steam turbines, compressors, and generator sets. It appears to be a plug‑in controller/interface module for the MicroNet rack, managed over the backplane with clear front‑panel status LEDs. From my experience, MicroNet cards like this get picked for their predictable behavior during start‑ups and proof tests, plus the way they pair with matched termination assemblies to keep cabinet wiring neat and serviceable.
Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in‑stock items; no more than one month at the latest
- Payment method: 50% advance payment; full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
Key Features
- MicroNet platform integration
– Works within Woodward’s rack‑based architecture, typically in redundant or TMR deployments for high availability. - Deterministic behavior under demand
– Consistent response for trip/sequence logic; technicians can read channel and health states at a glance with front LEDs. - Backplane‑managed configuration and diagnostics
– The controller supervises module health, which speeds troubleshooting during tight outage windows. - Hot‑replaceable serviceability
– In many cases, the module can be swapped online following OEM procedure and site bypass rules. - Rugged, cabinet‑ready construction
– Industrial connectors and conformal coating practices are commonly used across MicroNet hardware to handle vibration and humidity. - Matched termination assemblies
– Pairs with Woodward TAs for orderly wiring, clear labeling, and quicker loop checks.
Technical Specifications
| Brand / Model | Woodward 5466-318 (MicroNet Module) |
|---|---|
| HS Code | 853890 (Parts for electrical control panels / programmable controllers) |
| Power Requirements | Backplane powered by MicroNet rack (typical 5 V / 24 V rails; see controller manual for current draw) |
| Operating Temperature | Typically 0 to +60 °C, non‑condensing control cabinet environment |
| Signal Input/Output Types | Field I/O via associated Woodward termination assemblies; exact channel type/count depends on 5466‑318 function |
| Communication Interfaces | Proprietary MicroNet backplane; field wiring through dedicated terminal boards/cables |

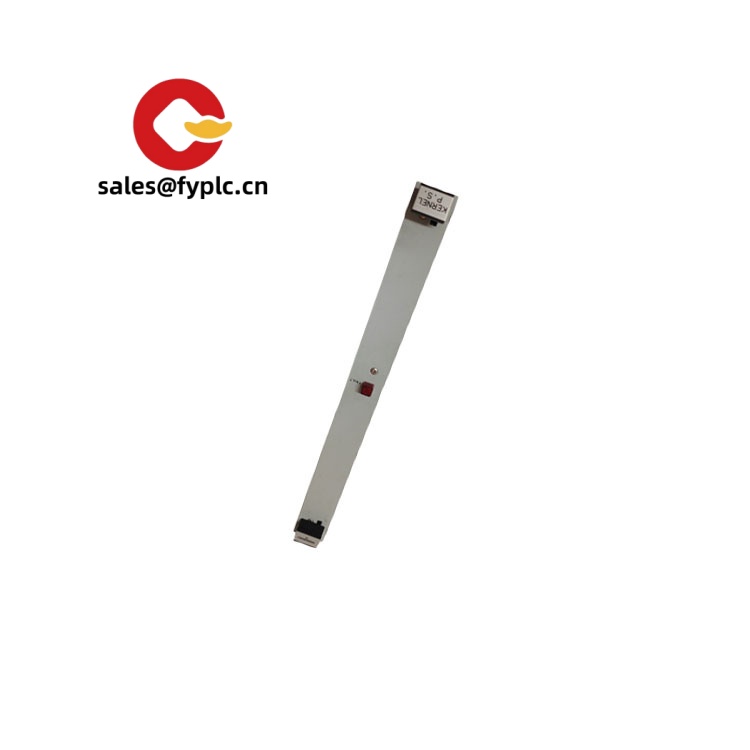

| Installation Method | Plug‑in rack module; front‑panel status LEDs; hot‑swap per OEM procedure |
| Dimensions & Weight | Standard MicroNet card format suitable for Woodward racks (drawing available on request) |
Application Fields
Plants typically deploy the 5466‑318 wherever high‑integrity control needs a dependable, hardwired interface. Common scenarios:
- Gas and steam turbines – trip paths, sequencing, and speed/load control within MicroNet TMR cabinets.
- Compressors – anti‑surge and protection interlocks tied to process measurements and valve actuation.
- Generator sets – breaker logic, permissives, and balance‑of‑plant signals.
- Refining, petrochemical, LNG – integration at the boundary of DCS/SIS and turbomachinery controls.
- Power & utilities – reliable I/O/control where uptime and deterministic behavior matter.
Advantages & Value
- Reliability in critical service – Stable hardware and clear diagnostics reduce nuisance trips in most cases.
- Compatibility – Native fit with MicroNet racks and termination assemblies; lowers integration risk and engineering time.
- Maintainability – Hot‑replaceable design with front LEDs makes fault isolation faster during outages.
- Lifecycle efficiency – Standardized spares and documentation across the 5466 family help control inventory costs.
- Vendor support – Strong installed base and global service coverage for Woodward turbomachinery controls.
Installation & Maintenance
- Cabinet environment – Mount in a clean, ventilated enclosure; maintain ambient within spec and keep front clearance for extraction.
- Wiring practices – Use the specified Woodward termination assemblies; separate low‑level signals from power/VFD cables and bond shields correctly.
- Safety – Apply LOTO on field circuits; for hot‑swap, follow OEM steps and site bypass policy before removing a card.
- Routine checks – Verify terminal torque, inspect connectors, clean dust from card edges, and proof‑test channels at defined intervals.
- Configuration control – Keep firmware and logic under MOC; back up the rack configuration prior to planned work. If you need us to verify exact channel counts for 5466‑318, share the rack BOM and revision.
Quality & Certifications
- Compliance – Typically CE for the system assembly; projects often reference UL/CSA and RoHS at the panel level.
- Functional safety use – Applied within MicroNet redundant/TMR architectures that support SIL‑rated controls when engineered per the safety manual.
- Warranty – 365 days from delivery.
A commissioning lead told me after a turbine start‑up, “LEDs made it obvious where a wiring swap lived; the card change took minutes.” That kind of straightforward serviceability is why the 5466‑series keeps showing up in critical cabinets.
