Woodward 5501-365 – Rack-Mounted Control Module for Industrial Turbine & Engine Systems

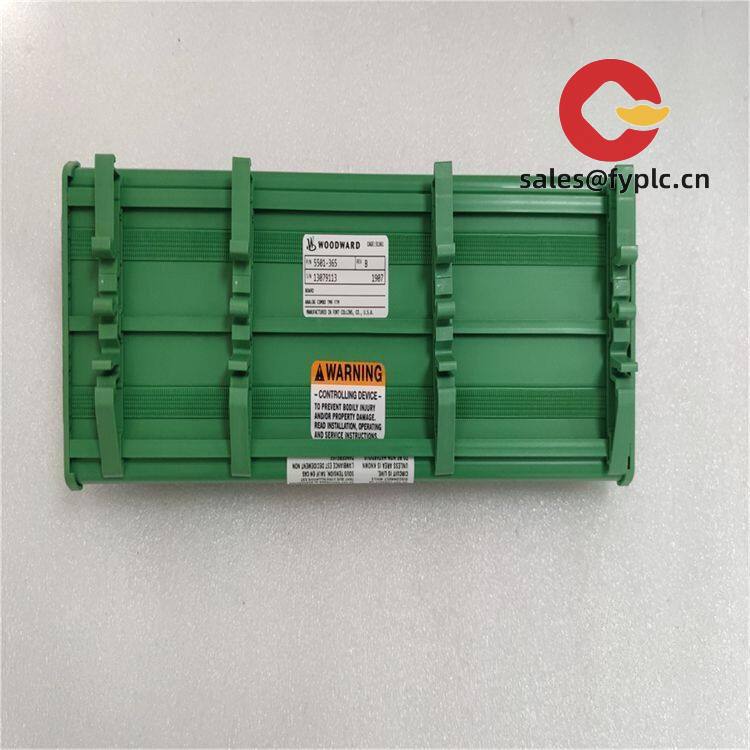

The Woodward 5501-365 is a plug-in control module typically used in Woodward rack-based systems found on gas/steam turbines, compressors, and large engines. From my experience, this series is chosen when teams want robust, field-replaceable boards that integrate cleanly with existing Woodward architectures and the 24 Vdc control ecosystem. You might notice that it slots into the backplane and handles signal processing and system interconnect without reworking the cabinet layout—good news for downtime-sensitive sites.

Company’s Order Placement Process and Guarantees

Key Features

• Rack plug-in form factor: Designed to mount on the Woodward system backplane for quick module replacement.
• 24 Vdc control ecosystem: Works within standard 24 Vdc control power architectures commonly used in turbine and engine cabinets.
• Industrial build quality: Components and board layout are aimed at reliable operation in control rooms or skid enclosures.
• Status indication: In many cases, LEDs provide at-a-glance health or channel status to speed up troubleshooting.
• Serviceability: Field-replaceable module approach helps minimize downtime during maintenance or upgrades.
• Platform compatibility: Typically applied within Woodward rack systems (e.g., MicroNet/NetCon families). Always verify part and revision against your controller BOM.

Technical Specifications

Notes: Specific channel counts and firmware dependencies vary by revision. If you share your controller architecture or cabinet photos, we’ll cross-check compatibility before shipment.

Application Fields

• Gas and steam turbine controls — governor, protection, sequencing
• Centrifugal compressor control packages in oil & gas
• Large diesel/gas engine management for power generation
• Process industry drives and critical rotating equipment skids

Advantages & Value

• Reliability under real plant conditions: These modules are built for continuous duty; downtime tends to drop when spares are on hand.
• Lifecycle support: We help match revision levels so the board drops into your existing rack without awkward rework.
• Cost control: A targeted board replacement often saves more than a full controller upgrade, especially mid-life.
• Technical backing: Pre-shipment checks and documentation support; setup tips based on previous field cases.

A maintenance manager told us last quarter that swapping a 5501-series card during a planned outage cut their troubleshooting time in half—mostly because the wiring and I/O assignment stayed intact.

Installation & Maintenance

• Cabinet environment: Install in a clean, dry control cabinet with adequate ventilation and stable 24 Vdc supply. Keep away from high EMI sources where possible.
• Mounting: Power down the controller, observe ESD protection, then insert the module straight into the assigned slot until fully seated on the backplane.
• Wiring: Field wiring remains on terminal blocks tied to the rack/system; verify terminal IDs and grounding per the Woodward manual.
• Safety: Lockout/tagout, discharge stored energy, and confirm cabinet power is off before handling modules.
• Routine care: Periodically inspect connectors, clean dust with dry air, and check firmware/controller configuration backups. Recalibrate related I/O channels as required by site procedures.

Quality & Certifications

• Manufactured to industrial control standards; many Woodward modules carry CE and UL marks
• RoHS compliance typically applicable for current-production electronics
• ISO-based quality management at the manufacturing level
• 365-day warranty from delivery date
