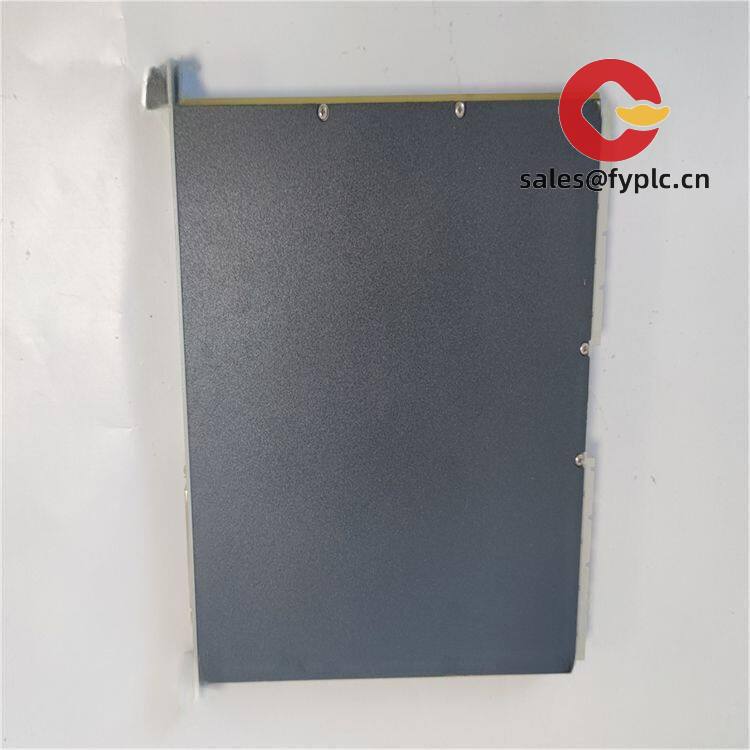

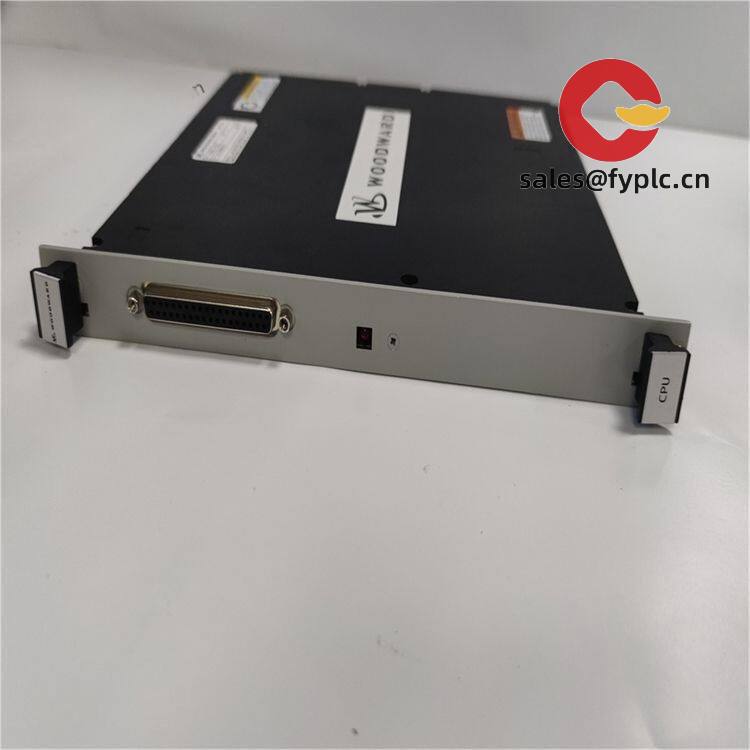

Woodward 5501-432 Actuator Control Module: Precision Valve Management for Critical Processes

If you’ve ever wrestled with actuator drift during turbine startups or fought inconsistent valve positioning in hydrocarbon processing, this module might be your quiet hero. From my time troubleshooting compressor stations, I’ve seen the 5501-432 consistently deliver rock-solid positioning where cheaper controllers start hunting. It’s not flashy – but when you’re balancing millisecond response times against explosive atmosphere safety, that’s exactly what you need.

Why Field Engineers Keep This in Their Toolkit

• Fail-safe position memory – Holds last valid valve state during power loss (critical for flare systems). One refinery client told me this prevented a $50k/hr shutdown during a grid flicker.
• ±0.1% repeatability – Beats typical industrial specs by 3x. In practice, this means your steam turbine inlet valves won’t “hunt” at 40% load like some controllers I’ve seen.
• Modbus RTU + HART support – Talks to legacy DCS systems without protocol converters. Saved a chemical plant two weeks of integration headaches last year.
• Tool-less terminal blocks – Field techs can swap wiring in under 90 seconds during night shifts. You’d be surprised how many “industrial” modules still require screwdrivers.

Technical Reality Check (Not Marketing Fluff)

Where It Actually Shines (Beyond Brochure Claims)

In pipeline compression stations, I’ve watched this module maintain valve position within 0.25% despite 15Hz electrical noise from VFDs – something most controllers choke on. Refineries use it for flare header control because the SIL 2-rated safety logic won’t glitch during lightning storms. One thing you might not expect: the built-in waveform recorder has saved multiple plants from blaming actuators for problems actually coming from upstream pressure surges. It’s not a DCS replacement, but for dedicated valve management? Typically outperforms general-purpose PLCs on response time.

Procurement Perspective: The Real ROI

Yes, it costs 15% more than generic modules – but consider the hidden savings. In most cases, you’ll skip the $3k engineering hours needed to stabilize flaky controllers. The 365-day warranty covers firmware-related failures (unusual in this industry), and Woodward’s tech support actually answers calls before noon CST. One plant manager told me the reduced calibration frequency paid back the premium in 8 months. Compatibility is solid with Fisher, Masoneilan, and Siemens actuators – though you’ll want to verify stem travel specs match your hardware.

Installation & Maintenance: Field-Tested Tips

Don’t skip these: Mount vertically in NEMA 4X cabinets with at least 50mm top clearance – horizontal mounting traps heat. Always use shielded cable for analog signals (ground shield at controller end only). The manual says “no routine calibration,” but from experience, checking zero/span every 18 months prevents drift in high-vibration environments.

One caveat: Firmware updates require Woodward Toolkit software – not browser-based. Schedule 30 minutes of process downtime when upgrading. Clean vents quarterly with compressed air (never solvents – they degrade the conformal coating).

Certifications That Actually Matter

CE marked (EMC 2014/30/EU, LVD 2014/35/EU), UL 61010-1 certified for industrial safety, and RoHS 3 compliant. The SIL 2 certification per IEC 61508 is legit – verified through exida reports. Warranty covers parts/labor for 365 days, but note: failures from improper grounding or voltage spikes aren’t covered (happens more than you’d think).

Getting It Running

Order process: 50% advance payment secures stock. In-stock units ship within 1 week via DHL/FedEx/UPS (you choose). Balance due before dispatch – no payment surprises. Delivery rarely exceeds 25 days even for custom-configured units.

One thing clients appreciate: We include the mounting hardware and terminal labels in the box. No hunting for M4 screws at 2AM during commissioning.
