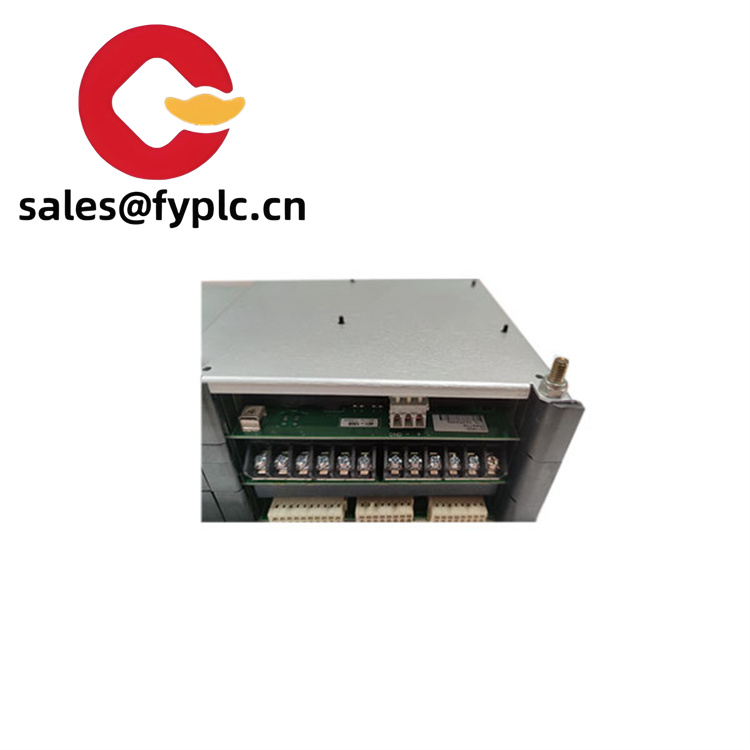

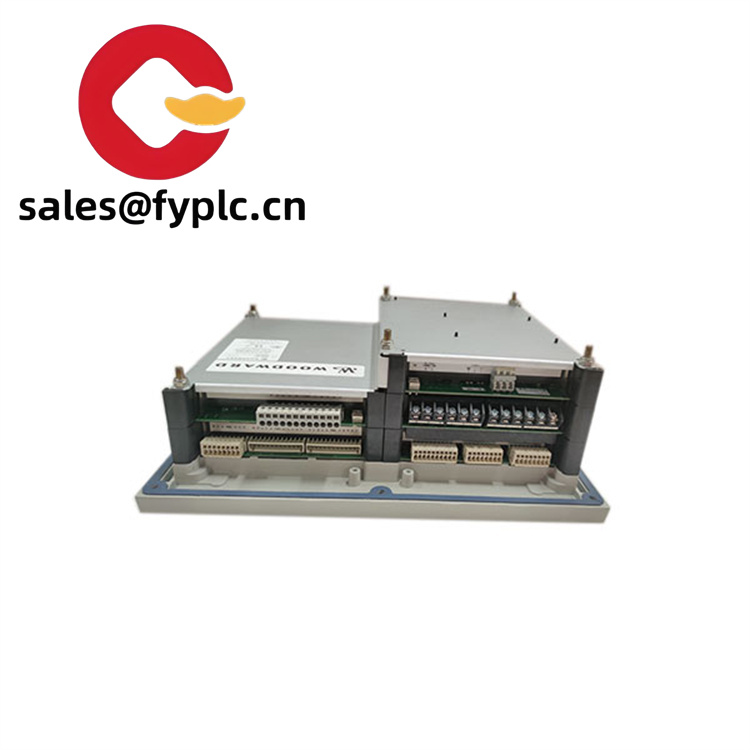

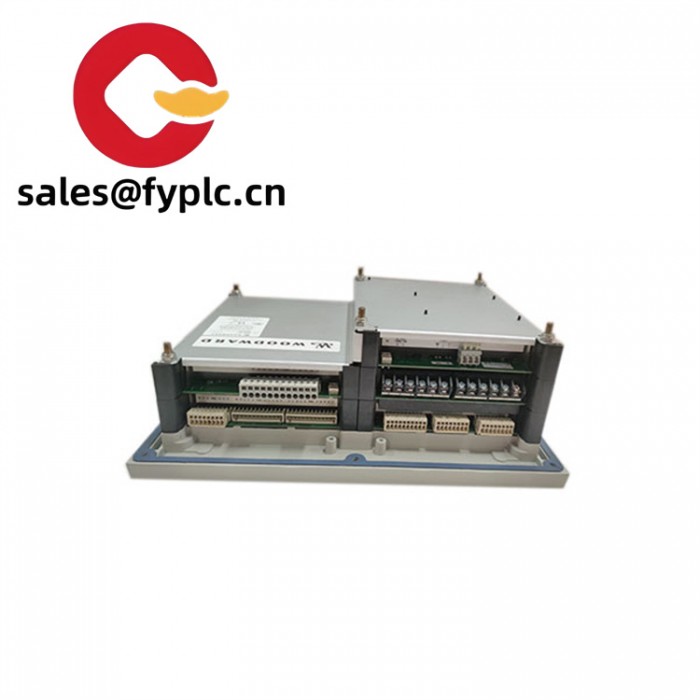

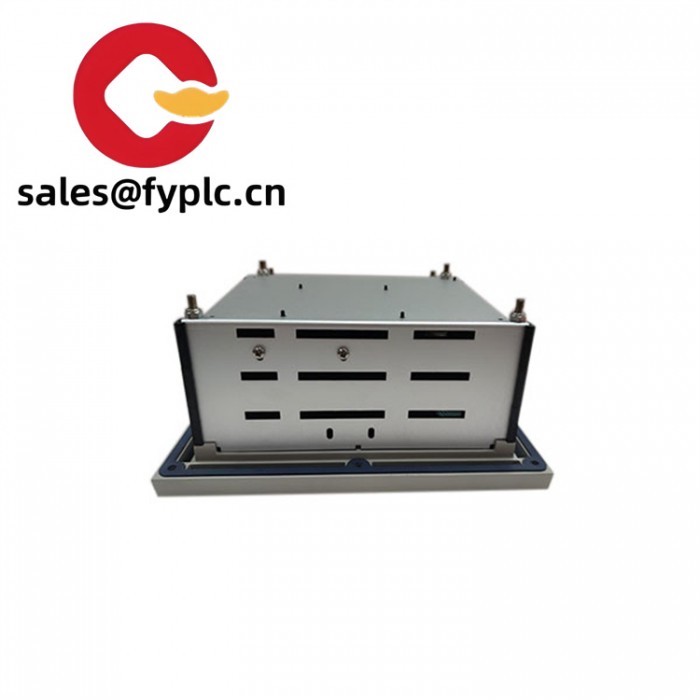

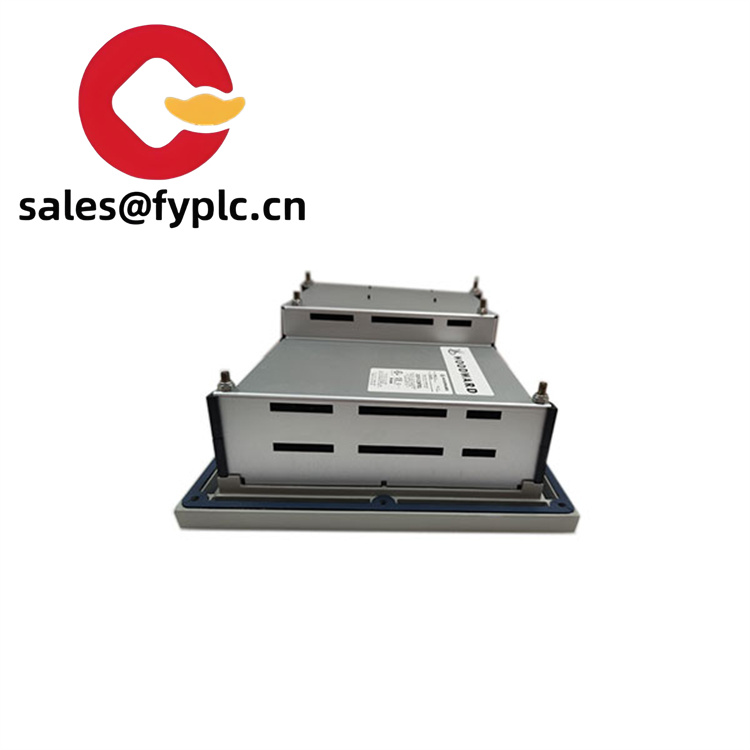

WOODWARD 8406-113 Microprocessor Controller Module
8406-113
The WOODWARD 8406-113 comes with built – in communication interfaces, including Modbus. This allows for seamless integration with other devices in the power generation system, such as remote monitoring stations, control centers, and energy management systems. Through the Modbus interface, operators can remotely monitor and control the generator set, receive real – time data, and even program the controller to respond to specific events. This connectivity enhances the overall manageability of the power generation system, especially in large – scale or distributed installations.
For more information, please click on the following link:
|
Label
|
Specification
|
|
Model Number
|
8406 – 113
|
|
Brand
|
Woodward
|
|
Type
|
Generator Control and Engine Management Controller
|
|
Input Voltage
|
48 – 130V AC (PT input), 10 – 30V DC
|
|
Operating Temperature
|
– 15°C to + 65°C (5°F to 149°F)
|
|
Communication Method
|
RS – 485, Modbus
|
|
Mounting
|
Designed for easy installation in control panels
|
|
Weight
|
1.1 kg (2.43 lbs)
|
|
Certifications
|
UL 508, CSA C22.2 No. 14, CE
|
|
Dimensions
|
275mm x 350mm x 65mm (including front panel with keypad and LCD display)
|
|
IP Rating
|
IP20 (front panel), suitable for control cabinet installation
|
|
Protocols Supported
|
Modbus RTU, Modbus ASCII
|
|
Output Signals
|
4 – 20mA, 0 – 10V, Form C relays
|
|
Control Accuracy
|
±0.15% for frequency, ±1.5% for voltage regulation
|
|
Generator Set Compatibility
|
Ideal for generator sets up to 25,000 kW
|
8406-113
The WOODWARD 8406-113 is built to withstand the rigors of industrial environments. Its enclosure is made of rugged materials that resist corrosion and mechanical damage. The internal components are selected for their reliability and ability to operate in the presence of vibration and electromagnetic interference, which are common in power generation facilities. With a wide operating temperature range, it can be used in various climates, from cold regions to hot and humid areas, without compromising performance.
