Description

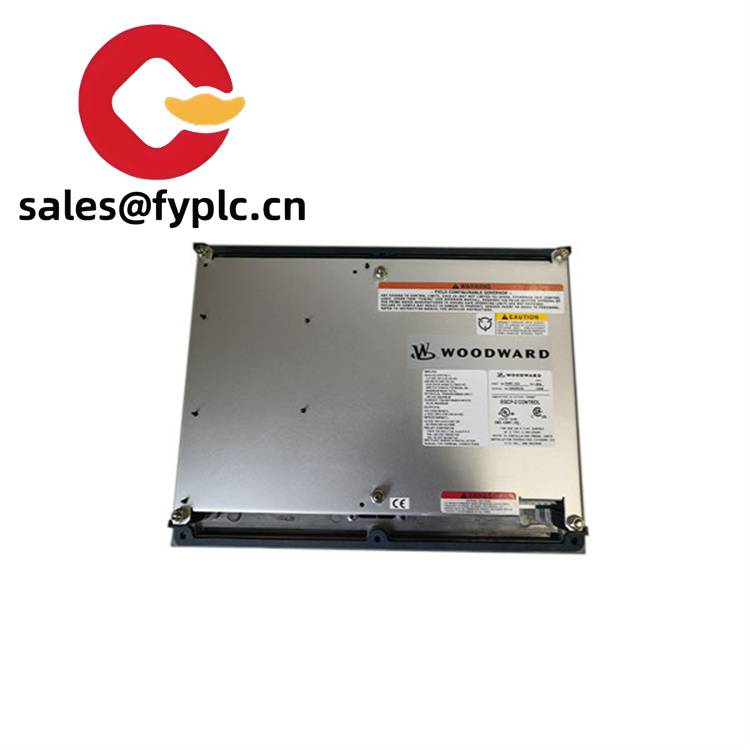

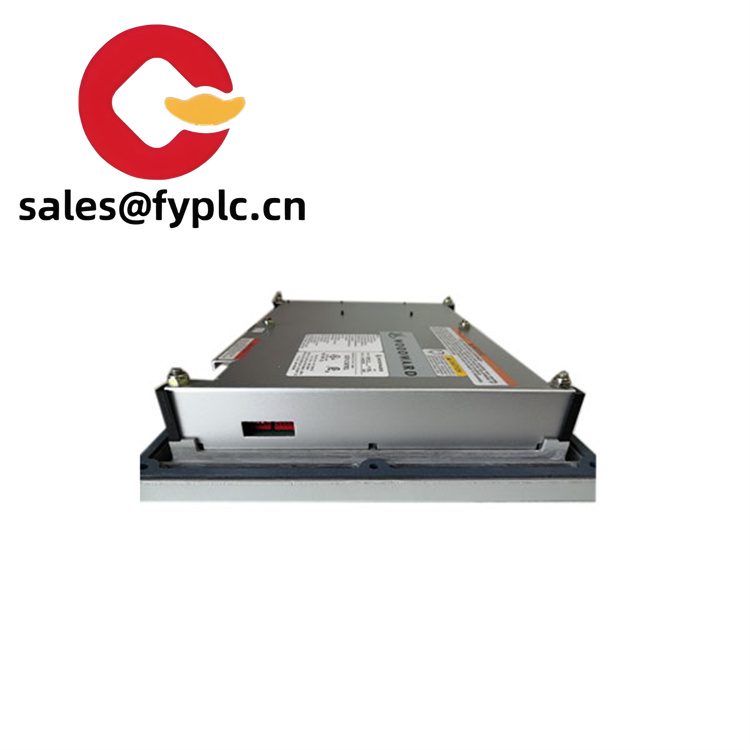

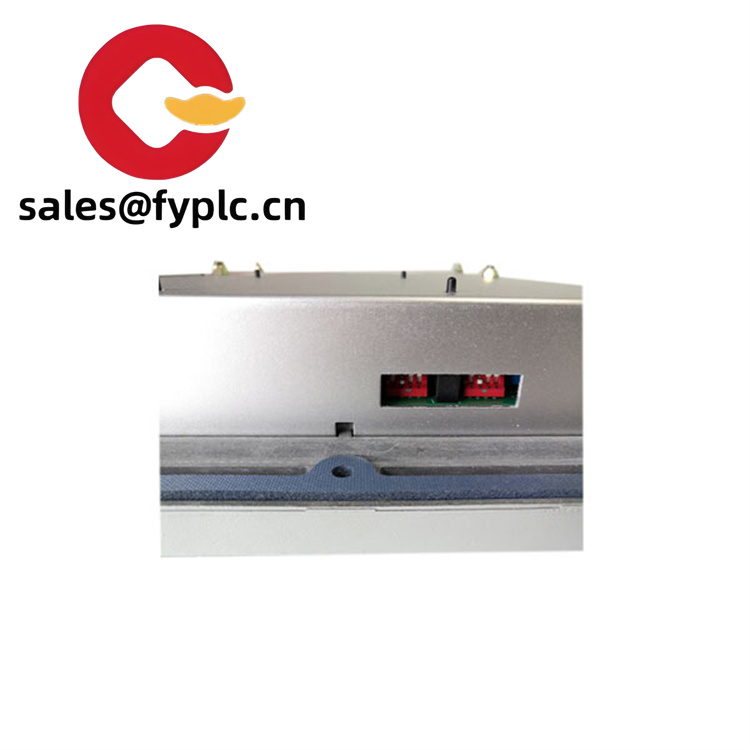

Woodward 8406-121 EGCP-2 control panel generator controller
8406-121
The built-in Modbus communication interface is a game-changer for the Woodward 8406-121. It allows the unit to communicate seamlessly with other devices in the power system, such as remote monitoring stations, control centers, or energy management systems. This enables centralized control and monitoring, enhancing the overall reliability and manageability of the power generation setup.
|
Label
|
Specification
|
|
Model Number
|
8406-121
|
|
Brand
|
Woodward
|
|
Type
|
Generator Control and Engine Management Package
|
|
Input Voltage
|
50-150V AC (PT input), 9-32V DC
|
|
Operating Temp
|
-20°C to +70°C (-4°F to 158°F)
|
|
Communication Method
|
RS-422, Modbus (detailed in Communication Manual 26181)
|
|
Mounting
|
Designed for easy integration into control panels
|
|
Weight
|
1.2 kg (2.65 lbs)
|
|
Certifications
|
UL 508, CSA C22.2 No. 14, CE, IEC 61010-1
|
|
Dimensions
|
282mm x 358mm x 69mm (including front panel with keypad and two backlit LCD display screens)
|
|
IP Rating
|
IP20 (front panel), suitable for control cabinet installation
|
|
Protocols Supported
|
Modbus RTU, Modbus ASCII
|
|
Output Signals
|
4-20mA, 0-10V, Form C relays
|
|
Control Accuracy
|
±0.1% for frequency, ±1% for voltage regulation
|
8406-121
Durability is a cornerstone of the Woodward 8406-121‘s design. It is constructed to withstand a wide temperature range, from the frigid conditions of -20°C to the sweltering heat of +70°C. This makes it suitable for use in diverse environments, from cold storage facilities where temperature control is crucial to hot and humid industrial plants.
8406-121
Commercial buildings, such as hospitals, hotels, and data centers, also benefit greatly from the Woodward 8406-121. In a hospital, a stable power supply is a matter of life and death for patients. The Woodward 8406-121 can be configured to provide seamless backup power in case of a mains failure, ensuring that life-saving medical equipment continues to operate without interruption.
