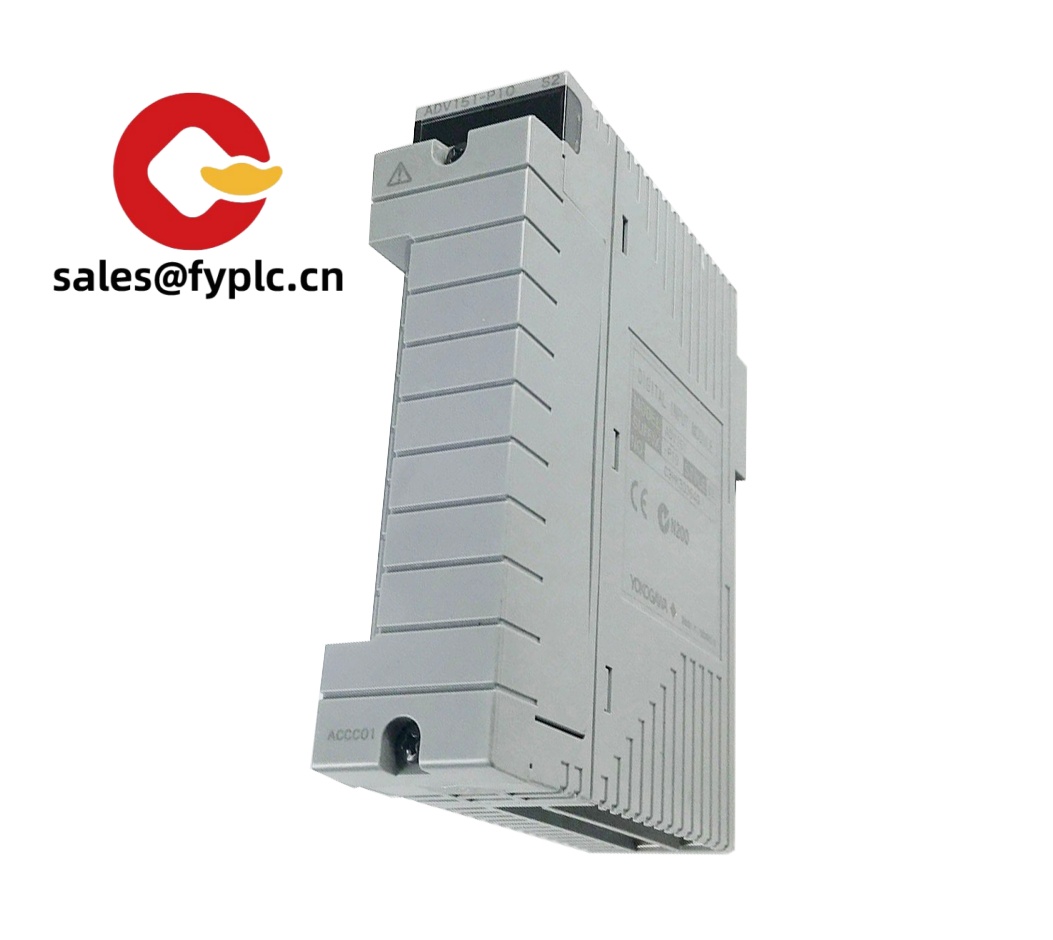

Yokogawa ADV151-P63D5A00 – Field I/O module for reliable 24 VDC digital signal acquisition

The Yokogawa ADV151-P63D5A00 is part of Yokogawa’s FIO family used with CENTUM VP/CS 3000 control systems and related remote I/O nodes. From my experience, the ADV151 series is typically applied as a multi‑channel 24 VDC digital input module—ideal for sensing limit switches, pushbuttons, interlocks, relay contacts, and proximity sensors on process skids. If you’re standardizing on Yokogawa FIO, this module slots straight into the base unit and communicates over the FIO backplane to the node interface without extra converters.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; not more than 1 month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Multi‑channel 24 VDC digital inputs – Typically suited for on/off devices such as limit switches, relays, and dry contacts in process panels.
• FIO backplane integration – Installs on a Yokogawa FIO base; signals are handled through the backplane to the node interface for CENTUM systems.
• Channel isolation and diagnostics – In many cases, FIO DI modules provide per‑channel isolation and fault reporting to speed up troubleshooting.
• Compact single‑slot design – You might notice that one card covers a good number of inputs without eating up cabinet space.
• Field wiring with terminal blocks – Clean termination with labeled terminals; helps maintenance teams during I/O checks.
• Industry‑proven reliability – These modules are commonly seen in power, chemicals, water, and oil & gas where downtime is costly.

Technical Specifications

Note: The suffix P63D5A00 denotes a specific option/revision set from Yokogawa. If you need exact channel count, input thresholds, or terminal mapping for this suffix, share your I/O list and we’ll verify against the datasheet before shipment.

Application Fields

• Chemicals & Petrochem – Monitoring pump permissives, interlocks, valve limit switches, and ESD panel inputs.
• Power Generation – Turbine and BOP panel contacts, MCC status, breaker position, and protection relays (dry contact outputs).
• Water & Wastewater – Level switch alarms, blower and pump run feedback, gate end-stops, panel pushbuttons.
• Oil & Gas – Skid instrumentation (filters, separators), wellhead switchgear feedback, compressor panel trips.
• Pharma & Food – Utility panels, CIP/SIP skid interlocks, safety gate switches where clean DI acquisition is needed.

Advantages & Value

• Reliability in harsh service – It appears that these modules maintain signal integrity well in electrically noisy cabinets, which reduces nuisance trips.
• Native system compatibility – No protocol bridges; works within the Yokogawa FIO ecosystem for CENTUM—simplifies engineering and spares.
• Cabinet density – Compact card size means more I/O per panel, often cutting enclosure footprint and wiring trays.
• Lifecycle support – Yokogawa’s long product support windows help maintenance planning and spare parts stocking.
• Procurement clarity – Clear module coding by suffix makes cross-checking BOMs easier; we can help validate revisions before dispatch.

Installation & Maintenance

• Cabinet environment – Keep within 0–55 °C, non‑condensing humidity. Provide ventilation and avoid mounting near high‑heat sources or VFDs without shielding.
• Wiring practices – Use 24 VDC field power with proper fusing; separate DI field cables from high‑power lines; label commons and channel returns to avoid ground loops.
• Base and terminals – Install on the designated Yokogawa FIO base; torque terminal screws per Yokogawa guidelines; verify channel numbering against drawings.
• Commissioning – Perform point‑to‑point checks, debounce settings (if used), and alarm logic validation in the DCS before running live.
• Maintenance – Periodically re‑tighten terminals, inspect for corrosion, and keep firmware/configuration backups. Replacement is typically plug‑in if the system is placed in a safe maintenance state.

One thing I appreciate is how predictable the I/O testing goes with these. A maintenance lead at a water treatment plant told us their team shaved hours off FAT because channel diagnostics quickly pinpointed miswired commons.

Quality & Certifications

• Certifications – Typically CE compliant; many FIO modules carry UL and RoHS conformity. Specific marking depends on the exact suffix and production lot.
• Manufacturer warranty – Standard 1‑year (365 days) warranty coverage with our documented QA and packaging process.

Recommended Complementary Components

• Yokogawa FIO Node Interface Unit – Models such as ANB10D/ANB11D are commonly paired for backplane communication to the control network.
• FIO Base/Terminal Blocks – Matching base units and removable terminal blocks for clean field wiring and fast replacement.
• 24 VDC Power Supply – Industrial grade, properly sized for the number of DI loads and coil wetting current as required.

If you share your cabinet layout or I/O schedule, we can double‑check channel counts, terminal assignments, and the ADV151-P63D5A00 suffix compatibility with your installed node so there are no surprises during commissioning.
