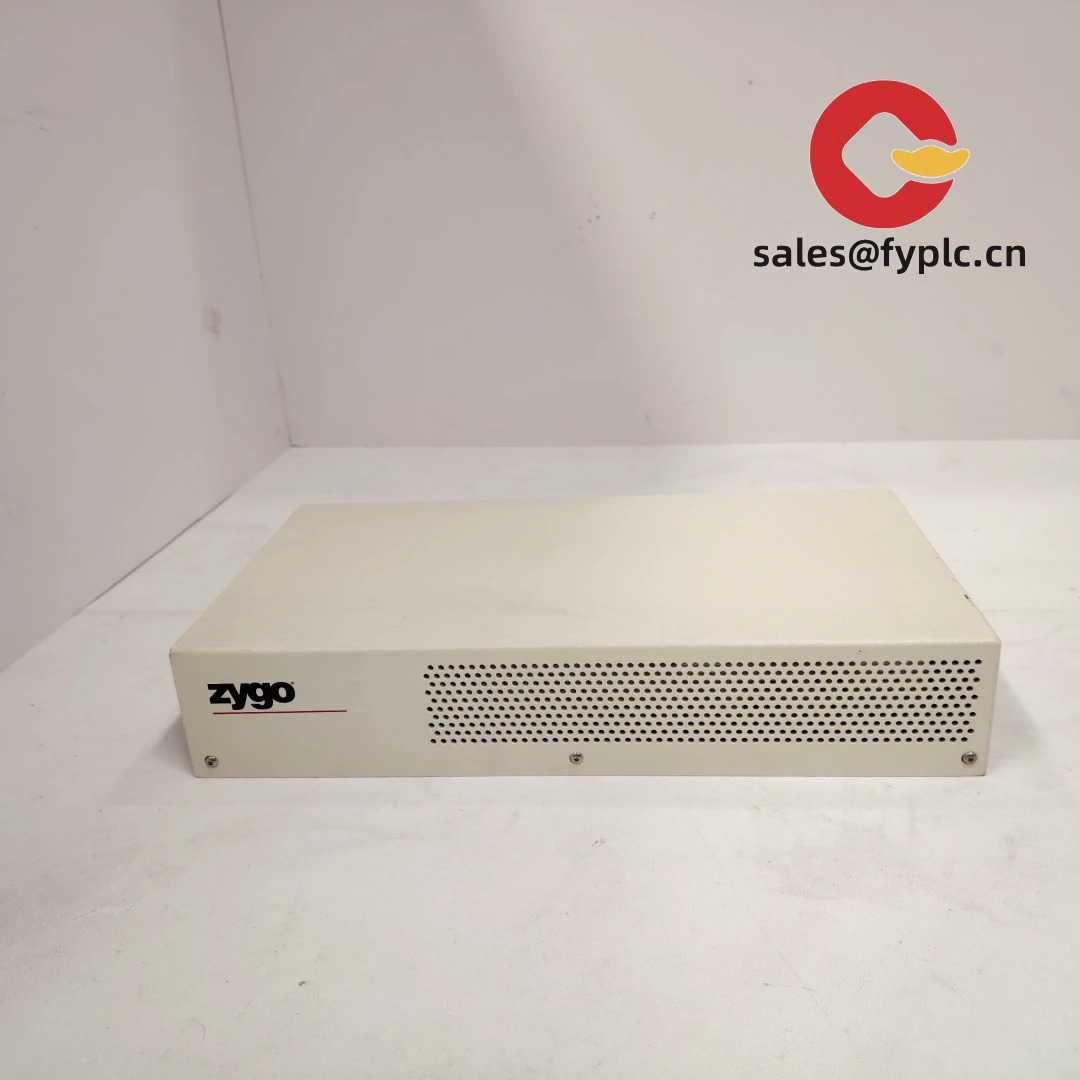

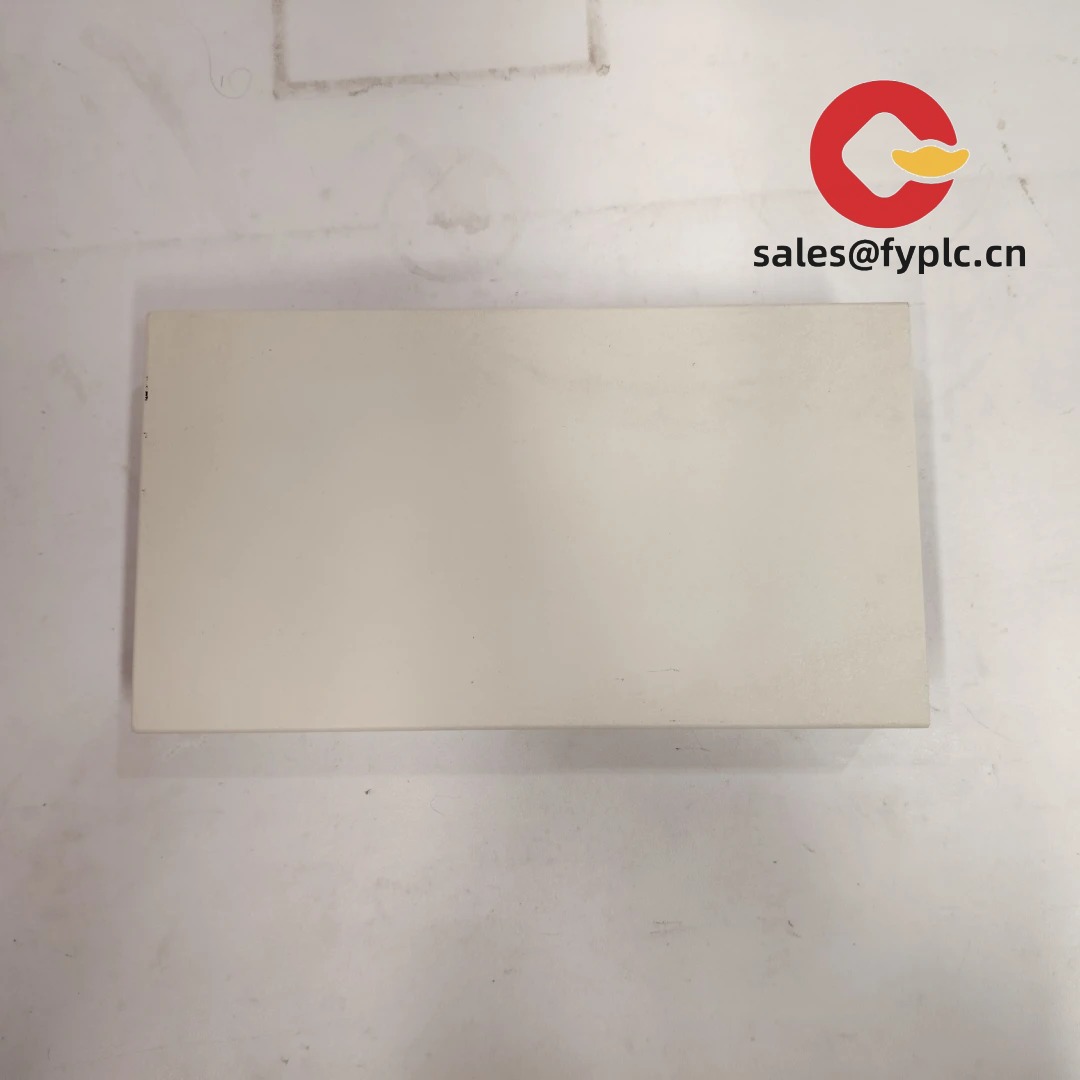

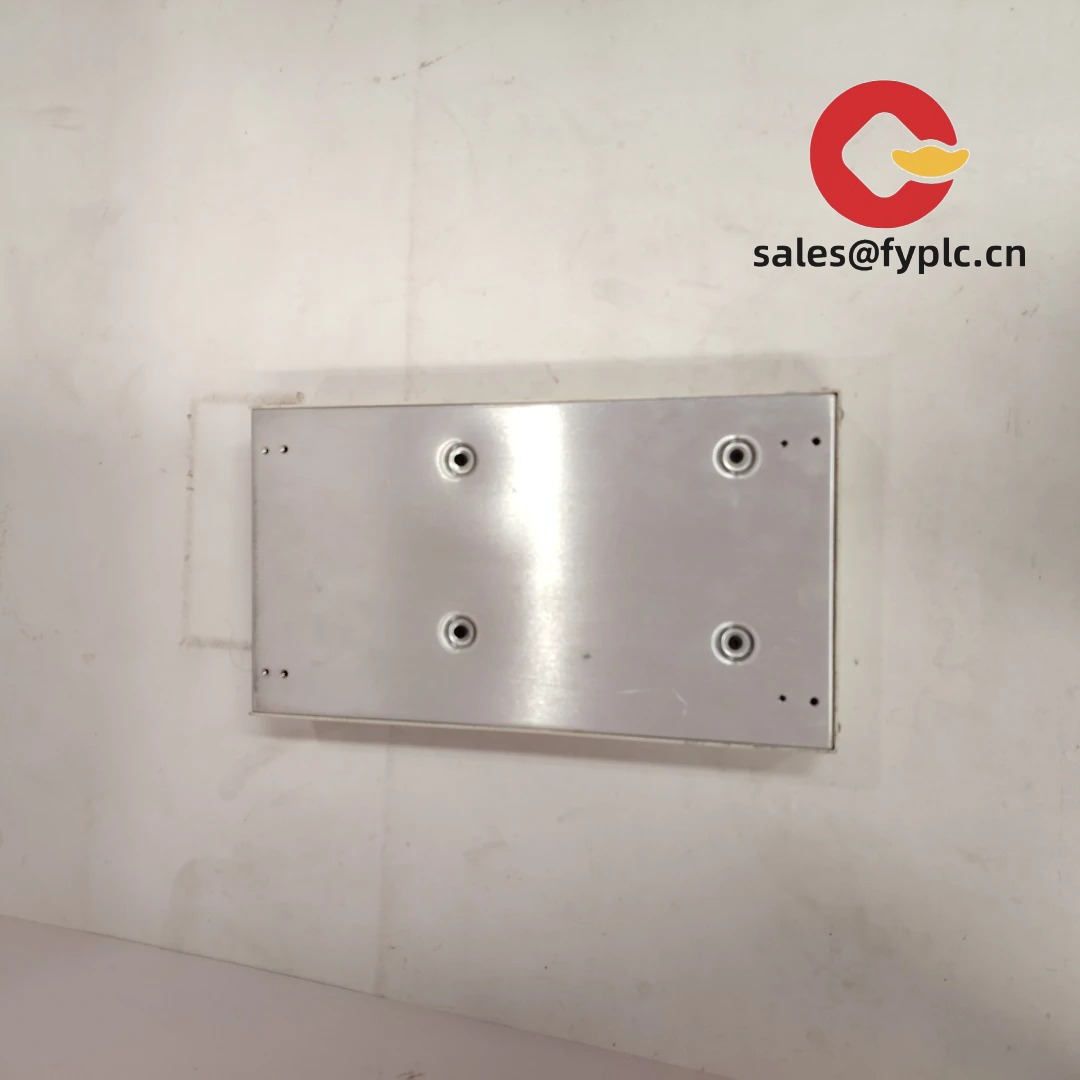

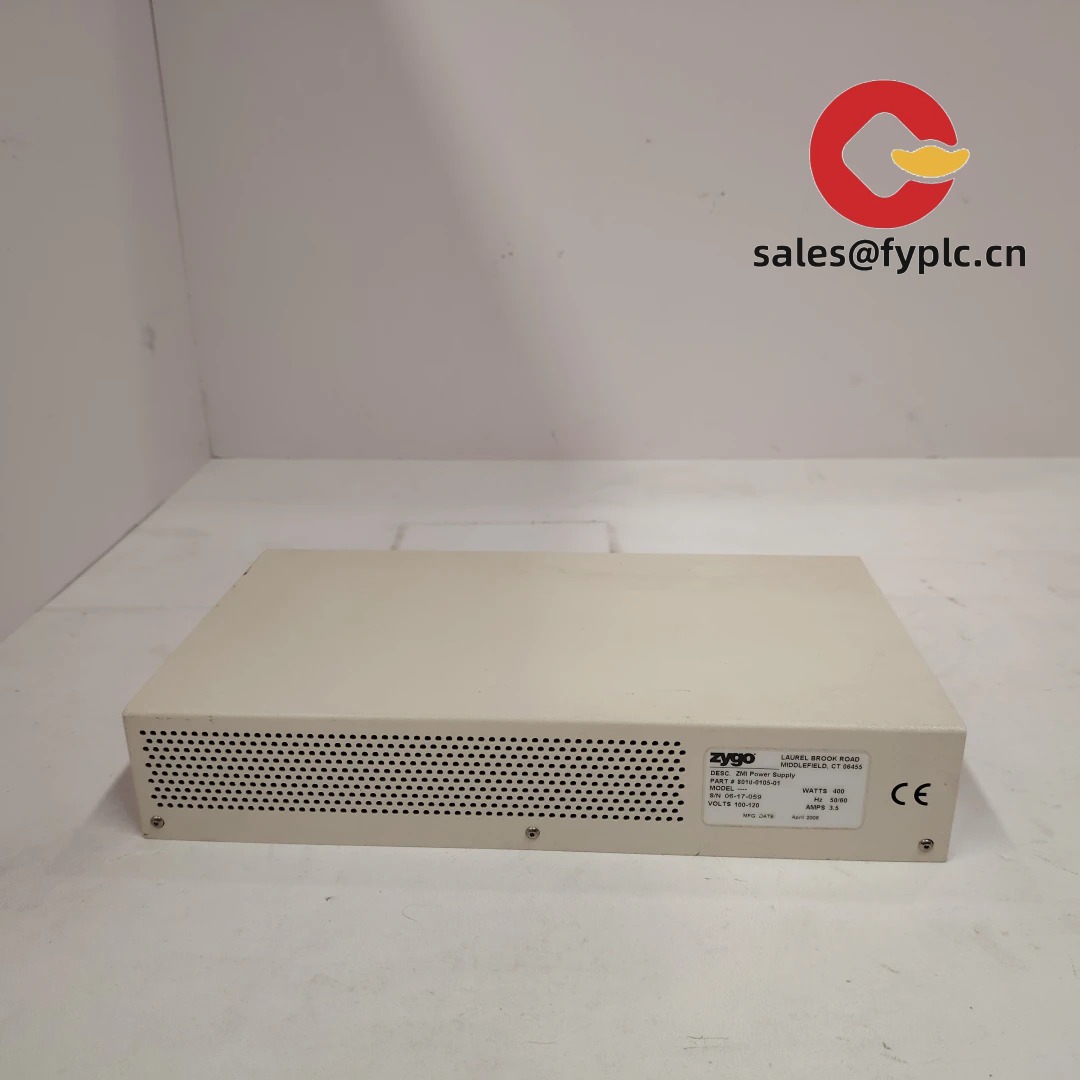

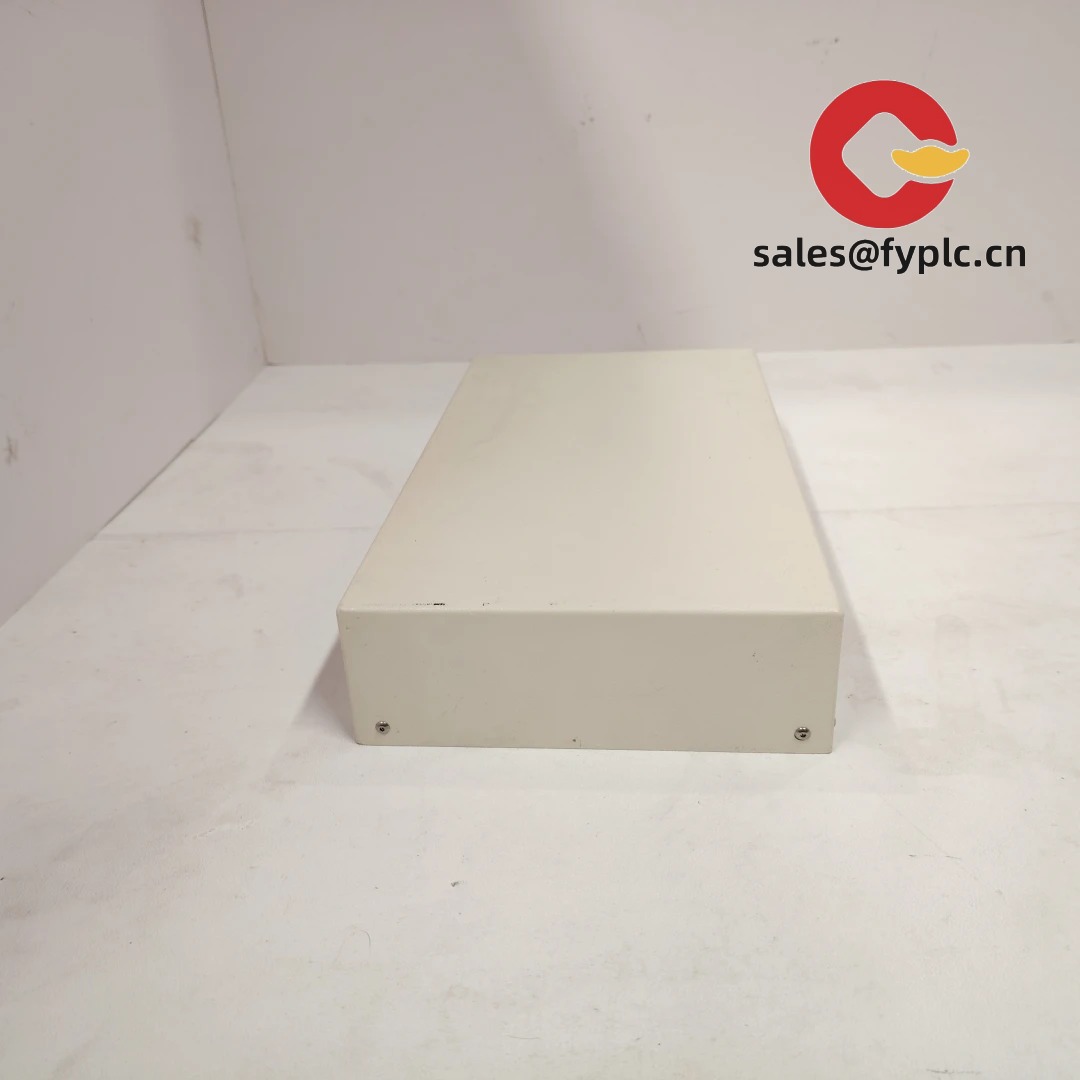

ZYGO 8010-0105-01 / 7702 Interferometer Measurement Module – Precision position metrology for ZMI systems

The ZYGO 8010-0105-01 / 7702 designation points to a ZMI-series measurement module used in heterodyne laser interferometer setups. From my experience, this type of board sits in a ZYGO controller chassis and handles real‑time displacement data from interferometer heads, delivering nanometer‑class position feedback to motion systems. You might notice that different builds pair the 7702 board with various ZMI optics and receivers; that’s typical—plants mix and match to match axis count and stage travel needs.

Company’s Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment method: 50% advance payment; full payment for delivery
• Express delivery methods: FedEx, UPS, DHL

Key Features

• Heterodyne laser interferometry
  – Processes ZYGO ZMI interferometer signals for high‑accuracy, low‑drift position feedback.
• Multi‑axis capable architecture
  – Supports one or more axes depending on the configured optics/receivers; scalable with additional modules.
• Real‑time position output
  – Deterministic data to the host controller via the ZYGO backplane and encoder‑style outputs for motion systems.
• Integrated diagnostics
  – Front indicators and software status help spot alignment or signal issues quickly; in many cases this saves hours during ramp‑up.
• Backplane integration
  – Clean fit within ZYGO ZMI chassis; no external power bricks or ad‑hoc cabling.
• Low noise design
  – Shielded signal paths and reference‑grade timing keep jitter and interpolation artifacts to a minimum.

Technical Specifications

Application Fields

This module is typically used wherever sub‑micron motion control depends on dependable interferometer feedback. Common scenarios we see:

• Semiconductor stages – wafer/reticle positioning with nanometer‑class repeatability.
• Precision optics – polishing and metrology benches needing absolute displacement feedback.
• Ultra‑precision machine tools – linear/plane mirror interferometry for closed‑loop control.
• Coordinate metrology & alignment – long‑travel axes with traceable length measurement.
• Scientific instruments – beamlines and lab stages where drift and noise must be tightly controlled.

Advantages & Value

• Measurement confidence – ZYGO interferometry provides reliable, traceable displacement data for high‑value processes.
• Compatibility – Natively matches ZMI receivers and optics; integration risk is typically lower than piecing together mixed hardware.
• Throughput gains – Stable, real‑time outputs help motion controllers settle faster and reduce rework.
• Serviceability – Clear indicators and structured diagnostics make it easier to separate optics issues from electronics.
• Lifecycle support – A large installed base and well‑documented configurations aid spares planning and migrations.

Installation & Maintenance

• Environment – Use a clean, temperature‑stable cabinet; avoid airflow that introduces thermal gradients across the optics path.
• Cabling – Route shielded interferometer cables away from drives and RF sources; bond shields per ZYGO guidance to limit EMI.
• Grounding – Single‑point grounding for chassis and optics mounts typically reduces noise and drift.
• ESD & handling – Treat the board and connectors with ESD precautions; power down per procedure before insertion/removal.
• Routine checks – Verify signal strength/contrast, clean optical components, and back up configuration; firmware alignment should match the host chassis revision.

Quality & Certifications

• Compliance – Typically CE; RoHS conformity is common for electronics of this class.
• Traceability – Designed for precision metrology chains; often used in ISO‑controlled production environments.
• Warranty – 365 days from delivery.

A lithography customer phrased it well: “Once we stabilized the optics, the ZMI board just tracked—no surprises during long runs.” That predictability is usually why teams stick with ZYGO for precision motion feedback.
