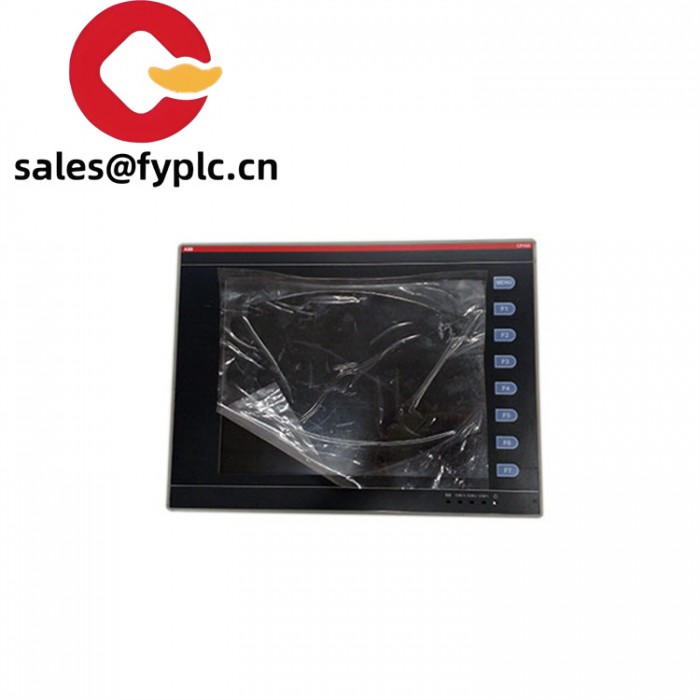

ABB CP450-T-ETH simple operation touch screen

Display	10.4-inch TFT LCD with resistive touchscreen
IP Rating	IP65/NEMA4 (dust and water ingress protection)
Communication Ports	RS232, RS485, RS422, Ethernet (TCP/IP)
Input Voltage	24V DC (±10%)
Power Consumption	≤15W

Categories: ABB

Need help?
Email: sales@fyplc.cn
Tel/WhatsApp: +86 173 5088 0093

Description
Reviews (0)

Description

ABB CP450-T-ETH simple operation touch screen

CP450-T-ETH

The ABB CP450-T-ETH is a versatile industrial control panel designed to bridge operator interaction and system automation in demanding environments. Classified as part of ABB’s CP400 series, this 10.4-inch TFT touchscreen panel combines robust hardware with flexible communication capabilities, making it suitable for applications ranging from process control to machine automation. Below is a detailed analysis of its features, specifications, and practical use cases.

Label	Specification
Model	CP450-T-ETH
Brand	ABB
Type	Industrial Control Panel (HMI)
Display	10.4-inch TFT LCD with resistive touchscreen
IP Rating	IP65/NEMA4 (dust and water ingress protection)
Communication Ports	RS232, RS485, RS422, Ethernet (TCP/IP)
Input Voltage	24V DC (±10%)
Power Consumption	≤15W
Processor	32-bit RISC microcontroller (ABB-specific)
Memory	8MB Flash, 8MB RAM
Operating Temperature	-25°C to +60°C (extended range)
Dimensions	297mm (W) × 222mm (H) × 52mm (D)
Weight	~1.9 kg
Certifications	CE, UL (pending verification)
Software	CP400Soft for application development

CP450-T-ETH

Operator Interface

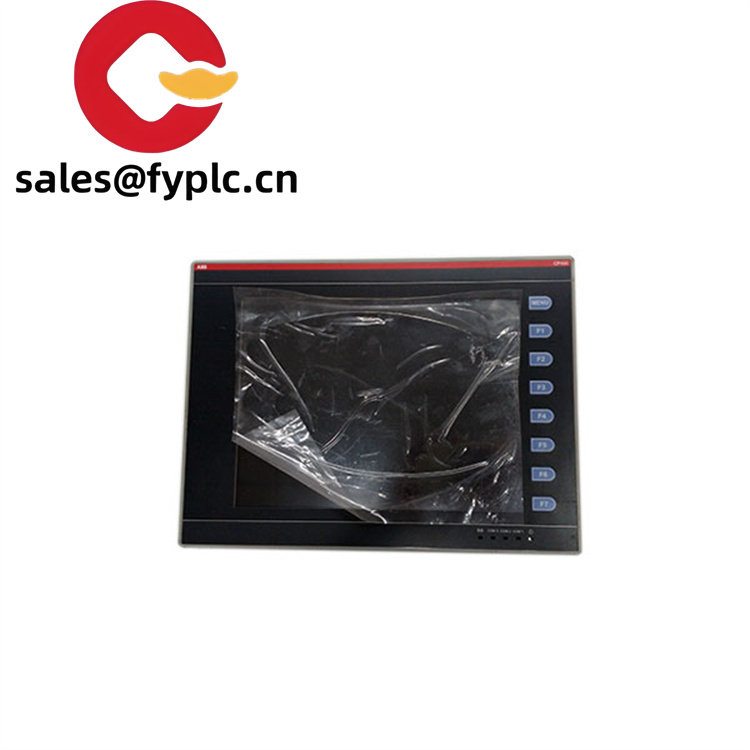

The CP450-T-ETH features a high-resolution TFT display with resistive touch technology, enabling intuitive interaction with industrial systems. Its eight configurable function keys (F1-F7) and a dedicated menu key allow quick access to critical operations, such as parameter adjustments or screen navigation . Calibration is performed via the system menu command “F4-Set,” ensuring accurate touch responsiveness even in vibration-prone environments.Robust Communication Capabilities

CP450-T-ETH

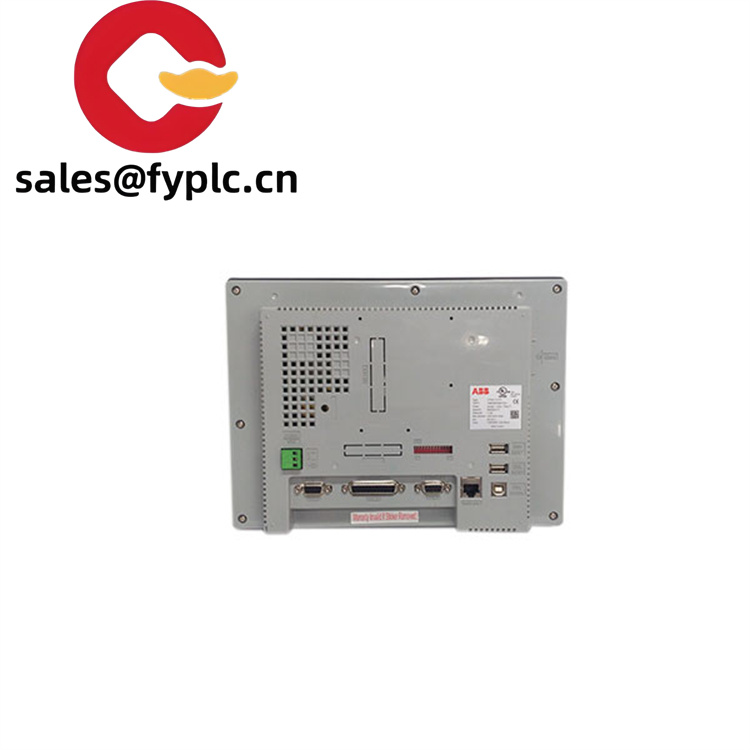

Equipped with multiple serial ports (COM1-COM3) and an Ethernet interface, the CP450-T-ETH supports seamless integration with various controllers and devices. It communicates via protocols like Modbus RTU/ASCII, Profibus DP, and Ethernet/IP, making it compatible with ABB’s Freelance 800F DCS, AC800M PLCs, and third-party systems . The Ethernet port enables remote monitoring and firmware updates, reducing downtime during maintenance.
