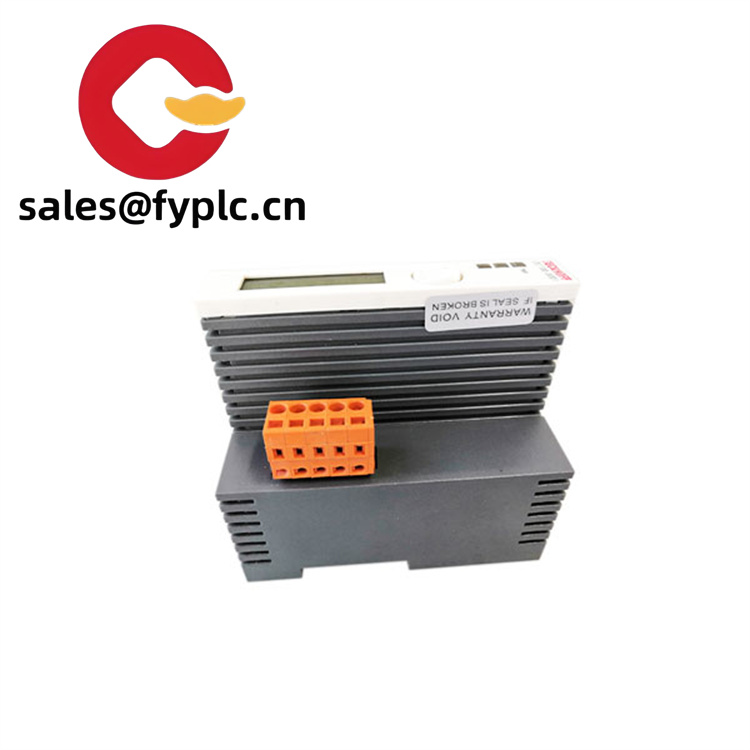

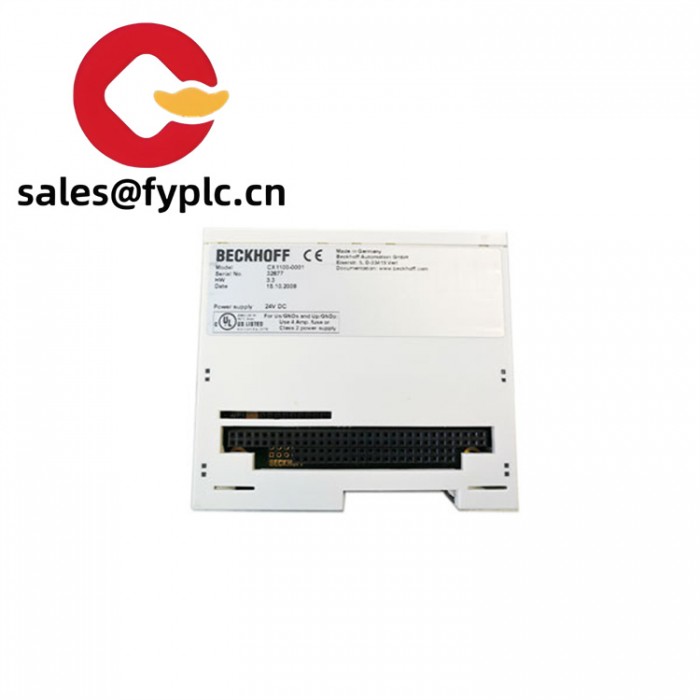

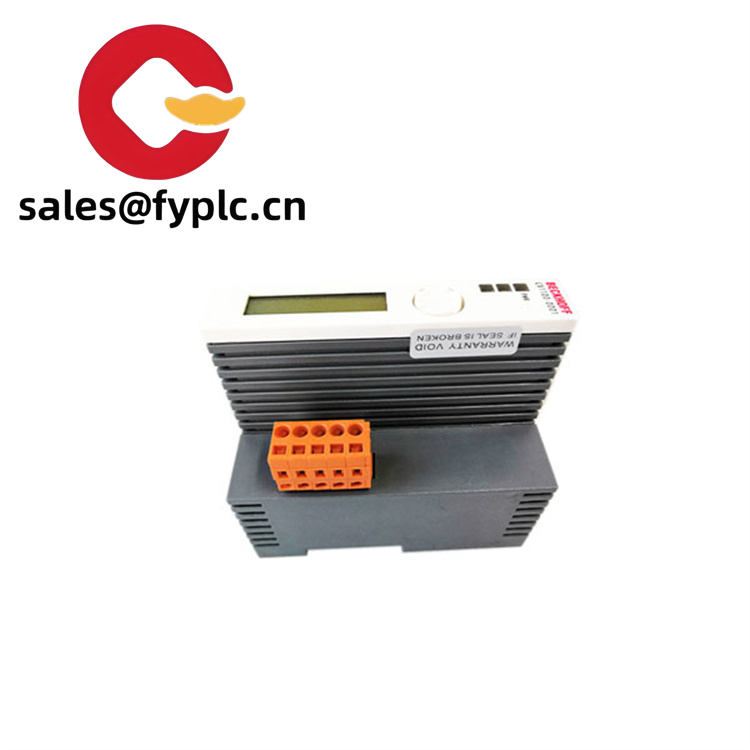

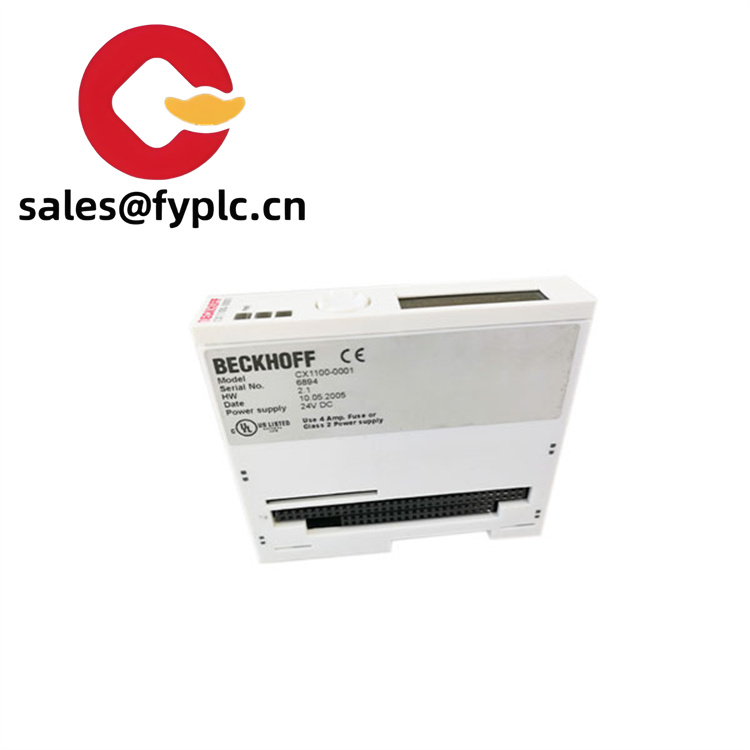

The BECKHOFF CX11000001 (officially denoted as CX1100-0001 in Beckhoff’s product nomenclature) is a compact, high-performance power supply module designed to deliver stable 24V DC power for Beckhoff’s CX1000 series embedded industrial PCs (e.g., CX1010, CX1020) . Engineered for mission-critical automation applications, this module combines robust power conversion with advanced diagnostic capabilities, making it ideal for industries such as automotive manufacturing, process control, and smart infrastructure.

Label	Specification
Model	CX1100-0001 (CX11000001 as listed by vendors)
Brand	BECKHOFF
Type	Power Supply Unit (PSU) with integrated NVRAM
Input Voltage	24V DC (-15%/+20%)
Output Voltage	24V DC (stabilized for CX1000 series)
Power Capacity	Supports full power requirements of CX1010/CX1020 CPUs
NVRAM	8KB non-volatile RAM for voltage-failure-safe process data storage
Display	2-line x 16-character FSTN LCD for system status and user messages
Physical Dimensions	45mm (W) x 100mm (H) x 91mm (D)
Weight	~180g
Environmental
Operating Temp	0°C to +55°C (standard); -25°C to +60°C (extended variant available)
Storage Temp	-25°C to +85°C
IP Rating	IP20 (indoor use, dust-protected)
EMC Compliance	EN 61000-6-2 (immunity), EN 61000-6-4 (emissions)
Certifications	CE, UL (pending verification)

For mission-critical systems demanding precision, resilience, and seamless integration, the BECKHOFF CX11000001 stands as a benchmark power supply solution. Its combination of advanced diagnostics, fail-safe data storage, and compatibility with Beckhoff’s automation suite makes it an indispensable asset for modern industrial control architectures.

Ecosystem Compatibility

• CX1010/CX1020 Embedded PCs: Serve as the control core, with the CX11000001 providing power and data storage.
• EtherCAT Terminals: Expandable I/O modules (e.g., EL1008, EL2008) for analog/digital signal handling.
• TwinCAT Automation Software: Enables PLC, motion control, and IoT integration directly on the CX1000 platform.
• CX1100-0002/0003 Variants: Offer I/O connectivity for hybrid systems combining legacy and modern components.
