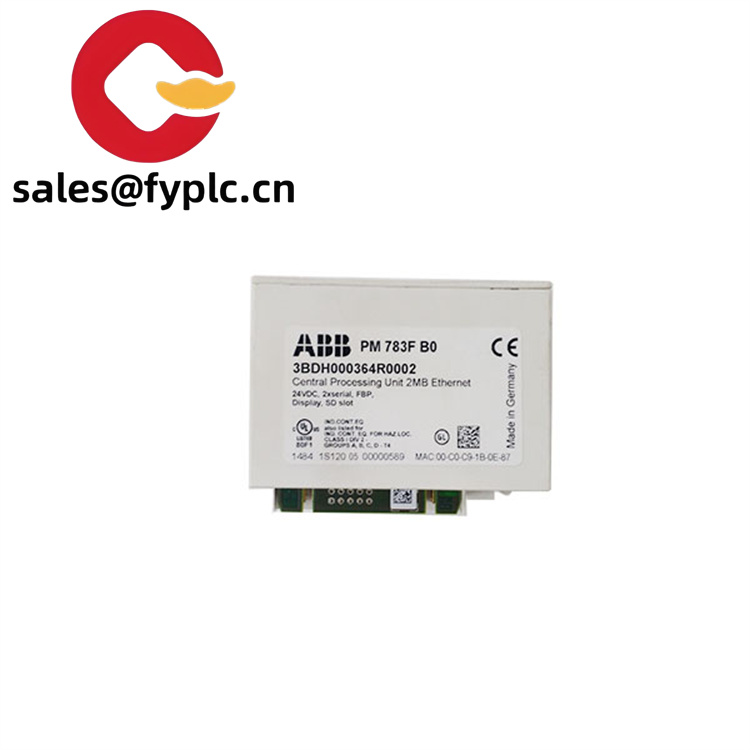

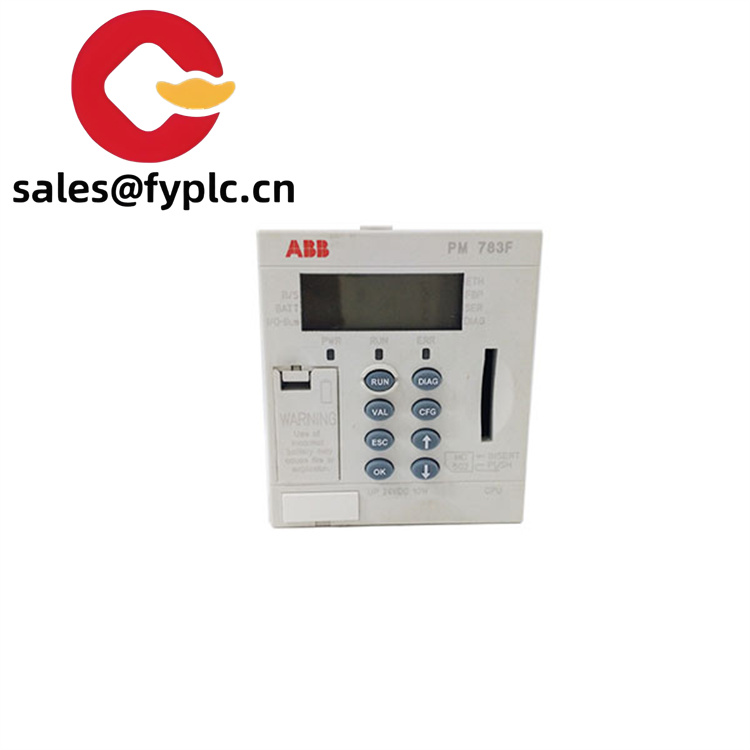

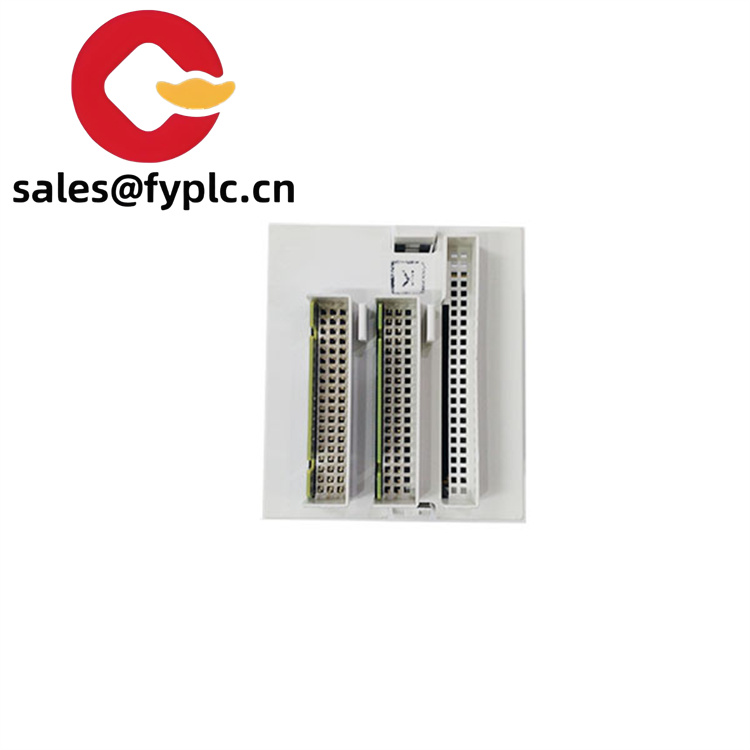

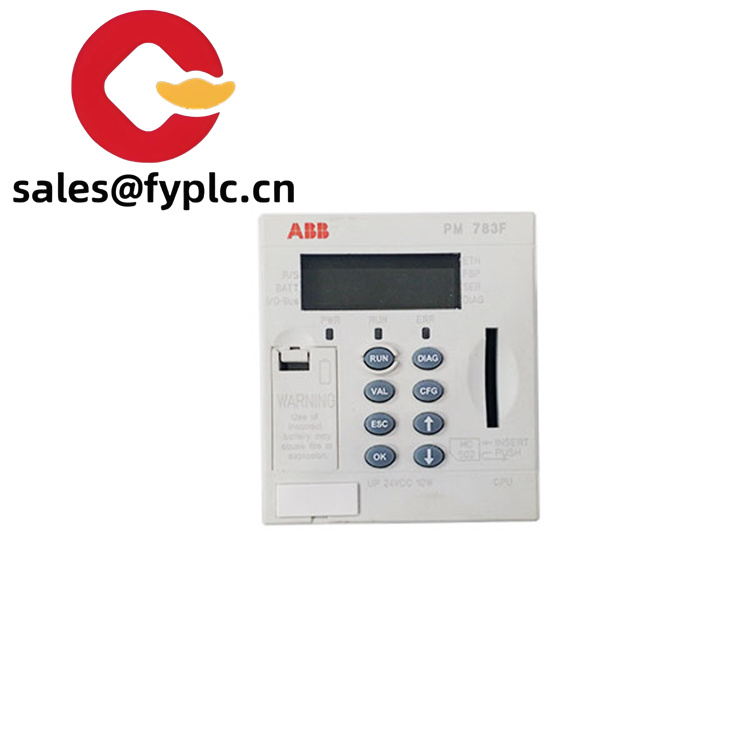

ABB PM783FB0 Programmable Output Processor High-voltage Module
PM783FB0
The ABB PM783FB0 is engineered to serve as the central processing unit in distributed control systems (DCS) and hybrid automation architectures. It excels at handling real-time data processing, executing pre-programmed control algorithms, and facilitating communication with I/O modules, human-machine interfaces (HMIs), and other system components. Whether deployed in manufacturing plants, water treatment facilities, or food processing units, the ABB PM783FB0 provides the stability and processing efficiency needed to keep industrial operations running smoothly.
Technical Highlights
|
Label
|
Specification
|
|
Model Number
|
PM783FB0
|
|
Brand
|
ABB
|
|
Type
|
Processor Module
|
|
Input Voltage
|
24V DC (20.4-28.8V DC)
|
|
Operating Temp
|
-25°C to +70°C
|
|
Communication Method
|
1x Fast Ethernet (10/100BASE-T), 1x RS-232
|
|
Processor
|
32-bit RISC (200 MHz clock speed)
|
|
Memory
|
16MB RAM, 8MB Flash (expandable via CompactFlash up to 2GB)
|
|
Mounting
|
DIN Rail (35mm)
|
|
Certifications
|
CE, UL, cUL, RoHS, IEC 61010-1
|
|
Protocols Supported
|
Modbus TCP/IP, IEC 61850, DNP3, Profinet (via optional gateway)
|
|
Interfaces
|
1x CompactFlash slot, LED status indicators (power, run, error, communication), reset button
|
|
Processing Capacity
|
Up to 10,000 I/O points, 500 control loops
|
|
Mean Time Between Failures (MTBF)
|
150,000 hours
|
What makes the ABB PM783FB0 stand out is its balanced blend of processing power and energy efficiency. The 32-bit RISC processor, paired with 16MB RAM and 8MB Flash memory, strikes an optimal balance—handling typical control tasks with ease without consuming excessive power, which is a boon for systems where energy efficiency is a priority. Unlike overly specialized modules, it’s designed for flexibility, supporting a range of industry-standard protocols that allow it to integrate with existing equipment from different manufacturers, reducing the need for costly system overhauls.
