Description

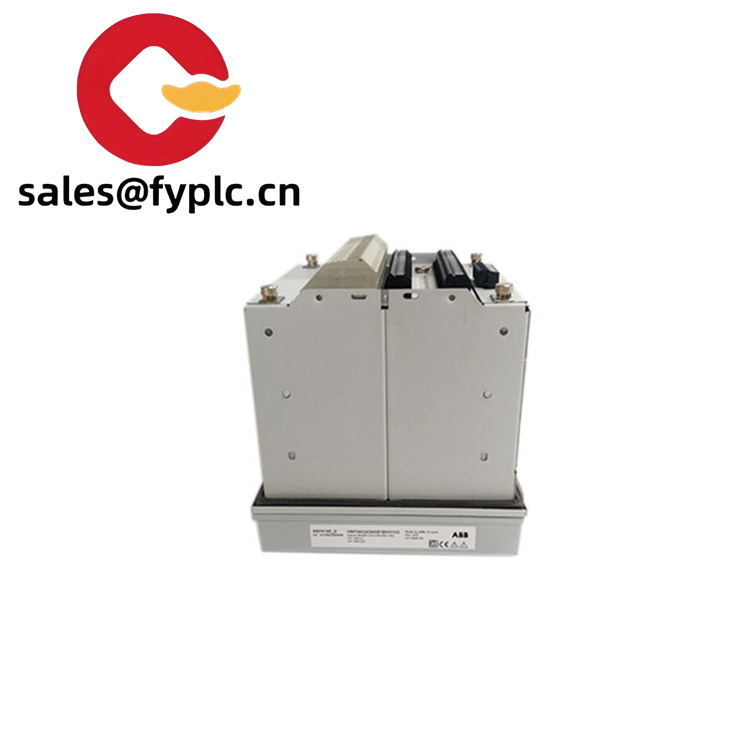

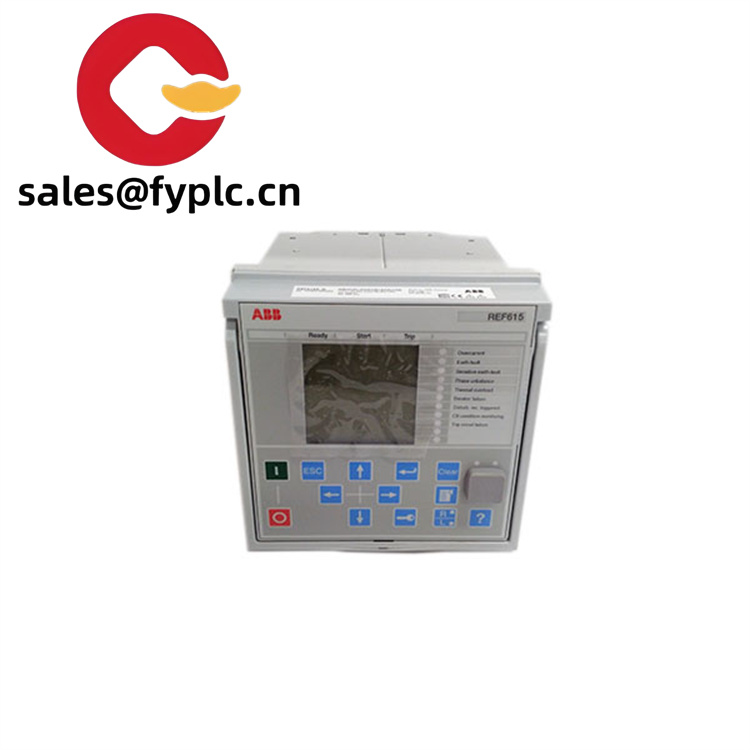

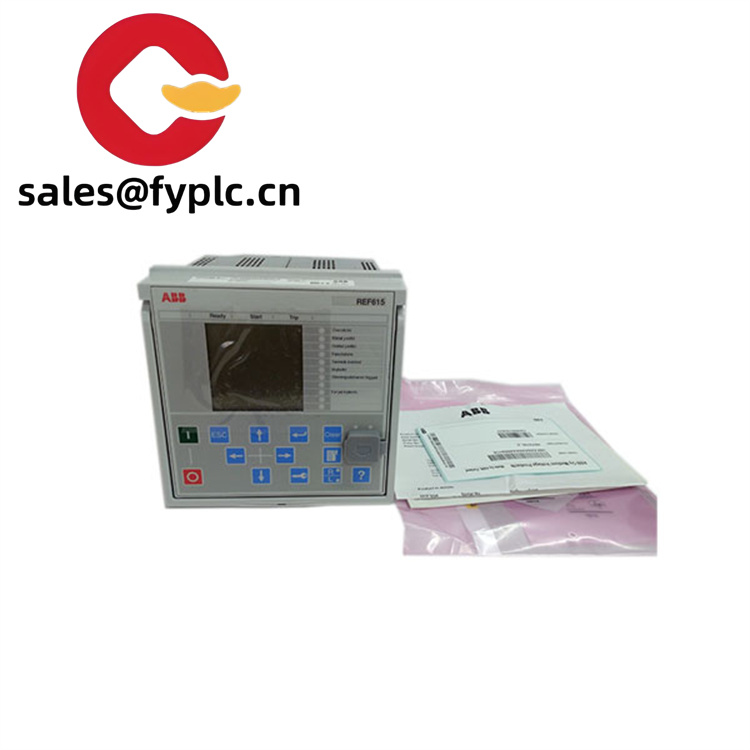

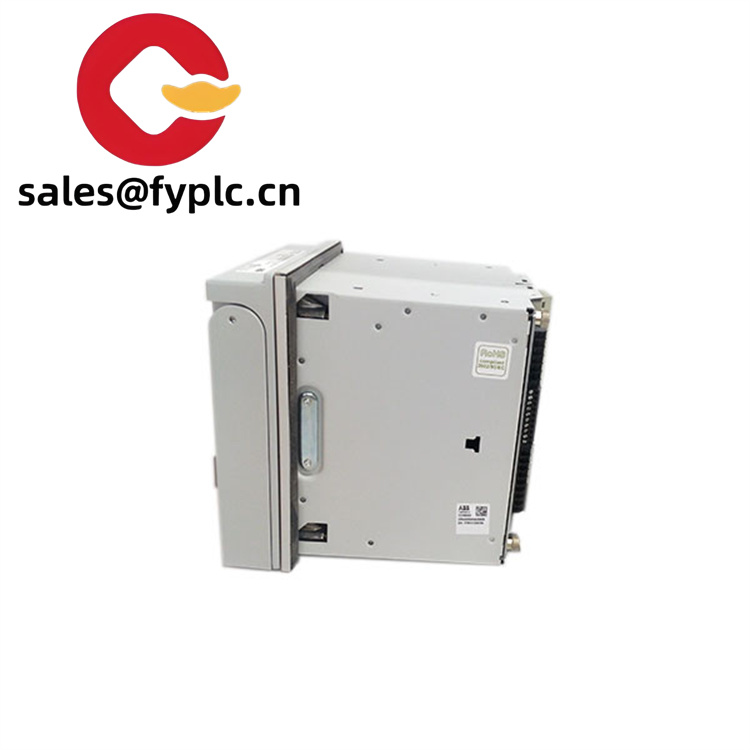

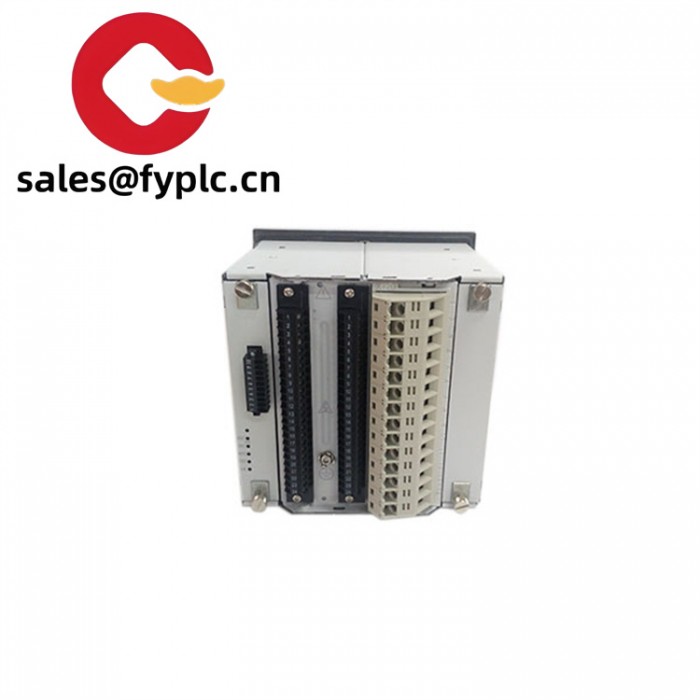

ABB REF615E Control Output Board Input/Output Module
REF615E
The ABB REF615E is a high – performance digital protective relay meticulously crafted to safeguard electrical systems from a multitude of faults and abnormal operating conditions. Acting as a reliable sentinel within power networks, it continuously and accurately monitors key electrical parameters like current, voltage, frequency, and power. Leveraging advanced protection algorithms, it can quickly detect deviations from normal operation and execute precise protective actions, such as tripping circuit breakers or sending out alarms, to isolate faults and minimize potential damage to the electrical infrastructure.
|
Label
|
Specification
|
|
Model Number
|
REF615E
|
|
Brand
|
ABB
|
|
Type
|
Digital Protective Relay
|
|
Rated Voltage
|
Auxiliary: 100 – 240 V AC; System: [Specify applicable voltage range, e.g., 3 – 132 kV]
|
|
Rated Current
|
1 A or 5 A
|
|
Protection Functions
|
Overcurrent protection, Earth fault protection, Differential protection, Voltage protection, Frequency protection, Distance protection, Auto – reclosing, Power swing detection
|
|
Tripping Time
|
Ultra – fast, as low as [X] ms for critical protection functions
|
|
Communication Interfaces
|
Ethernet (supporting IEC 61850), PROFIBUS DP, Modbus TCP, Bluetooth (optional)
|
|
Operating Temperature
|
-40°C to +80°C
|
|
Mounting Options
|
DIN rail mount, panel mount
|
|
Weight
|
Approximately 2.8 kg
|
|
Certifications
|
CE, UL, cUL, IEC 61850 – 3, IEEE 1613
|
REF615E
The ABB REF615E excels in real – world electrical environments, thanks to its comprehensive and advanced protection features. The distance protection function accurately locates faults along transmission lines by measuring impedance, enabling targeted isolation of faulty sections and reducing the impact on the power grid. The auto – reclosing feature automatically attempts to restore power after a fault clearance, enhancing the reliability of the power supply. The power swing detection function is crucial in preventing unnecessary tripping during power swings, maintaining the stability of the grid. With its ultra – fast tripping times, the REF615E can swiftly clear faults, protecting valuable electrical equipment and avoiding cascading failures.
REF615E
In terms of communication, the ABB REF615E offers versatile connectivity options. The support for IEC 61850 via Ethernet enables seamless integration into modern substation automation systems, facilitating interoperability with other compliant devices and enabling efficient data exchange, remote monitoring, and control. PROFIBUS DP and Modbus TCP provide compatibility with a wide range of existing industrial and power system devices.
