BENTLY NEVADA 3500/92 136180-01 Communication Gateway Module
BENTLY NEVADA 3500/92 136180-01 is a core communication gateway module exclusively developed for the Bently Nevada 3500 series machinery protection monitoring rack, serving as a data bridge between rack monitoring units and plant DCS, PLC and SCADA control systems. This BENTLY NEVADA 3500/92 136180-01 collects real-time vibration, axial displacement, rotating speed, temperature and alarm data from all internal rack modules, then transmits standardized industrial data via Ethernet and serial ports to upper monitoring platforms. Widely adopted in power, petrochemical, oil & gas and heavy machinery industries, the BENTLY NEVADA 3500/92 136180-01 enables centralized machinery health monitoring and remote predictive maintenance of critical rotating equipment.

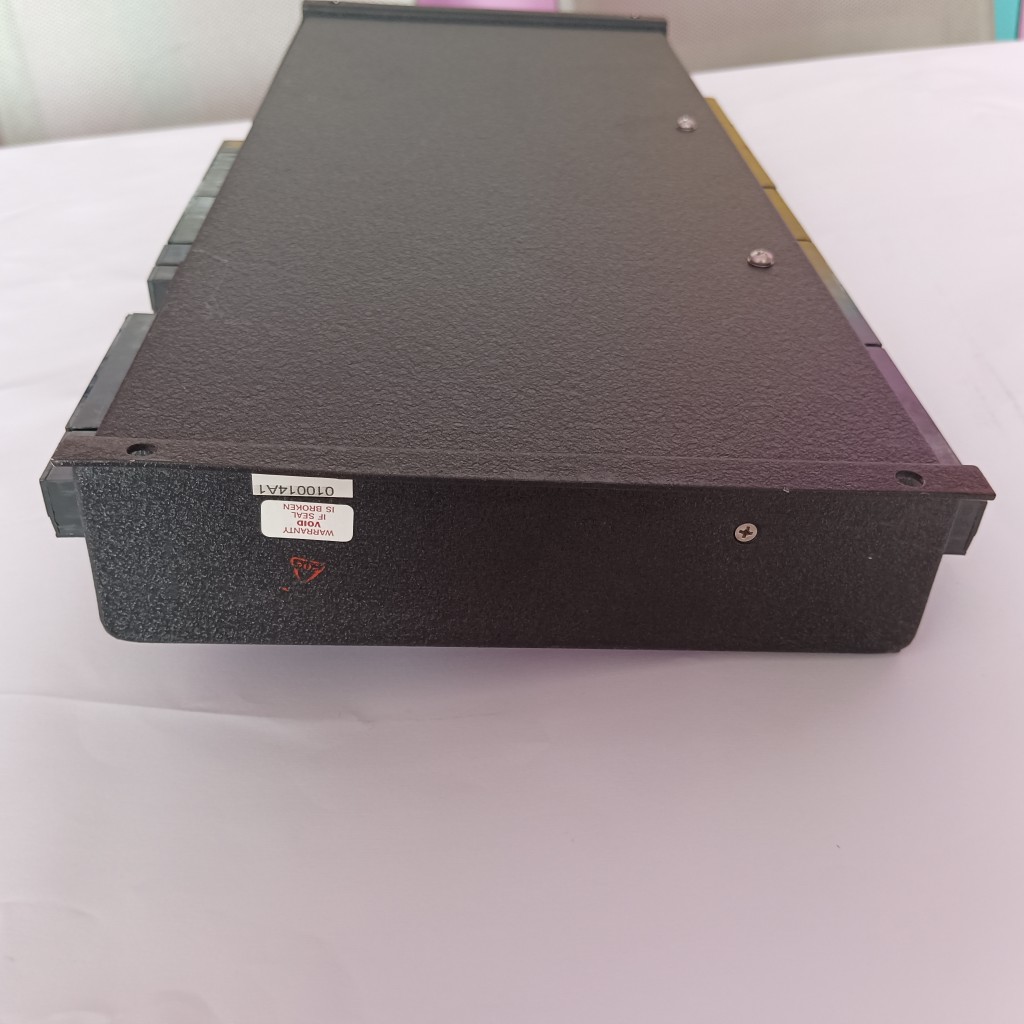

The product images shown are not actual photos. There are still more models that have not been launched yet. For more details or price negotiations, please contact us: Email: sales@fyplc.cn | WhatsApp: +86 15359458915
Core Product Specifications & Procurement Guarantee
- Brand: BENTLY NEVADA
- Model: 3500/92, Part No. 136180-01
- Availability: In Stock
- Delivery Time: Within 3 working days after payment confirmation
- Guarantee: 12 months full functional warranty
- Condition: Original brand new, factory sealed packaging
- Communication Interfaces: Dual RJ45 Ethernet (10BASE-T), RS232/RS422/RS485 serial ports
- Supported Protocols: Modbus TCP/IP, Modbus RTU, proprietary Bently Nevada configuration protocol
- Max Supported Rack Modules: Up to 64 monitoring modules per gateway
- Data Refresh Speed: Full rack data update within 1 second
- Working Temperature: -40°C ~ +70°C operating, -40°C ~ +85°C storage
- Size/Weight: Standard rack hot-swap card, net weight approx. 0.32kg
- Power Supply: 24VDC backplane power supply, low power consumption
- Certifications: IEC 61010-1, CE industrial compliance
- Design Feature: Hot-swappable without rack power cut-off
Key Features & Advantages
- Dual Network Redundancy & Multi-protocol Compatibility: Dual Ethernet ports support redundant network transmission; compatible with mainstream Modbus protocols, realizing seamless data docking with all mainstream DCS and SCADA systems.
- Hot-Swap Maintenance Design: Supports online module replacement without shutting down the entire machinery protection rack, greatly shortening equipment maintenance downtime for continuous production plants.
- Centralized Remote Configuration & Diagnostics: All 3500 rack parameters can be edited and fault codes read remotely via Ethernet, simplifying on-site debugging and equipment predictive troubleshooting.
Industry Applications
- Thermal & Nuclear Power Plants: Connect turbine, generator and large fan vibration monitoring racks to plant DCS for real-time equipment safety supervision.
- Petrochemical & Refinery Plants: Realize data interconnection of centrifugal compressors, high-speed pumps and steam turbines for early fault warning.
- Onshore & Offshore Oil & Gas Facilities: Transmit rotating machinery status data to central control rooms for remote monitoring of compressors and wellhead equipment.
- Heavy Industry & Steel Mills: Monitor large rolling mills, blowers and rotating kilns to support equipment condition-based maintenance.
