EMERSON A6370D overspeed measurement monitoring module
| Input Voltage | 24 V DC ±10% (nominal) |
| Sensor Compatibility | Eddy-current, Hall-effect, and magnetic (VR) sensors |
| Measurement Range | 0–30,000 RPM (adjustable via software) |
| Accuracy | ±0.5% of full scale |
| Response Time | ≤12.5 ms (automatic mode) |
Categories: EMERSON
Need help?
Email: sales@fyplc.cn
Tel/WhatsApp: +86 173 5088 0093
Description

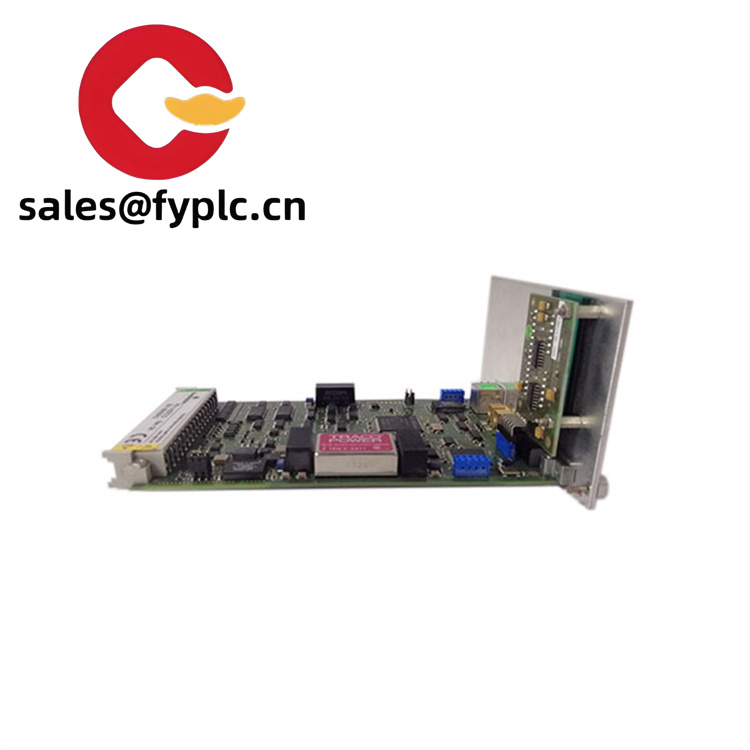

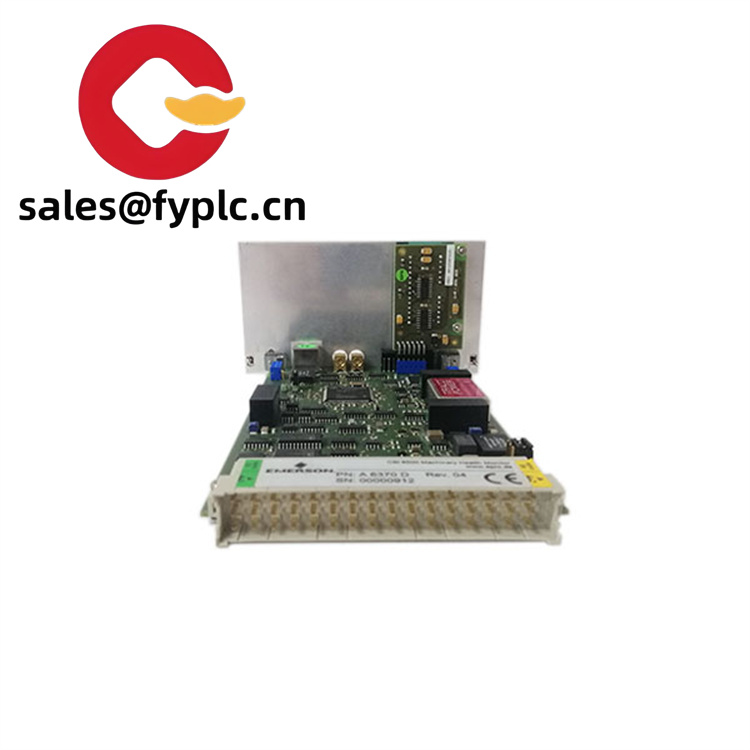

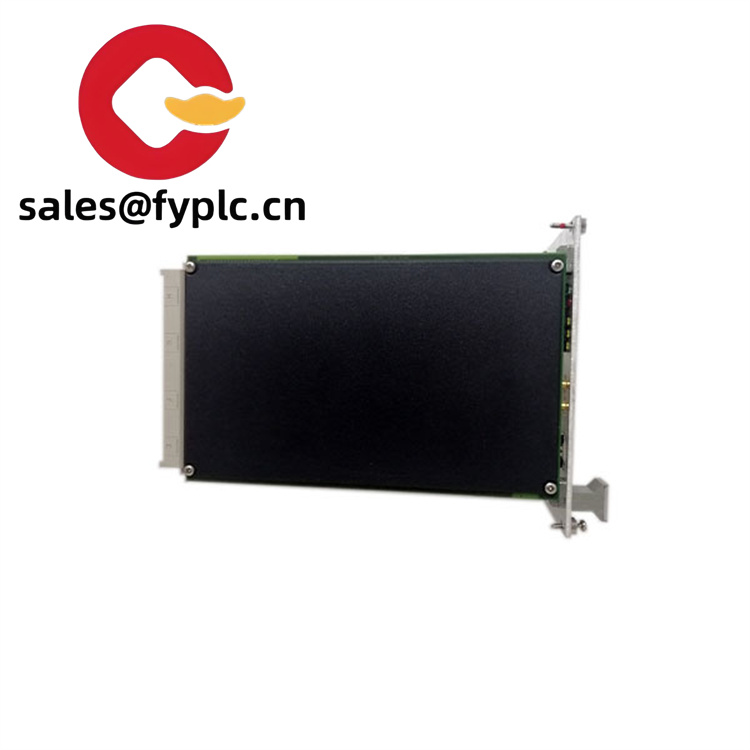

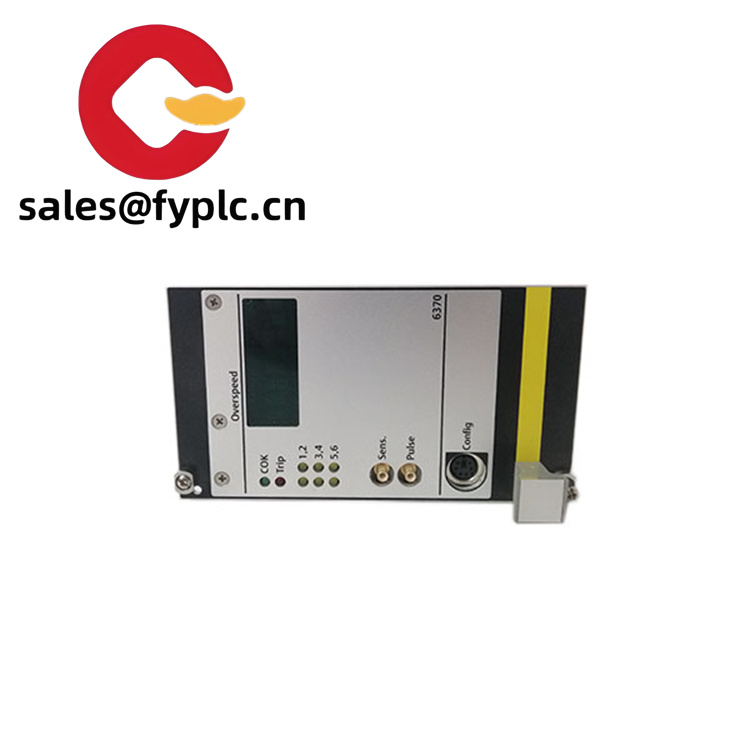

EMERSON A6370D overspeed measurement monitoring module
A6370D
The EMERSON A6370D is a high-performance overspeed protection monitor designed for critical rotating machinery in industrial environments. As part of Emerson’s AMS 6300 SIS (Safety Instrumented System), it ensures real-time speed monitoring and rapid response to prevent catastrophic overspeed events, safeguarding equipment and personnel in industries like power generation, oil & gas, and petrochemicals. Below is a detailed breakdown of its capabilities and specifications.
For more information, please click on the following link:
| Parameter | Specification |
|---|---|
| Model | A6370D |
| Type | Digital Overspeed Protection Monitor (AMS 6300 SIS Series) |
| Input Voltage | 24 V DC ±10% (nominal) |
| Sensor Compatibility | Eddy-current, Hall-effect, and magnetic (VR) sensors |
| Measurement Range | 0–30,000 RPM (adjustable via software) |
| Accuracy | ±0.5% of full scale |
| Response Time | ≤12.5 ms (automatic mode) |
| Communication | RS-485 (Modbus RTU), PROFIBUS DP (optional A6370D/DP variant) |
| Outputs | 7 digital outputs (short-circuit proof), 2 analog outputs (0/4–20 mA), 3 pulse outputs |
| Mounting | 19-inch rack-mount (3 RU height, 84 HP width) with A6371 backplane |
| Dimensions | 211 mm (W) × 130 mm (H) × 43 mm (D) |
| Weight | 490 g (1.08 lb) |
| Environmental | -20°C to +65°C, IP20 (dust protection), withstands vibration (20 m/s²) and shock (100 m/s²) |
| Certifications | SIL 3 (TÜV-certified per IEC 61508), CE, CSA |
A6370D
The EMERSON A6370D is a cornerstone of safety-critical industrial systems, delivering SIL 3-rated overspeed protection with unmatched precision and reliability. Its modular design, wide sensor compatibility, and seamless integration with Emerson’s automation portfolio make it ideal for protecting high-value assets in power, oil & gas, and manufacturing sectors. By combining advanced diagnostics with rugged construction, the A6370D ensures operational continuity while minimizing downtime and maintenance costs. For detailed documentation or customized solutions, contact Emerson’s regional support teams or visit their official resource library .
A6370D
Real-Time Speed Monitoring:
Continuously tracks rotational speed using multiple sensor types, providing high-precision RPM measurements. It supports eddy-current sensors for non-contact measurements and magnetic sensors for robust performance in harsh conditions .
Continuously tracks rotational speed using multiple sensor types, providing high-precision RPM measurements. It supports eddy-current sensors for non-contact measurements and magnetic sensors for robust performance in harsh conditions .
Safety Integrity:
Achieves SIL 3 certification, ensuring reliable overspeed protection in safety-critical applications. The system triggers alarms or emergency shutdowns (ESD) when speed exceeds configurable thresholds, with redundant trip logic for fail-safe operation .
Achieves SIL 3 certification, ensuring reliable overspeed protection in safety-critical applications. The system triggers alarms or emergency shutdowns (ESD) when speed exceeds configurable thresholds, with redundant trip logic for fail-safe operation .
