Description

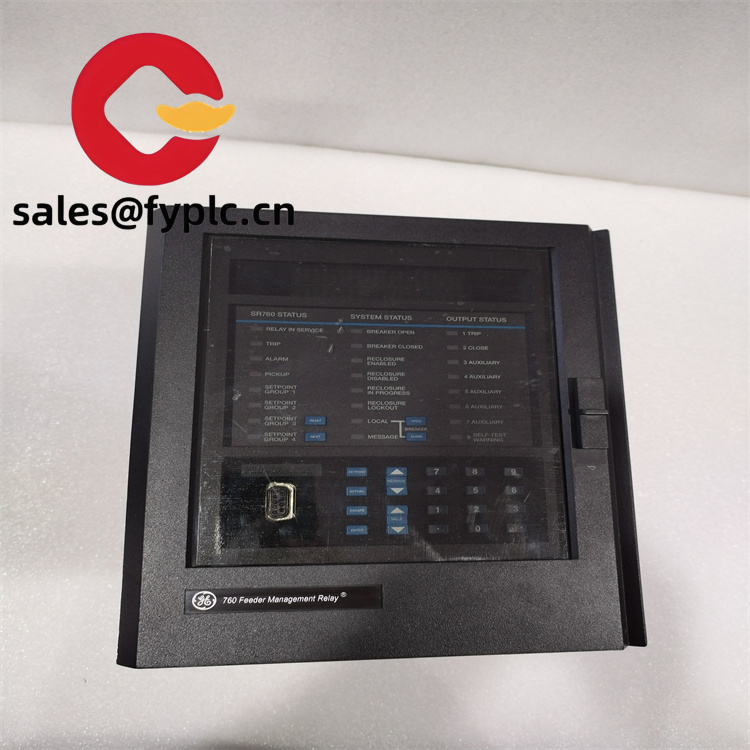

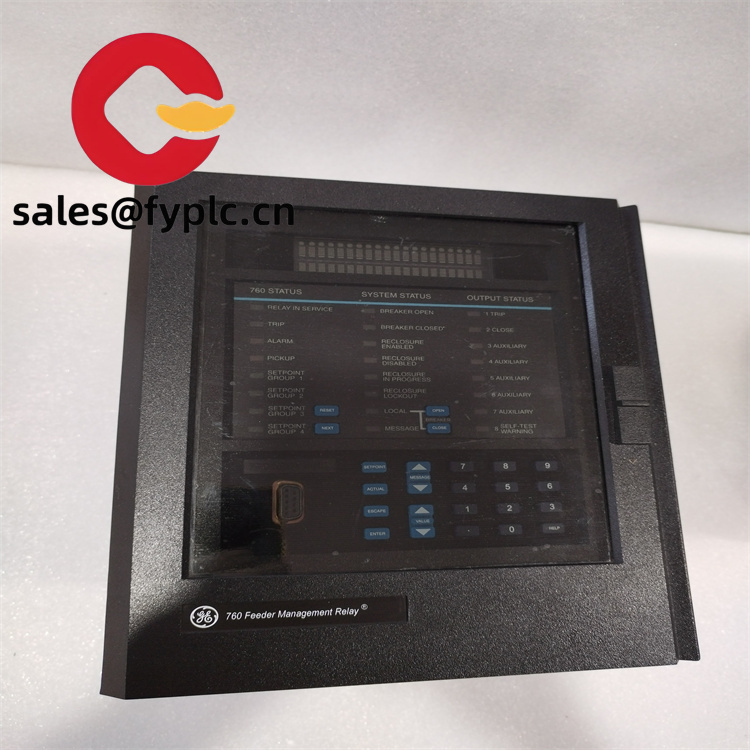

GE 760-P5-G5-S5-HI-A20-R Programmable Logic Controller (PLC)



The GE Multilin 760-P5-G5-S5-HI-A20-R is a high-performance feeder management relay engineered to safeguard and optimize distribution feeder systems in critical power applications. As part of GE’s renowned 750/760 series, this relay combines advanced protection, real-time monitoring, and seamless communication to ensure reliable operation in industrial, utility, and renewable energy environments. With its rugged design and versatile functionality, the 760-P5-G5-S5-HI-A20-R serves as a cornerstone for maintaining grid stability, minimizing downtime, and enhancing energy efficiency.

Label	Specification
Model Number	760-P5-G5-S5-HI-A20-R
Brand	GE Multilin (General Electric)
Type	Feeder Management Relay
Input Voltage	88–300 VDC or 70–265 VAC (48–62 Hz)
Operating Temp	-40°C to +60°C (industrial-grade resilience for extreme environments)
Communication Methods	RS232, RS422/RS485, Ethernet 10Base-T (optional)

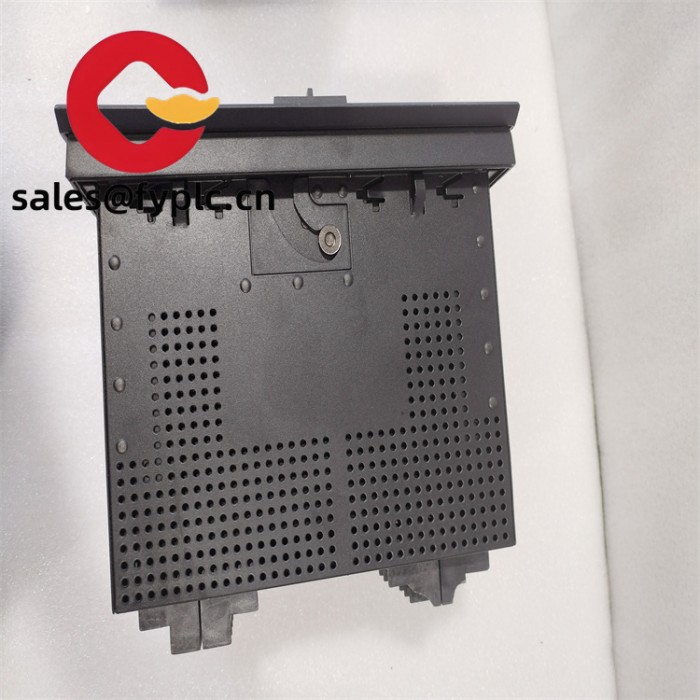

Mounting	19-inch panel-mountable (drawout design for easy maintenance)
Weight	1.0 kg (compact yet durable construction)
Certifications	CE, UL (compliant with global safety and performance standards)
Dimensions	180 x 165 x 215 mm (space-efficient for control panels)
IP Rating	IP20 (protected against solid particles; suitable for indoor use)
Protocols Supported	Modbus RTU, DNP 3.0, IEC 60870-5-103
Analog Outputs	8 x 4–20 mA (for precise control and monitoring)

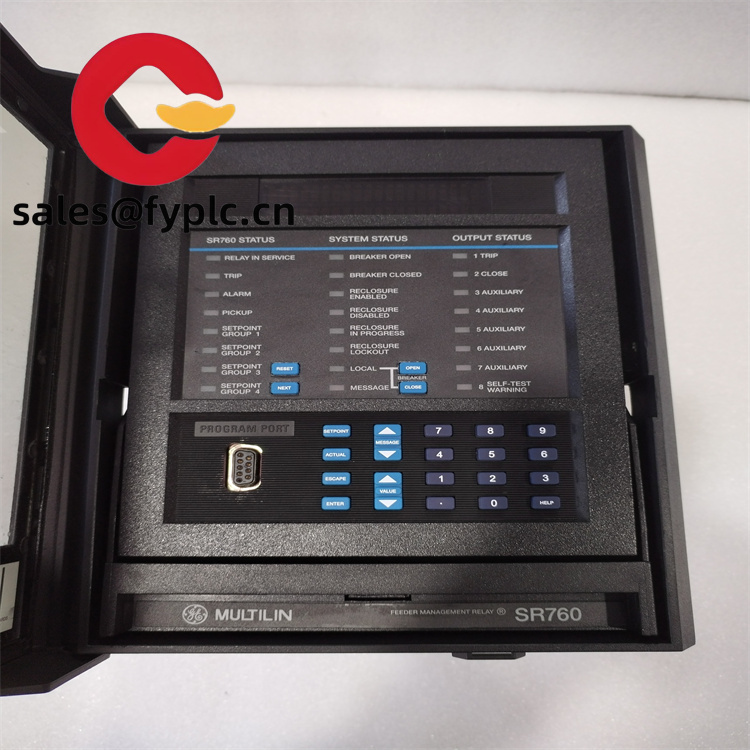

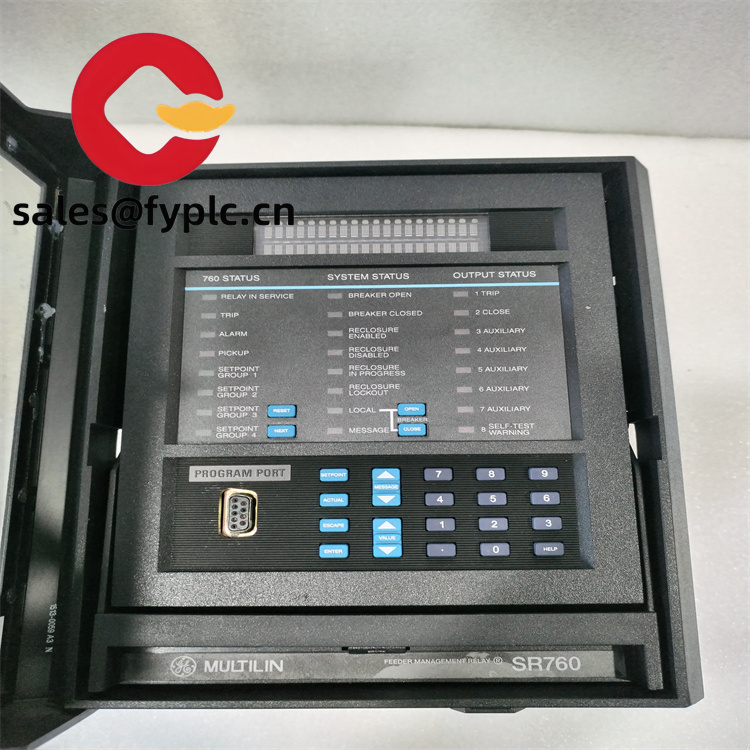

The 760-P5-G5-S5-HI-A20-R stands out for its ability to balance robust protection with user-friendly operation. Its 40-character alphanumeric LCD display provides clear visualization of system metrics, while the intuitive keypad allows quick parameter adjustments. The relay’s recloser feature—unique to the 760 series—automatically assesses fault conditions and restores power when safe, reducing downtime in transient fault scenarios. For example, in a utility substation, this capability can restore service to affected areas within seconds, minimizing revenue loss.
