Description

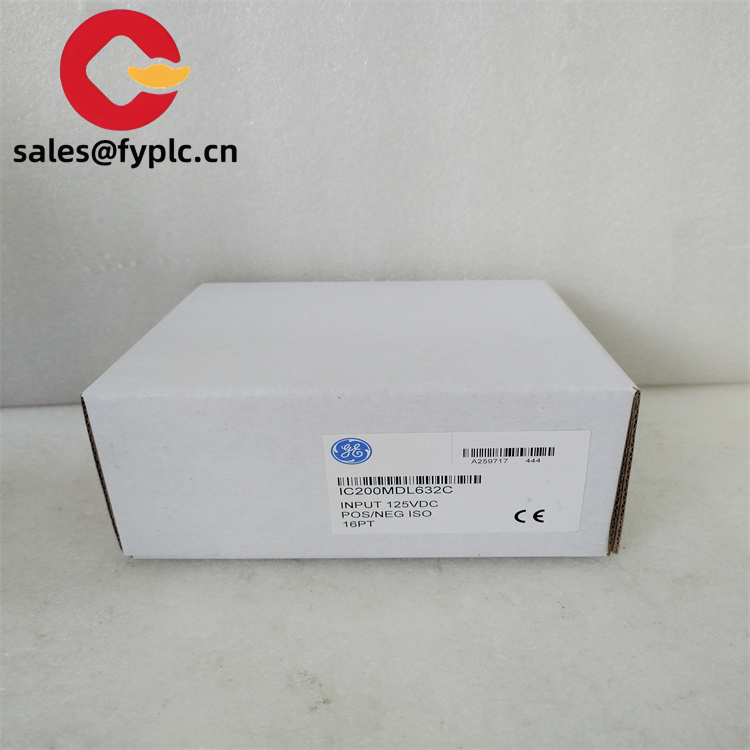

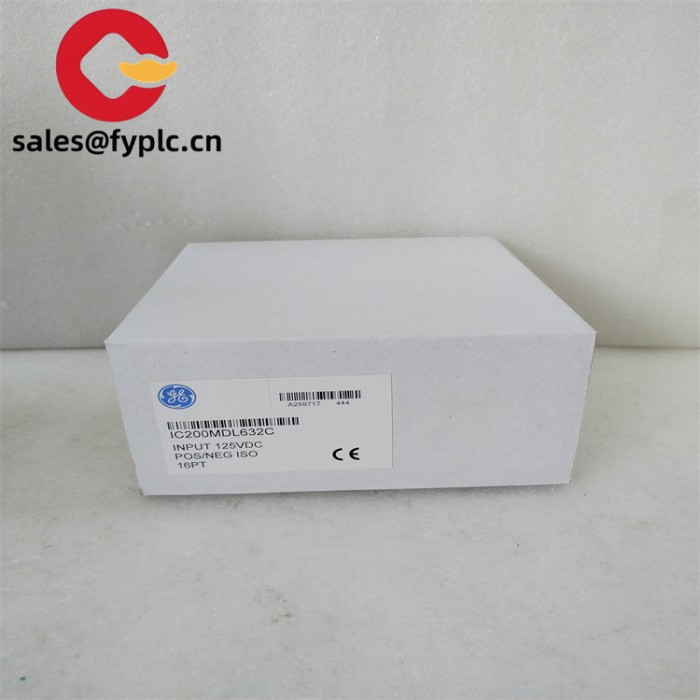

GE IC200MDL632 Programmable Control Output Module Combustion Turbine Card

The GE IC200MDL632 is a ruggedized discrete input module engineered for mission-critical industrial automation systems. Designed as part of GE’s VersaMax series, this module serves as a foundational component in control architectures, delivering reliable signal acquisition for machinery, process lines, and SCADA systems. With support for 125VDC positive/negative logic and 16 isolated input points, the IC200MDL632 excels in environments where precise input monitoring and noise immunity are essential.

Label	Specification
Model Number	IC200MDL632
Brand	GE Fanuc (VersaMax Series)
Type	Discrete Input Module
Input Voltage	125VDC (Positive/Negative Logic)
Operating Temp	-25°C to +70°C
Communication Method	Backplane-powered, CPU-dependent (e.g., RS-485 via NIU)
Mounting	DIN Rail
Weight	2 kg (Shipping Weight)
Certifications	UL, CE, ATEX Zone 2
Dimensions	110mm x 66.8mm x 50mm
IP Rating	IP20 (Dust Protection)
Protocols Supported	Modbus RTU (via CPU/Network Interface Unit)

The IC200MDL632 stands out for its versatility and resilience in real-world industrial settings. Its dual-logic capability allows seamless integration with both sourcing and sinking input devices, eliminating the need for external signal converters. Each of the 16 isolated channels operates independently, reducing cross-talk and ensuring that a fault in one circuit does not affect others—a critical feature in redundant control systems. The module’s intelligent diagnostics, including LED status indicators for each input point, enable operators to quickly identify faults without disrupting operations.

• IC200MDD844 – A mixed I/O module with 16 discrete outputs and 16 inputs, ideal for compact control systems requiring combined signal handling.
• IC200MDL730 – A discrete output module with 8 points and 2A per channel, complementing the IC200MDL632 in actuator-heavy applications.
• IC200ALG230 – An analog input module supporting 4-20mA signals, enabling hybrid control setups with both digital and analog integration.
• IC200CMM020 – A serial communication module that pairs with the IC200MDL632 to enable Modbus RTU connectivity in distributed I/O stations.
• IC200PWR001 – A 24VDC power supply module ensuring stable backplane power for the IC200MDL632 and other VersaMax components.
