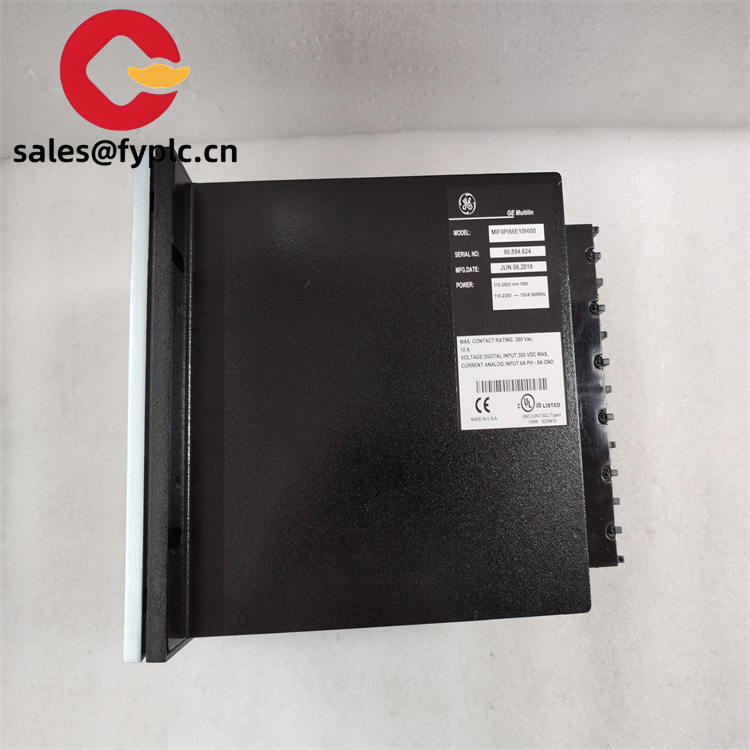

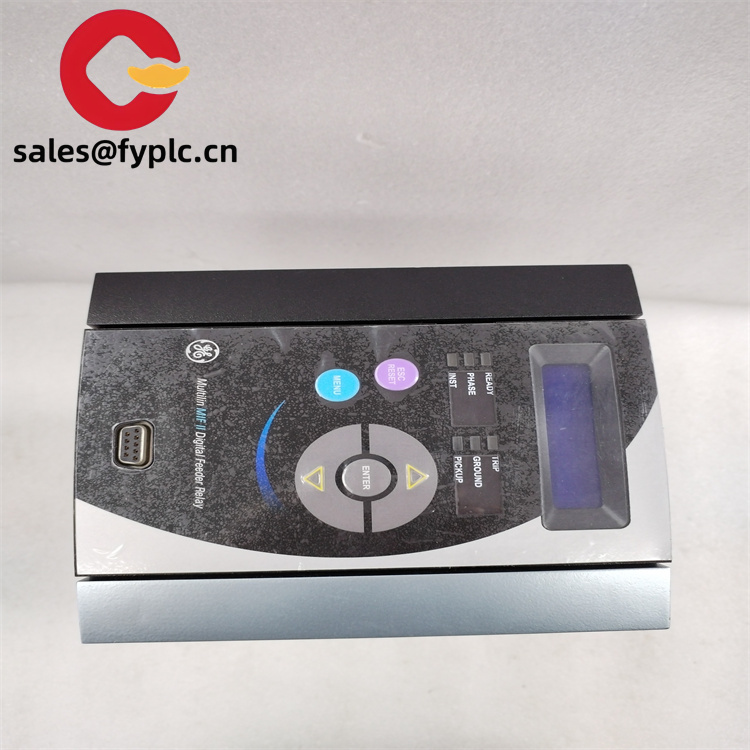

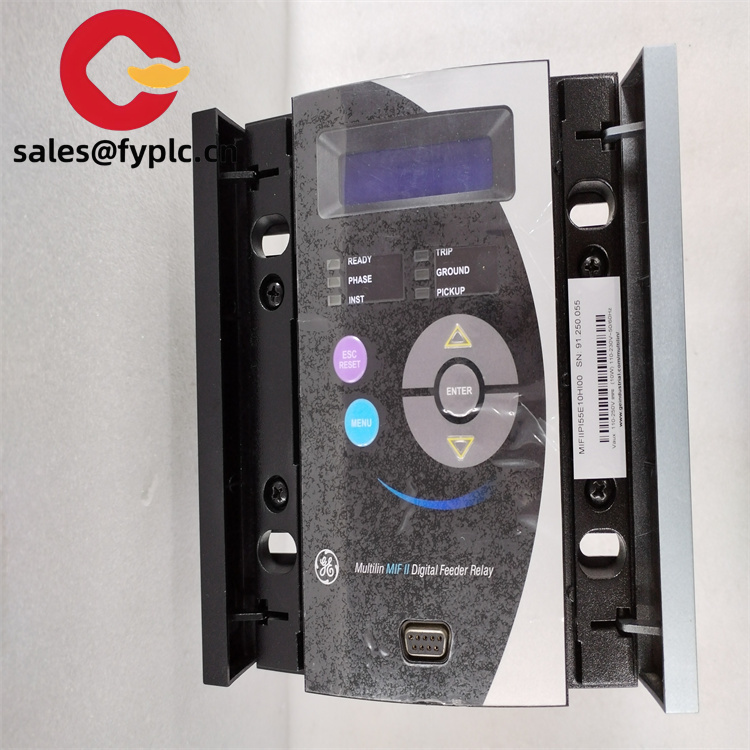

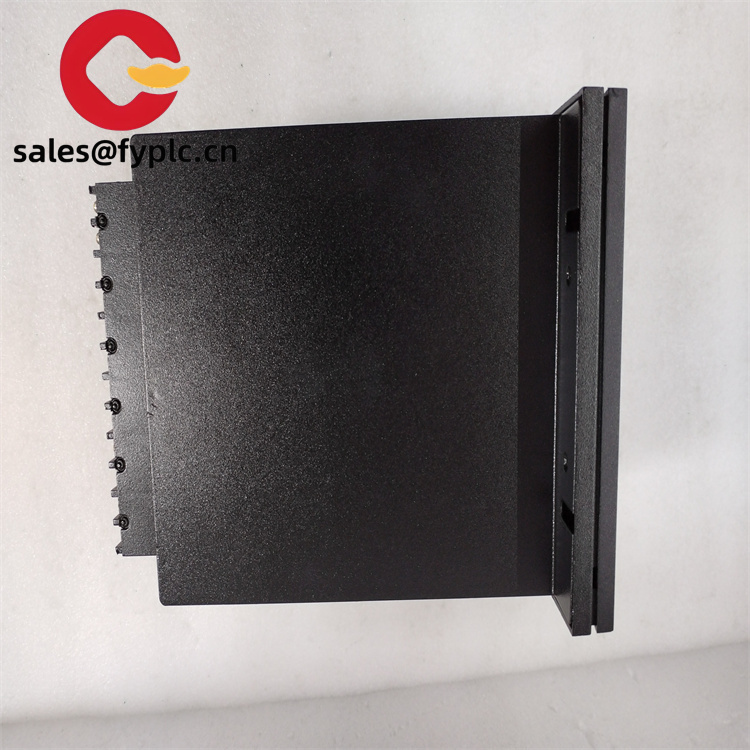

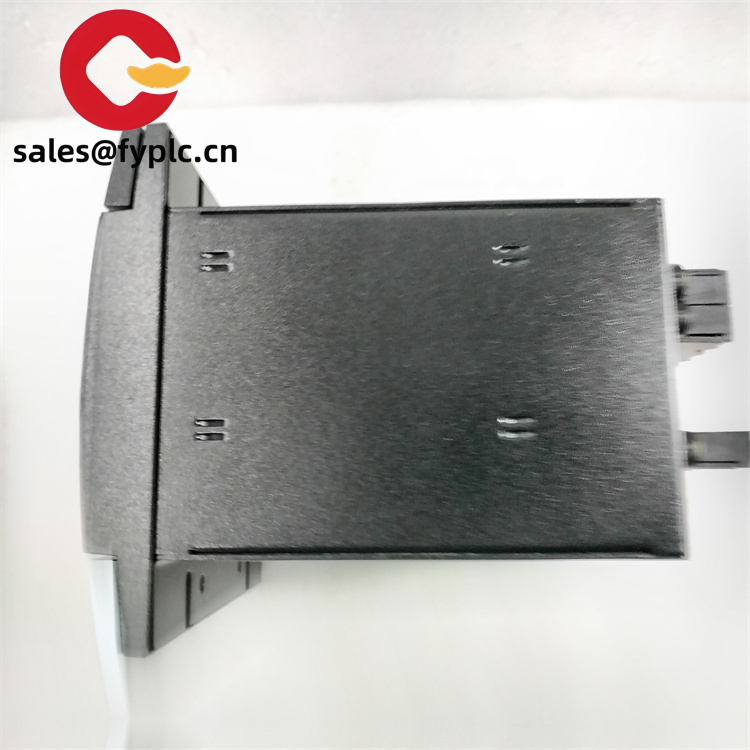

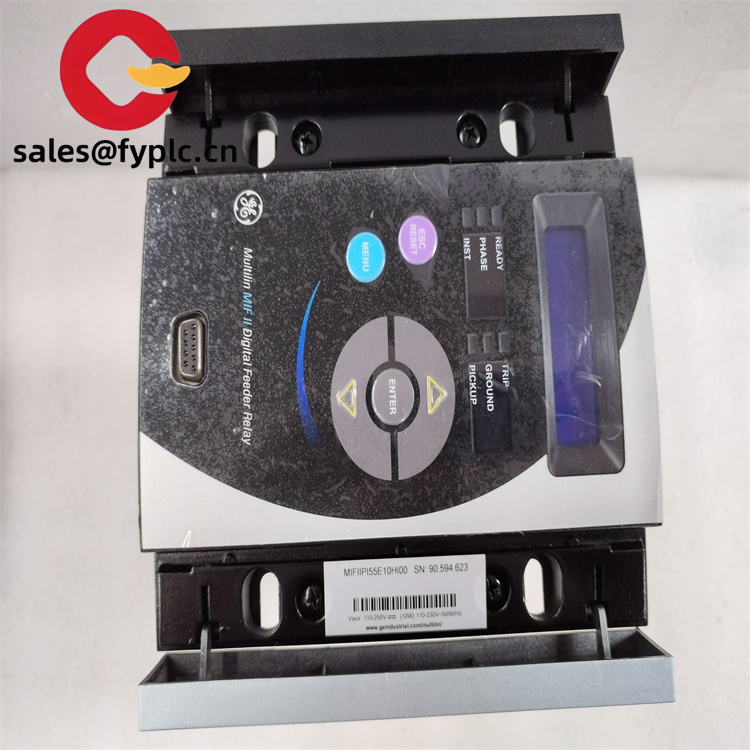

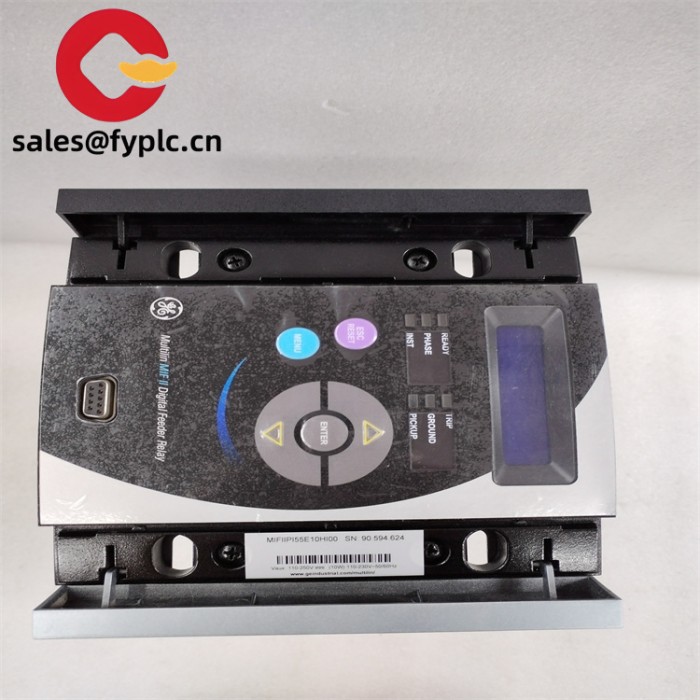

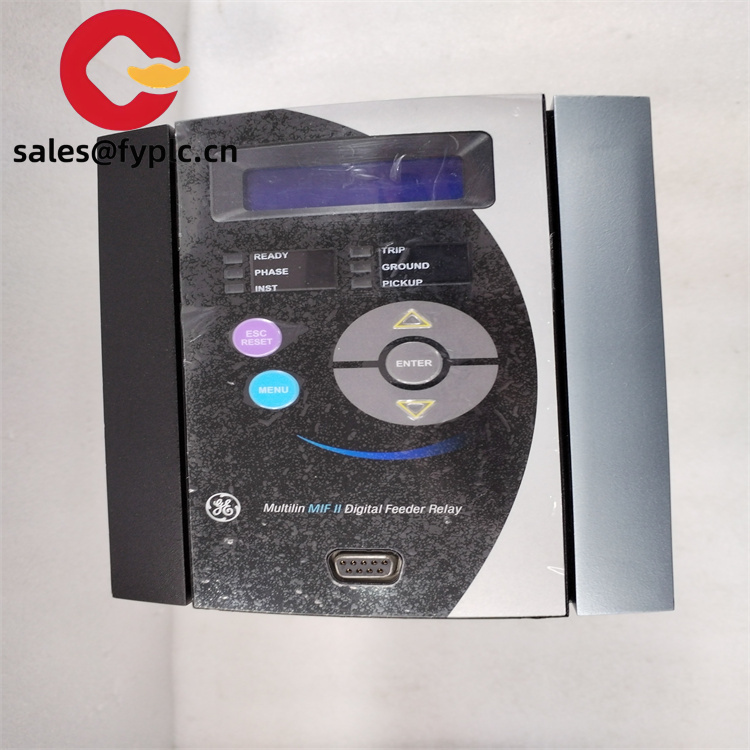

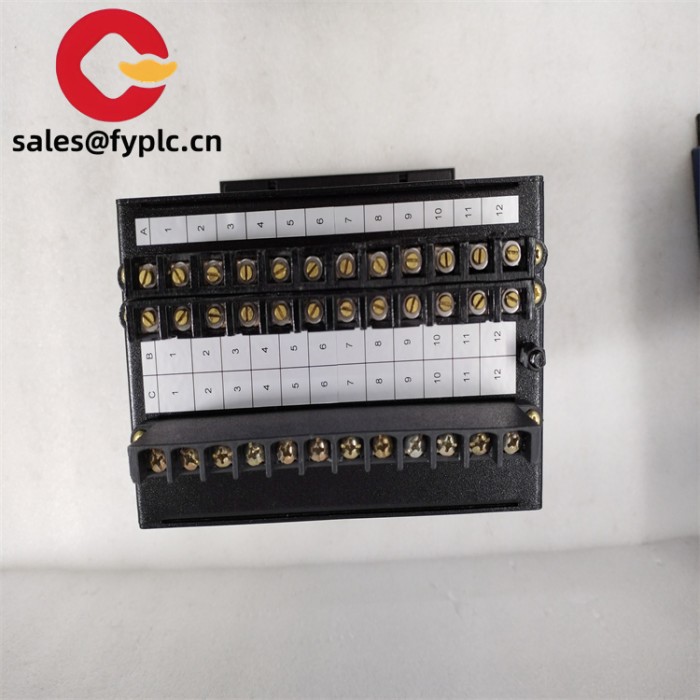

GE MIFIIPI55E10HI00 Steam Turbine Protection Card Digital Feed Relay

MIFIIPI55E10HI00

The GE MIFIIPI55E10HI00 is built to address the challenges of integrating multi-vendor equipment in industrial settings. Its design focuses on flexibility, supporting a wide range of industrial protocols to connect programmable logic controllers (PLCs), human-machine interfaces (HMIs), and supervisory control and data acquisition (SCADA) systems.

Label	Specification
Model Number	MIFIIPI55E10HI00
Brand	GE
Type	Industrial Protocol Converter/Interface Module
Input Voltage	24V DC ±10%
Power Consumption	5W max
Operating Temp	-40°C to 70°C
Supported Protocols	Modbus RTU, Modbus TCP/IP, Profibus DP, Ethernet/IP
Communication Ports	2 x Ethernet (10/100 Mbps), 1 x RS-485, 1 x Profibus DP
Mounting	DIN rail
Weight	320g
Certifications	ATEX, IECEx, UL, CE
Dimensions	90 x 60 x 110 mm (HxWxD)
IP Rating	IP20
Memory	128 MB RAM, 256 MB flash
Processing Power	32-bit ARM Cortex-M4
Latency	<10 ms (protocol conversion)

The GE MIFIIPI55E10HI00 distinguishes itself through a combination of advanced protocol handling and rugged design that excels in demanding industrial environments. Equipped with a 32-bit ARM Cortex-M4 processor, it efficiently manages data conversion between protocols with minimal latency—less than 10 ms—ensuring real-time responsiveness critical for time-sensitive applications like process control and equipment monitoring.

MIFIIPI55E10HI01 – A variant with additional support for BACnet, ideal for building automation integration.

MIFIIPI55E20HI00 – Features 4 Ethernet ports for larger networked systems requiring expanded connectivity.

MIFIIPI55P10HI00 – Specializes in Profibus to Profinet conversion for facilities transitioning to Ethernet-based protocols.
