Yokogawa FLXA21 (FLEXA series two-wire liquid analyzer) Overview
FLXA21 is a two-wire, dual-channel, modular liquid analyzer from Yokogawa’s FLEXA series, replacing the original EXA202 series. It supports four measurements: pH/ORP, conductivity, induced conductivity, and dissolved oxygen (DO). It can be connected to 1 or 2 sensors of the same type, supporting redundancy / dual measurement, loop power supply, HART communication, and is suitable for continuous monitoring in industrial environments.

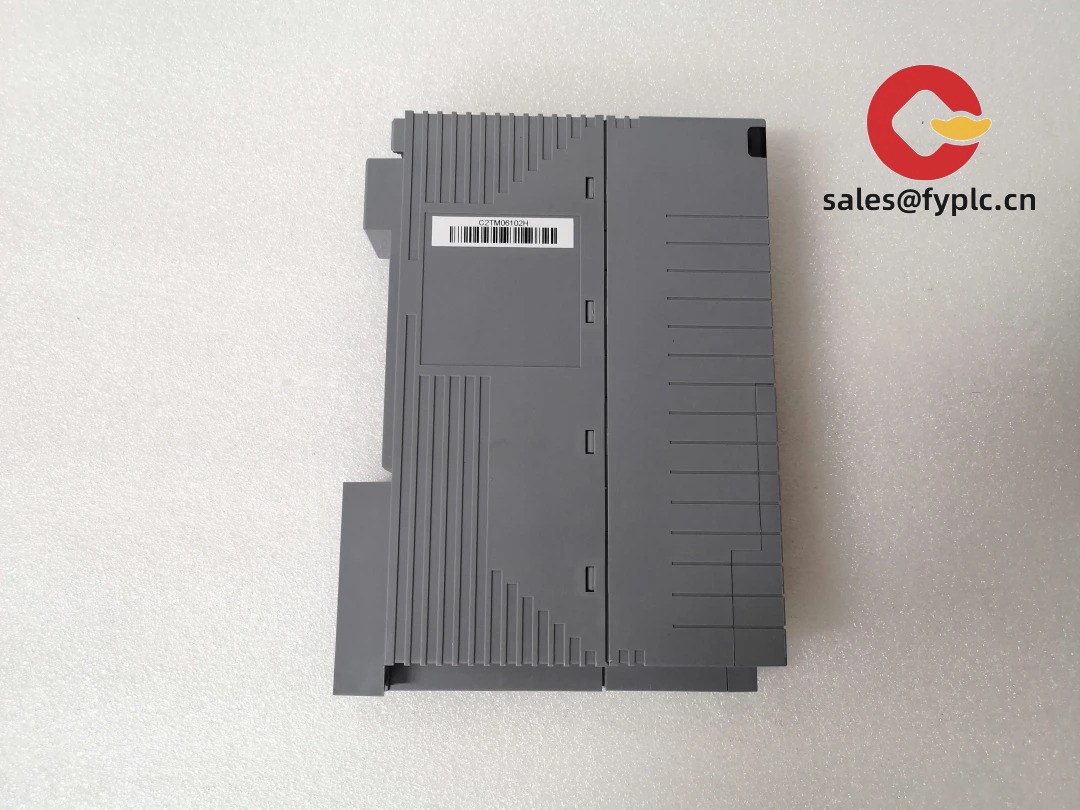

The product images shown are not actual photos. There are still more models that have not been launched yet.For more details or price negotiations, please contact us: Email: sales@fyplc.cn | WhatsAPP: +86 15359458915

Basic parameters
Brand: Yokogawa
Model: FLXA21
Series: FLEXA (Flexible EXA)
Power Supply: Two-wire 24V DC loop power supply (9–32V DC)
Output: 4–20mA DC + bidirectional HART; optional PROFIBUS PA / FOUNDATION Fieldbus
Enclosure: Polycarbonate, IP66 / NEMA 4X, high protection level
Display: LCD touchscreen, multiple parameters on one screen, Chinese / English menus
Weight / Dimensions: Approximately 1.2 kg; 144 × 144 × 88 mm
Explosion-proof: ATEX, IECEx, FM, CSA, NEPSI intrinsically safe certifications
Measurement types and ranges (interchangeable modules)
pH/ORP: pH 0–14; ORP -1500 to +1500 mV; temperature -10 to 105°C
Conductivity (SC): 0.000 μS/cm to 2000 mS/cm; resistivity 0–1000 MΩ·cm
Inductive conductivity (ISC): suitable for high conductivity / high contamination media, no electrode contact
Dissolved oxygen (DO): 0–50 mg/L (ppm); 0–200% saturation; temperature -20 to 150°C
Accuracy (25°C)
pH: ±0.02 pH; ORP: ±1 mV
Conductivity: ±0.5% FS (2 μS/cm – 200 mS/cm)
Dissolved oxygen: ±0.05 mg/L or ±0.8% FS (take the larger value)
Temperature: ±0.3°C (Pt1000)

Typical application
Chemical / Petrochemical: Monitoring of pH, conductivity, and dissolved oxygen in process water, circulating water, and wastewater
Electricity: Quality analysis of boiler feed water, condensate water, and cooling water
Water treatment: Monitoring of municipal sewage and industrial wastewater discharge
Pharmaceutical / Food: Monitoring of pure water, injection water, and cleaning water
Metallurgy / Semiconductor: Measurement of conductivity and resistivity of high-purity water and etching solution
