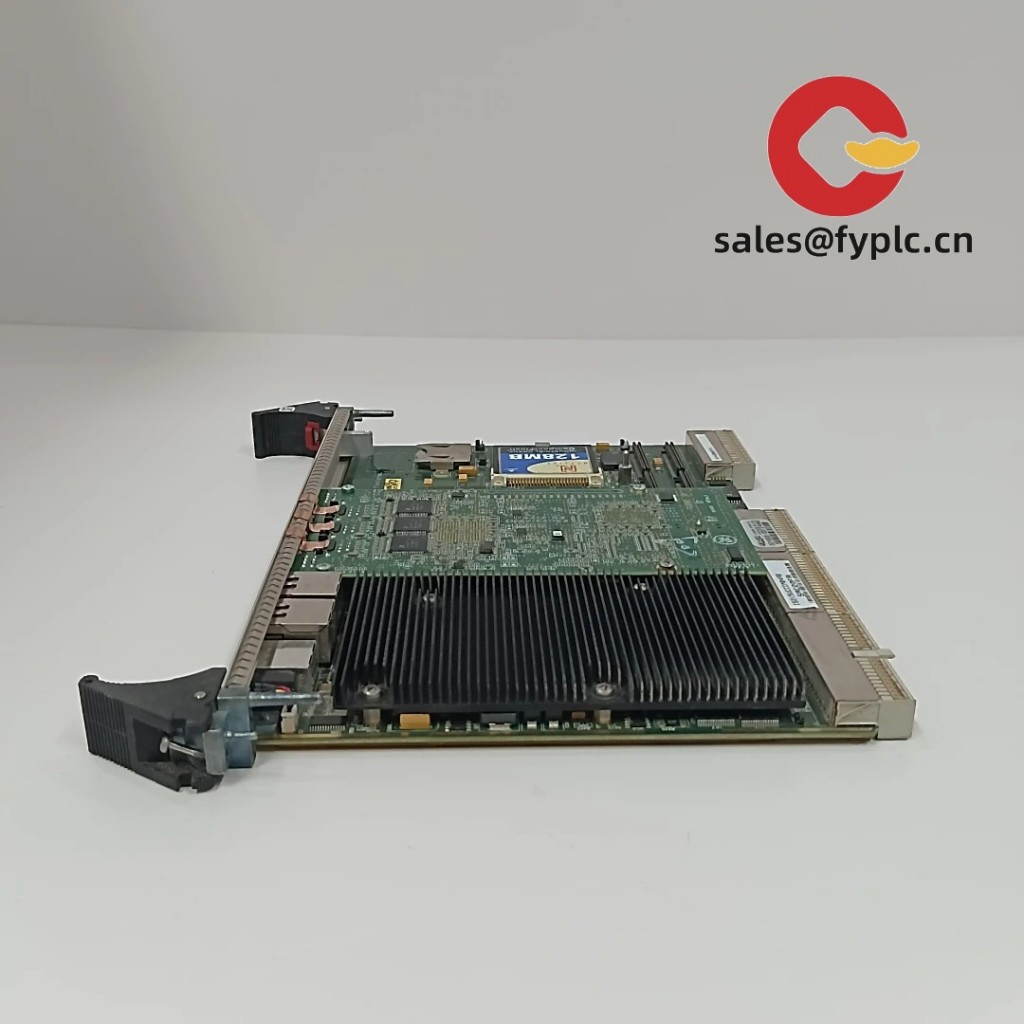

GE IS215UCVEH2A Product Description

Technical Specifications

• Product Model: IS215UCVEH2A
• Brand: General Electric (GE)
• Warranty: One Year
• Input Voltage: 18–36 VDC wide-range rack power supply, 5 VDC internal logic power
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Response Time: ≤2ms closed-loop control algorithm execution cycle
• Protection Class: IP20 (only for installation inside sealed industrial control cabinets)
• Accuracy Class: Class 0.02 for analog process variable calculation and voting logic
• Output Frequency: Max 100Hz real-time task scheduling frequency
• Rated Current Range: 0–8A maximum total board power consumption
• Communication Interface: Dual 10/100Mbps RJ45 Ethernet ports, RS232 serial debug port, VME64 backplane edge connector, ISBUS fieldbus interface
• Supported Protocols: GE Mark VI internal VME bus protocol, EGD, Modbus TCP, Genius bus, ISBUS
• Overload Capacity: 130% transient input voltage surge withstand for 20 seconds
• Dimensions: 210mm (Height) × 178mm (Width) × 50mm (Depth)

Product Overview

The IS215UCVEH2A is a VME form factor main central processor unit developed exclusively for GE Speedtronic Mark VI turbine control system, functioning as the core computing backbone for gas turbines, steam turbines and combined-cycle power generation equipment. Powered by a 300MHz Intel Celeron processor and running on embedded QNX real-time operating system, this module executes core governing algorithms, overspeed protection logic, load distribution calculation and fault diagnosis routines, while managing bidirectional data transmission with all I/O boards, servo valve control cards, local HMI and remote monitoring workstations through the VME backplane and onboard communication ports.

It addresses key reliability risks within legacy turbine control systems, including single-point processor failure causing forced unit tripping, slow cross-module data synchronization, limited protocol compatibility with third-party SCADA systems, and cumbersome firmware upgrading and event log retrieval. The triple modular redundant (TMR) compatible hardware design supports three identical boards working in voting mode to eliminate random hardware faults, and battery-backed real-time clock and non-volatile flash memory permanently store trip records, runtime parameters and configuration programs without data loss during power outages.

Power plant turbomachinery control engineers, thermal power maintenance supervisors, system retrofit contractors and energy asset reliability managers gain direct operational value from this OEM replacement spare part. The standard VME rack slot structure allows direct plug-and-play replacement during scheduled overhaul outages to minimize generator downtime. Front-panel LED status indicators enable intuitive inspection of processor heartbeat, network link, power supply and fault alarms, while conformal coated PCB enhances resistance to cabinet vibration, temperature cycling and minor humidity interference in harsh power station control rooms.
