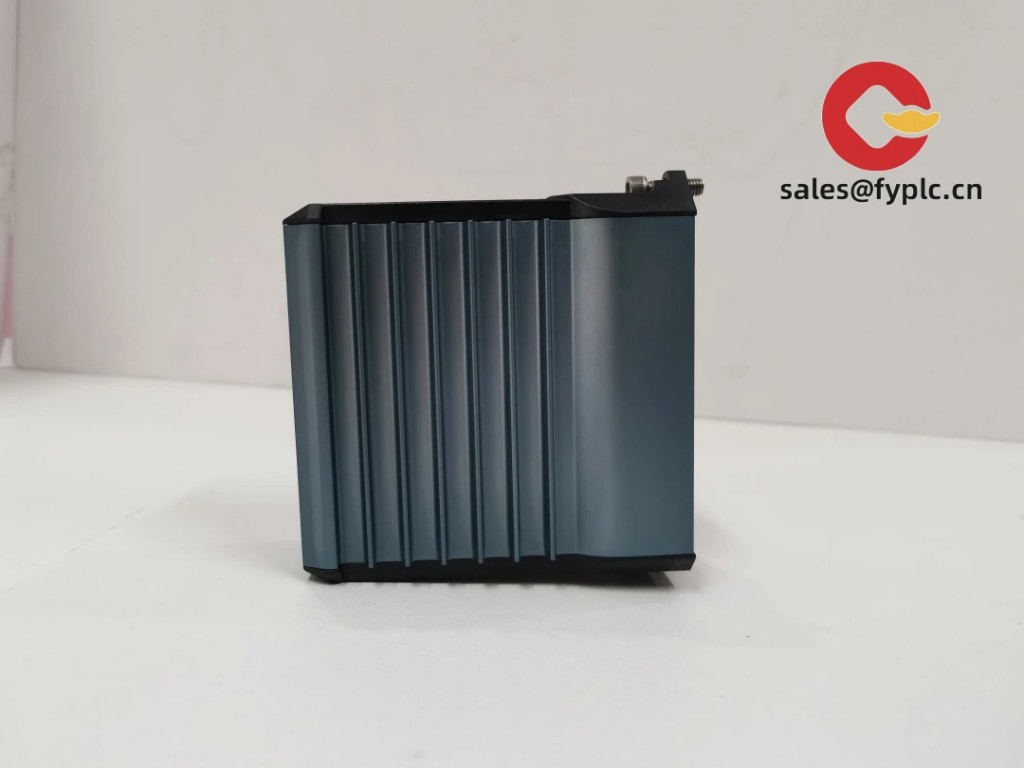

Foxboro FBM242 P0916NG‑ 16‑Channel Externally‑Powered Isolated Discrete Output Module, I/A‑Series Compact200 DCS
2. Product Overview
P0916NG (FBM242) is Compact200 high‑power discrete output fieldbus module for Foxboro I/A‑Series DCS. It provides 16 channels of externally‑sourced isolated discrete outputs, driving high‑current field loads including solenoid valves, contactors and auxiliary actuators. It accepts wide‑range external field power: 15‑60 VDC, 120 VAC/125 VDC or 240 VAC per channel, each channel max 2.25A load capacity. Each channel has galvanic isolation between field side and DCS backplane. Hot‑swappable for online module replacement without rack power‑down. Front‑panel LED array shows module health and channel status. Matched compression‑style termination base is RH916XV. Original manufacturing discontinued, used as spare‑part replacement for petrochemical, chemical and power‑plant legacy DCS racks.
3. Technical Specifications
- Brand: Foxboro (Schneider Electric / Invensys)
- Model: FBM242, part‑number P0916NG
- Warranty: One Year
- Condition: 100% New & Original
- Channels: 16 channel‑isolated externally‑powered discrete output channels
- Field Power Range: 15‑60 VDC / 120 VAC‑125 VDC / 240 VAC (external power source)
- Per‑channel Max Load: 2.25 A
- Isolation: Channel‑to‑backplane galvanic isolation
- Diagnostics: Short‑circuit / over‑load fault detection; front‑panel LED channel status indicators
- Feature: Hot‑swappable, Compact200 rack form‑factor
- Matching Termination Assembly: RH916XV
- Operating temperature: ‑40 °C ~ +70 °C
- Humidity: 5‑95 % RH non‑condensing
- Mounting: Slot‑in installation inside Foxboro Compact200 rack
- Weight: Approx 0.6‑0.8 kg
- Remark: End‑of‑life product, spare‑part‑only for field‑running I/A‑Series systems
- Compatibility: Foxboro I/A Series DCS system
- Compliance: CE, UL‑cUL certified
5. Application Scenarios
- Chemical Plant DCS Cabinet: Drive high‑current solenoid valves and contactors for reactor emergency shutdown and interlock circuits.
- Petroleum Refinery Automation Rack: Control large‑size ESD solenoid actuators and field auxiliary contactors for fractionation‑unit safety loops.
- Combined‑Cycle Power‑Generation Facility: Operate boiler and turbine auxiliary solenoid banks, damper actuators with high‑current demand.
Compact200 hardware summary update：
- FBM201(P0914SQ) ↔ RH916XG
- FBM204(P0914SY) ↔ RH916XK
- FBM207(P0914TD) / FBM207B(P0914WH) / FBM207C(P0917GY) ↔ RH916XL
- FBM208(P0914WM) ↔ RH916XT
- FBM237(P0914XS) ↔ RH916XU
- FBM206(P0916CQ) ↔ RH916CQ
- FBM242(P0916NG) ↔ RH916XV
- Baseplate power supply：P0970WU
- Operator keyboard：P0903CW
- DCS fiber network switch：RH102AN (X440‑G2‑24fx‑GE4)
- FCP270 fieldbus expansion module：P0973CA (FEM100)
